can I get it polished

Discussion in 'Rotating Assemblies' started by grumpyvette, May 22, 2013.

  1. grumpyvette

    grumpyvette Administrator Staff Member

    "HEY grumpy I got a good deal on a new forged 454 crank, but the guy I bought it from purchased it for a project and had it sitting on a shelf for over 5 years and its got a few rusty finger prints on the journals, can it be used?"


    Since its a FORGED crank, Id bring it to a good machine shop, for a close inspection,and measurement ,and get their opinion,a good machine shop that can check it out, and polish it if required.
    you could buy a cast crank for less than $300, a forged crank can easily cost more than double that money, so the $100-$170 most machine shops might charge to recondition the forged crank could easily be worth it, depending on the initial cost of the crank.
    but in the majority of cases it can be polished or cut slightly under size, then it can be polished and will be fine,
    get the machine shop to order the matching size clevitte (H) bearing set, and IF it was my project ID get the matching SCAT connecting rods pistons and rings, bearings, damper ,flexplate or flywheel, etc. and have the whole assembly balanced

    proper magnets trap metallic debris
    SmCo Samarium Cobalt Disc Magnets
    http://www.magnet4less.com/
    [​IMG]
    if you don,t think a proper magnet can trap/hold and prevent metalic debriss from getting into the oil pump and bearings , look at this picture of an oil pan magnet I found posted
    [​IMG]
    Model# SMCO-D8

    Samarium Cobalt Magnets 3/4 in x 1/4 in Disc
    Suitable for high temperature applications
    High Temp Samarium SmCo Cobalt Magnet Discs
    572°F Maximum Operating Temperatu
    re
    Wholesale Price Range:
    $2.99


    adding a couple high heat tolerance magnets to the engine helps trap, the metallic debris,the finer stuff gets easily washed into the sump with the oil flow, any parts failure like that generates BEFORE the abrasive grit gets sucked thru the oil pump and be aware the oil filter won,t always prevent 100% of the grit reaching the bearings.
    IVE typically used several of these magnets in any engine,Ive built, one in the rear oil drain on each cylinder head, one near each lifter gallery drain and 4 in the oil pan sump

    [​IMG]
    http://www.kjmagnetics.com/proddetail.asp?prod=D82SH
    [​IMG]
    BE AWARE magnets heat tolerance differs so ask for and pay attention to the heat limitations, a MINIMUM of 300F for any magnet expected to be used bathed in hot engine oil would be smart
    [​IMG]
    [​IMG]


    related info

    viewtopic.php?f=53&t=2728&p=9886&hilit=polish+journal#p9886

    viewtopic.php?f=38&t=3900&p=28672&hilit=balance#p28672

    viewtopic.php?f=53&t=2726&p=7077&hilit=plastigauge#p7077

    viewtopic.php?f=53&t=141&p=175&hilit=balance#p175

    viewtopic.php?f=53&t=510&p=1158&hilit=cross+drill#p1158

    viewtopic.php?f=53&t=204

    viewtopic.php?f=51&t=6162&p=19172&hilit=main+caps+dowels#p19172

    viewtopic.php?f=54&t=2187

    viewtopic.php?f=51&t=4324&p=11404&hilit=bevel+journal#p11404

    viewtopic.php?f=53&t=852&p=1311&hilit=bevel+journal#p1311

    when you get the crank polished take the time and effort to clean out any cross drill oil feed passages and to very carefully de-burr the passage opening edges, as this is a very commonly overlooked issue, below is what at first looks like a perfectly polished crank, with oil feed passages to the rod bearings,
    but the deep scratches the oil feed passage openings left in the rod bearing surfaces bare witness, after a single rotation, during a trial assembly show they are HARDLY burr free or ready for use, and obviously he failed to check each rod bearing during the assembly process, and probably ignored , what was very likely un-even or rather excessive resistance to the crank rotation. which should never exceed about 40 ft lbs even with all 8 rod bearings and pistons installed

    [​IMG]
    [​IMG]
    [​IMG]

    http://www.engineprofessional.com/TB/EPQ410_10-18.pdf
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited by a moderator: Dec 25, 2015
  2. grumpyvette

    grumpyvette Administrator Staff Member

    very clear detailed pictures , taken in good light from several angles would be very helpful, but I suspect from the very limited info that some polishing time with a long strip of some 800 grit wet/dry sand paper followed by 1200 grit paper used under a section of leather belt for support , will remove the burrs , BTW always polish the journal surface away from the direction or rotation,and use some WD40 on the paper,and it won,t take more than 20 passes (10 with each grit) to do it if its damaged lightly enough that you don,t need a machine shop to clear it up, that might get you back operational,but be darn sure to clean carefully to remove micro grit, that might be left on the surface, but you must know a few things to do it correctly
    Crankshaft Grinding and Polishing



    HERES WHAT A MACHINE SHOP CRANK POLISHING BELT LOOKS LIKE


    [​IMG]
    [​IMG]

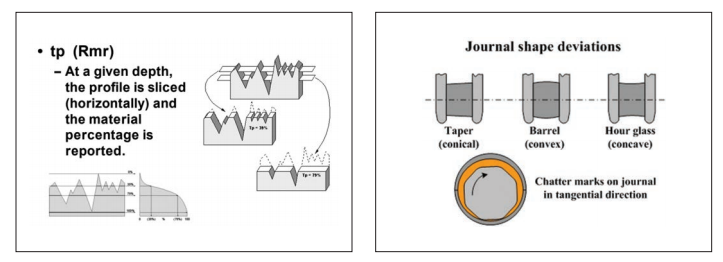

    care must be taken to ensure the journal does not get polished unevenly, tapered or egg shaped


    [​IMG]
    journal surface must be polished so micro burrs face away from the direction of rotation on bearing surface for max durability on bearing surface, burrs far to small too see or feel still induce wear
    [​IMG]
    [​IMG]
    [​IMG]

    Directions for crankshaft grinding and polishing
    Crankshaft journal surfaces should be ground and polished to a surface finish of 15 micro inches roughness average Ra or better. Journals on highly loaded crankshafts such as diesel engines or high performance racing engines require a finish of 10 micro inches Ra or better.

    The above is a simple straight forward specification which can be measured with special equipment. However, there is more to generating a ground and polished surface than just meeting the roughness specification. To prevent rapid, premature wear of the crankshaft bearings and to aid in the formation of an oil film, journal surfaces must be ground opposite to engine rotation and polished in the direction of rotation. This recommendation and examination of the following illustrations will help make the recommendation more clear.

    Metal removal tends to raise burrs. This is true of nearly all metal removal processes. Different processes create different types of burrs. Grinding and polishing produces burrs that are so small that we can't see or feel them but they are there and can damage bearings if the shaft surface is not generated in the proper way. Rather than "burrs", let's call what results from grinding and polishing "microscopic fuzz." This better describes what is left by these processes. This microscopic fuzz has a grain or lay to it like the hair on a dog's back. Figure 1 is an illustration depicting the lay of this fuzz on a journal. (Note: All figures are viewed from nose end of crankshaft.)

    [​IMG]
    The direction in which a grinding wheel or polishing belt passes over the journal surface will determine the lay of the micro fuzz.

    In order to remove this fuzz from the surface, each successive operation should pass over the journal in the opposite direction so that the fuzz will be bent over backward and removed. Polishing in the same direction as grinding would not effectively remove this fuzz because it would merely lay down and then spring up again. Polishing must, therefore, be done opposite to grinding in order to improve the surface.

    In order to arrive at how a shaft should be ground and polished, we must first determine the desired end result and then work backwards to establish how to achieve it. Figure 2 depicts a shaft turning in a bearing viewed from the front of a normal clockwise rotating engine. The desired condition is a journal with any fuzz left by the polishing operation oriented so it will lay down as the shaft passes over the bearing (Figure 2).

    [​IMG]
    The analogy to the shaft passing over the bearing is like petting a dog from head to tail. A shaft polished in the opposite direction produces abrasion to the bearing which would be like petting a dog from tail to head. To generate a surface lay like that shown in Figure 2, the polishing belt must pass over the shaft surface as shown in Figure 3.

    [​IMG]
    The direction of shaft rotation during polishing is not critical if a motorized belt type polisher is used because the belt runs much faster than the shaft. If a nutcracker-type polisher is used, then proper shaft rotation must be observed (Figure 4). Stock removal during polishing must not exceed .0002" on the diameter.

    [​IMG]
    Having determined the desired surface lay from polishing, we must next establish the proper direction for grinding to produce a surface lay opposite to that resulting from polishing. Figure 5 shows the grinding wheel and shaft directions of rotation and surface lay for grinding when viewed from the front or nose end of the crankshaft. This orientation will be achieved by chucking the flywheel flange at the left side of the grinder (in the headstock). Achieving the best possible surface finish during grinding will reduce the stock removal necessary during polishing.

    [​IMG]
    The surface lay generated by grinding would cause abrasion to the bearing surfaces if left unpolished. By polishing in the direction shown in either Figure 3 or 4, the surface lay is reversed by the polishing operation removing fuzz created by grinding and leaving a surface lay which will not abrade the bearing surface.

    Nodular cast iron shafts are particularly difficult to grind and polish because of the structure of the iron. Nodular iron gets its name from the nodular form of the graphite in this material. Grinding opens graphite nodules located at the surface of the journal leaving ragged edges which will damage a bearing. Polishing in the proper direction will remove the ragged edges from these open nodules.

    All of the above is based on normal clockwise engine rotation when viewed from the front of the engine. For crankshafts which rotate counterclockwise, such as some marine engines, the crankshaft should be chucked at its opposite end during grinding and polishing. This is the same as viewing the crank from the flanged end rather than the nose end in the accompanying figures.

    Unlike many engine bearings available today, Clevite engine bearings utilize a superior Clevite TriMetal™ material design. Stamped "Clevite®," this design incorporates the strength of a copper-lead alloy layer on a steel back and finally, a precision electroplated white metal "babbitt" third layer. TriMetal™ is an ideal bearing design producing good to excellent characteristics when judged for conformability, embedability, slipperiness and fatigue resistance.

    We constantly monitor the function and operation of our full line of bearings, staying in touch with any changes or developments that new engines may require. And that translates into bearings that are better for your engine. If you're looking for the engine bearings that set the standards, specify Clevite®. Because you won't settle for second best.



    The Moly platelets that make up the protective layers on your engine surfaces slide across one another very easily. Instead of metal rubbing against metal, you have Moly platelets moving across one another protecting and lubricating the metal engine parts.
    [​IMG]
    [​IMG]
    MOLY adds a great deal of lubrication to sliding metal surfaces , as it embeds in the micro fissures in the metallic surface's

    [​IMG]



    This coating effectively fills in the microscopic pores that cover the surface of all engine parts, making them smoother. This feature is important in providing an effective seal on the combustion chamber. By filling in the craters and pores Moly improves this seal allowing for more efficient combustion and engine performance.
    [​IMG]
    This overlapping coating of Moly also gives protection against loading (perpendicular) forces. These forces occur on the bearings, and lifters. The high pressures that occur between these moving parts tend to squeeze normal lubricants out.
    related info
    SPRAYING ALL VALVE TRAIN and BEARING SURFACE COMPONENTS DURING ASSEMBLY WITH MOLY REDUCES FRICTION
    [​IMG]
    [​IMG]
    [​IMG]
    pre-spraying all bearing and valve train components with a moly based spray, helps embed micro moly lubricants in the metallic surface micro fissures , a good paste lube like cranes assembly lube over the spray surface helps insure a good lubricant surface coating, that is far stronger than just the ZINC and PHOSPHATES in oil
    [​IMG]
    [​IMG]



    viewtopic.php?f=53&t=2728&p=9886&hilit=polish+journal#p9886

    viewtopic.php?f=53&t=2726&p=7077&hilit=plastigauge#p7077

    viewtopic.php?f=53&t=852&p=39417&hilit=thrust+bearing#p39417

    viewtopic.php?f=53&t=619&p=37676&hilit=thrust+bearing#p37676

    viewtopic.php?f=53&t=6352&p=20012&hilit=assembly+lube#p20012

    viewtopic.php?f=53&t=2726&p=17093&hilit=assembly+lube#p17093

    viewtopic.php?f=50&t=342&p=43046&hilit=torque+wrench#p43046
    yes you generally need to verify clearances and journal taper and measure bearing journal roundness but in many cases a bearing thats slightly tighter can match the journals required clearances without going to a .010-.020,.030 under size.
    Id also point out that occasionally guys forget to clean out the cross drilled oil passages resulting in metallic debris embedded in the bearings so clean carefully after any crank journal polish work
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    HERES A PICTURE, main caps are usually cast with a arrow showing the direction they face but seldom number stamped to indicate the correct location in the block and its best to do that during the dis-assembly too insure they go back in the correct location.
    [​IMG]
    [​IMG]

    http://www.harborfreight.com/36-piece-14-in-steel-letternumber-stamping-set-60671.html

    [​IMG]

    its usually standard practice to lightly stamp the outward facing rods and rod caps and main journal caps with the cylinder number or location they will be or are located in and a matched stamped number on the oil pan rail of the block, its also useful to stamp the main caps on one edge and a matched stamped number on the oil pan rail of the block, indicating which direction each main cap faces and its location during the original DIS-assembly process or first engine assembly to prevent potential screw-ups during later builds or refresh builds.
    just make the stamped number clearly readable but not deeply stamped as you don,t want to induce potential stress risers that might weaken the connecting rods

    [​IMG]
    related info, worth reading thru

    viewtopic.php?f=53&t=9214&p=43456&hilit=polish+journal#p43456

    viewtopic.php?f=53&t=9955&p=38385&hilit=polish+journal#p38385

    viewtopic.php?f=53&t=2726&p=26599&hilit=polish+journal#p26599

    viewtopic.php?f=53&t=852&p=21611&hilit=polish+journal#p21611

    viewtopic.php?f=50&t=7604&p=25728&hilit=number+stamp#p25728

    viewtopic.php?f=53&t=204&p=12785&hilit=number+stamp#p12785

    viewtopic.php?f=50&t=1738&p=4333&hilit=number+stamp#p4333

    viewtopic.php?f=53&t=247&p=7387&hilit=number+stamp#p7387

    viewtopic.php?f=53&t=1478&p=3331&hilit=number+stamp#p3331

    viewtopic.php?f=53&t=2726

    Last edited by a moderator: Jul 2, 2018
  3. Grumpy

    Grumpy The Grumpy Grease Monkey mechanical engineer. Staff Member

    https://goodson.com/blogs/goodson-gazette/inspecting-measuring-the-pistons-pins-connecting-rods

    http://garage.grumpysperformance.com/index.php?threads/measuring-crank-bearing-journals.5478/

    https://www.motor.com/magazine-summary/performance-perspectives-connecting-rod-inspection/

    https://www.dragzine.com/news/tips-for-sizing-your-connecting-rods-correctly-from-callies/

    https://mechanics.stackexchange.com/questions/51488/measuring-crank-and-rod-journals




    [​IMG]
    [​IMG]
    https://www.msdiscounttool.com/catalog/product_info.php?csv=gg&products_id=104046
    [​IMG]
    https://www.summitracing.com/parts/...MIwbuI4oP14AIVnrbACh1mLQA2EAQYBSABEgKanfD_BwE


    https://www.tracxtar.com/2018/07/23/engine-assembly-the-bottom-end/

    • ENGINE ASSEMBLY: THE BOTTOM END
    [​IMG]
    AUTOMOTIVE
    ENGINE ASSEMBLY: THE BOTTOM END
    view

    By user666 / July 23, 2018
    [​IMG]

    We’ll get into the actual meat and potatoes of engine assembly: measuring main bearing clearances, measuring rod bearing clearances and checking crankshaft thrust dimensions. In the process, the crankshaft will be installed, the main bearing caps will be torqued and the bottom end will be readied for reciprocating component (rod, wrist pin and piston) installation.

    Sounds complex, but the truth is there’s nothing fancy here except persnickety measurements, attention to cleanliness and plenty of patience. Bottom line: If you can muster up the persistence for detail, you can handle the job. It’s that simple. Here’s how it’s done.

    Measuring the mains
    The first step is to measure the crankshaft main bearing journal diameters. This is best accomplished on your workbench. We use a micrometer to check the dimensions in an “around the clock” pattern on each journal. What that means is that we check each of the main journals in multiple locations.

    To properly use a micrometer, slowly tighten the spin wheel until the mic contact points meet the crank journal. Spin the bottom thumbwheel (ratchet stop) until you feel three clicks on the micrometer as it contacts the journal (keeping in mind you don’t want to scratch the journal surface either). Double-check to ensure that the mic contact points are touching the journal evenly (not cocked to one side). Lock the micrometer and check the reading. Record each reading as you go around the journal. In essence, you’re accomplishing two things: You’re checking for crankshaft main journal out of round (if the readings from different points differ) and you’re also checking the outside diameter of the crankshaft journal.

    Follow the same steps around each main bearing journal and record each set of figures for each journal. On a typical modern V8, you’ll have five bearing journals to measure on the crankshaft.

    There are two different times you can measure rod journal dimensions: right after you’ve finished checking the mains or later, once the crank is installed in the engine. If you’re confident the crank was properly machined, you can save those steps for later (which is what we’re doing here). If you’re not so confident regarding the crank accuracy, it’s best to measure it now. That way, if the dimensions are off you don’t have to go any further on the engine assembly job.

    Finally, when using a micrometer, keep in mind that heat has an effect on readings. Never carry a mic around in your pocket and don’t hold it for excessive amounts of time. Additionally, when storing the micrometer, be sure the measuring contact points are left open so that temperature variations do not stress the instrument.

    Next up, each main bearing has to be installed, and the assembled diameter has to be checked. The bearings should be cleaned and dry. We start at the front and work our way backward, beginning with main bearing number one (bearing caps are usually numbered and marked with an arrow facing forward). The idea here is to install the bearing, torque the bearing cap and measure the inside diameter of the bearing bore with the bearing installed. More detail below.

    Install the main bearings
    To install the main bearing, you’ll note there are tangs on the bearing insert (in the old days, they were sometimes called bearing “shells”). Most engines also have an oil hole in the block that coincides with the upper bearing insert. This oil hole links the main bearing to the main bearing supply machined within the cylinder block. Only one-half of the bearing set (inserts) per main journal cap will be equipped with an oil hole. It’s essential you get them right (hole in the bearing coinciding with the hole in the cylinder block-machined bearing web).

    Begin the installation with the tang side of the bearing insert. Install in the block and then push the opposite edge into the main bearing bore. Repeat the process in the accompanying main bearing cap. Be sure the bearing is fully seated. You’ll note there is a small amount of bearing insert extending past the main cap as well as past the cylinder block bearing bore. This is the bearing “crush.” When the main bearing cap bolts are torqued in place, the bearing “crushes” into the outside of the bore. This ensures the bearing does not spin or turn during engine operation. At this time, you only need to install bearings on the number one main.

    In most engines, the main bearing caps are numbered (the exception is usually the thrust bearing cap since it’s far different than any of the other bearing caps). Additionally, many main caps have an arrow that points forward: It goes toward the front of the engine. This arrangement places all of the bearing tangs on one side.

    Oil the threads for the main cap bolts. We generally use good old-fashioned SAE 30 conventional (non-synthetic) for this purpose. Install the front cap (with bearing inserts in place). Thread the bolts in by hand and then using a soft face hammer (dead blow plastic or brass), seat the cap against the block. Torque the cap bolts to the factory-recommended specification. Generally, we use three equal steps (for example, 25, 50 and 75 foot-pounds), alternating between the bolts in each of the steps. On four bolt main caps, we start on the inner caps first then work outward. This tends to tighten the bearing cap evenly.

    Check the clearances
    Using an inside micrometer or dial bore gauge, measure the bearing inside diameter. Much like the crankshaft, we tend to measure the bearings (within the bore) in several different locations. Subtract the crankshaft outside diameter (measured previously) for journal number one from the bearing bore diameter. That resulting figure is the bearing clearance. Check the figure against manufacturer specifications. If the bearings are out of spec, you’ll have to juggle bearing halves (you can buy slightly under- and oversize bearings for popular engines) to come up with the appropriate clearance figures.

    Repeat the entire process for all of the main bearings and caps. Once complete, remove all of the caps. Keep each cap and bearing intact. Leave the lower bearings in the cylinder block.

    Installing the crankshaft
    Depending upon the engine you have, it can be equipped with either a one-piece or two-piece rear main seal. No matter what format, it must be installed next. In either case, install the seal so that the lip faces inward (toward the engine). Clean the seal groove with a shot of brake cleaner and a fresh shop towel. The groove must be clean and oil free for the sealant to work properly. Apply a small amount of RTV silicone sealer on the seal groove in both the cylinder block and the main cap. Wipe up any excess (a wet finger works perfectly). Install the bottom half of the seal, or in the case of a one-piece seal, gently tap into place over the crankshaft (you can use a seal driver, but most seals easily tap on).

    Apply motor oil (the same SAE 30 oil works) to the main bearings. Alternatively, you can use engine assembly lube (shown in the photo). It sticks with more tenacity than oil, providing more protection during the initial startup. Apply a small amount of engine oil or assembly lube to the main seal lip. Lower the crankshaft into place.

    Reinstall the number one cap and the thrust bearing cap only. Seat the caps (using a soft face hammer). Install the bolts by hand, but don’t tighten.

    Checking thrust clearance
    Using a soft face hammer (plastic dead blow or brass), tap the crank nose (moving the crankshaft rearward). Install a dial indicator to read on the crank flange or nose of the engine. Using a large (clean) screwdriver or pry bar, move the crankshaft backward. Zero the gauge on the dial indicator. Pry the crankshaft forward and check the reading. Record the measurement. Next, torque the caps to specs and repeat the process. Compare the measurements. If the second reading is less than the first, there’s a chance the rear main cap shifted and the thrust surfaces are misaligned. Shift the cap and recheck. By the way, this doesn’t regularly occur, but if it does, you might have to check and shift the rear main cap a couple of times to get it right. Compare your final thrust clearance figure to the manufacturer specifications. Finally, install the balance of the caps (and bearings) and torque to specifications.

    Checking the rod clearances
    Beginning at the front of the engine, use your micrometer to check the overall diameter of each of the connecting rod journals on the crankshaft. The process is exactly the same as we used to check the main bearing clearances. Check each journal in multiple locations and record those figures.

    You can now check the rod bearing clearances. Use the same process we used for the main bearing caps: Install the bearings with the tabs aligned. You can match the numbers on the rods or check to ensure the chamfers are all on the same side and install the caps. The bearings (and caps) are aligned tang to tang (not offset). Using engine oil as the lubricant, torque the cap bolts to the recommended figure and measure the bearing ID with a bore gauge.

    Subtract the journal diameter from each of those figures to determine the clearance. Repeat the process for all of the connecting rods. Like the case with the main bearings, if the clearances are out of spec, you can often correct the dimensions by juggling bearing inserts.

    Once all of the rod clearances have been checked, you can loosen the rod bearing cap hardware, but don’t completely disassemble. You need to keep the rods and their respective bearings in order. Wrap the engine in the plastic storage bag. You’re done with this segment.

    In the next part of our series, we’ll show you how to file-fit piston rings to each cylinder, how to assemble rods onto pistons, and, ultimately, how to install all of the pistons and rods in the engine short block.

    Tools used for this part of the assembly:

    • Dial bore gauge
    • Dial indicator and magnetic base
    • Two-third-inch micrometer
    • Half-inch drive torque wrench
    • Three-quarter-inch and half-inch drive sockets
    • Seven-sixteenths-inch 12-point half-inch driver socket
    • Large pry bar
    • Deadblow hammer
    Using “Plastigage”
    If you don’t have access to a dial bore gauge (or inside micrometer set) or an appropriate outside micrometer, you can still check bearing clearances with “Plastigage.” Plastigage is a special extruded plastic thread (think of an advanced version of kid’s plastic modeling clay or Silly Putty). The difference though is the stuff is engineered so that it includes controlled crush properties. It’s available at most auto parts stores, in various different crush dimensions to coincide with the clearance figures for your engine.

    To use it, loosen the bolts of bearing cap number one. Remove the bolts along with the cap (and bearing). Wipe all traces of oil from the crankshaft and bearing surfaces (we use a paper towel).

    Next, tear off a short piece of Plastigage (it’s sold in a long, thin paper envelope). Place a section of Plastigage on the center of the crankshaft journal, oriented front to back or diagonally.

    Install the bearing cap and bolts. Torque to specifications, then loosen the bolts once more and remove the cap. You’ll find the Plastigage has crushed on the crankshaft journal.

    Using the envelope the Plastigage was packaged in, you’ll find a scale on one end. Compare the scale to the crushed Plastigage on the bearing journal. This is the clearance figure. If the clearances are within specifications, you can move forward: Clean the journal (it wipes off with a towel soaked in brake cleaner) and repeat the process for all bearing journals. You can also use the same format for checking connecting rod bearing clearances.

    [​IMG]

    The first step in determining bearing clearances is to measure the crankshaft main journal diameter. Here we’re using an outside micrometer to get the measurement. The article text offers details on how it’s done and tips on using a mic. Check all crankshaft main bearings and record your figures.

    [​IMG]
    Next, install the main bearing insert for journal number one in the cylinder block. Note the orientation. The oil hole in the bearing half aligns with the oil hole in the main bearing.



    [​IMG]
    The matching bearing insert for the main cap is installed next. Because of the need for bearing crush, the insert will seem marginally too big, and a minute portion of the insert will protrude past the edge of the cap (the same applies to the insert in the block).

    [​IMG]
    Install the cap and torque the main bearing cap to specs. Typically, we begin with the inside bolts and work outward. In addition, it’s best to use three steps on each of the fasteners in order to “sneak up” on the final torque figure.

    [​IMG]
    With the bearing installed in the cap and the fasteners torqued to specifications, you can measure the main bearing inside diameter. Here, we’re using a B&B Performance dial bore gauge for the measurement. Subtracting the crankshaft journal figure from this measurement provides the bearing clearance. Record all measurements and repeat this process for all bearings except the rear main.

    [​IMG]
    Before measuring the rear main bearing inside diameter, install the oil pump and torque to specifications. The reason is there is always the chance for some distortion of the cap once a heavy oil pump is installed. Here, a huge Titan G-Rotor oil pump is installed and torqued to specs.

    [​IMG]
    Once you’ve checked all of the main clearances (and they’re all within specification), you can install the crankshaft. You can use conventional engine oil for the installation or assembly lube. Apply a light coating to the lower main bearing halves.

    [​IMG]
    Next, the rear main seal is installed. With a one-piece seal such as this, it must be slipped over the rear of the crank prior to lowering the crankshaft into the block. The article text offers more detailed info, but in this photo you can see the installed seal.

    [​IMG]
    With all of the lower bearing inserts in place, you can gently lower the crank into the main bearing saddles. You can reinstall the rear main bearing and cap along with the first (front) bearing cap.

    [​IMG]
    Checking the crankshaft thrust dimension is next. You’ll need a dial indicator setup to read front-to-rear movement on the crankshaft. Depending on how you choose to perform the job, the dial indicator can be set up on the nose of the crank or on the rear flange. For this job, we have access to the flange on the engine stand (it needs to be tapped with a hammer), so we set the dial indicator up on the nose. The text offers details on how this job is accomplished.

    [​IMG]
    All of the main bearing cap bolts (or studs) can be torqued in place. We use a half-inch drive torque wrench for the job, and while we have three other torque wrenches in our tool collection, this long handle one makes torquing large numbers easy. What’s with the blue line on the outer row of bolts? It’s used to note which caps have been fully torqued. That way you can’t forget if you’re called away. We always double-check them.

    [​IMG]
    Measuring the rod bearing clearances is next. Here, the number one and two rod journals on the crankshaft are measured using a micrometer. Much like the main journal measurements, it’s a good idea to check in multiple places around the journal. This determines if the journal is in fact round. Repeat the process on all of the bearing journals and record the measurements.

    [​IMG]
    At this point, the connecting rod bearings can be installed. Note the chamfer on the bearing is designed to match the chamfer on the connecting rod. You’ll also note the bearing tangs are next to one another. If the connecting rod (and cap) is unmarked, this orientation ensures the cap is installed correctly. When assembling the engine, the chamfer faces the large fillet radius on the crankshaft.

    [​IMG]
    With the bearing installed and the cap correctly oriented, you can torque the connecting rod fasteners to specification. In this case, the GM Performance Parts connecting rods mandated 30W oil as the lubricant during tightening. Sneak up on the final figure just as you did with the main bearing caps.

    [​IMG]
    Here, we’re using our B&B Performance dial bore gauge to determine the inside diameter of the rod bearing (installed within the connecting rod). Once this figure is determined for each connecting rod, subtract the crankshaft rod journal dimension to determine the oil clearance. FYI, the best way to measure bores such as this is by way of a dial bore gauge.

    Last edited: Mar 9, 2019
  4. Grumpy

    Grumpy The Grumpy Grease Monkey mechanical engineer. Staff Member

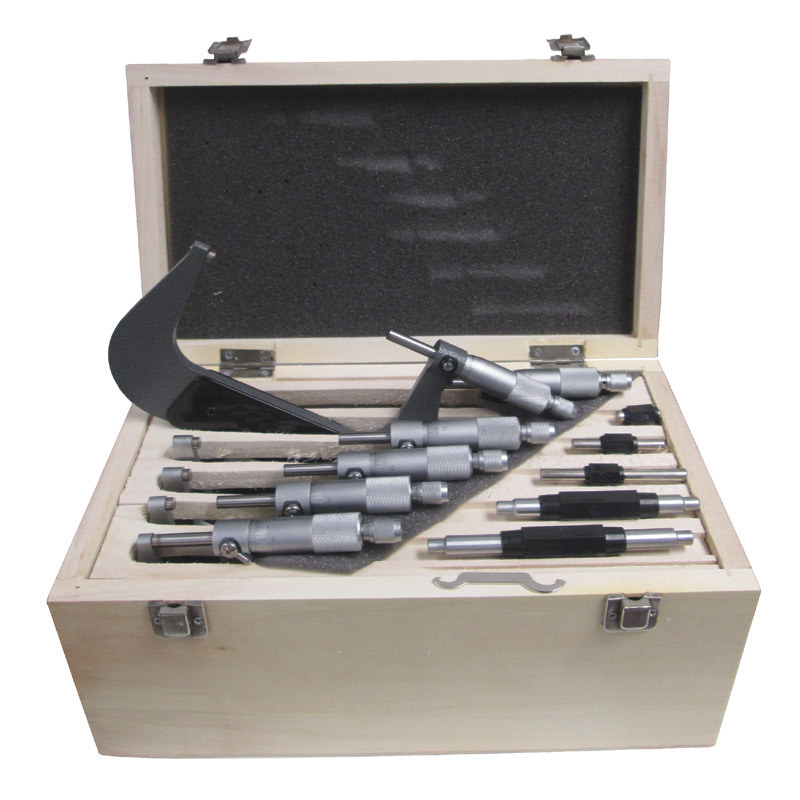

    refurbishing connecting rods clearances, takes precision measuring tools and a good grasp on whats required.
    [​IMG]
    http://www.tooltopia.com/fowler-72-646-300.aspx



    https://www.amazon.com/Anytime-Tools-MICROMETER-Machinist-Precision/dp/B000JMW4AS




    Last edited: Mar 10, 2019
  5. Grumpy

    Grumpy The Grumpy Grease Monkey mechanical engineer. Staff Member

    https://goodson.com/blogs/goodson-gazette/connecting-rod-honing-basics

    https://www.motor.com/magazine-summary/performance-perspectives-connecting-rod-inspection/

    https://www.hotrod.com/articles/hrdp-1212-dont-bother-building-factory-aftermarket-connecting-rods/

    http://garage.grumpysperformance.com/index.php?threads/reusing-stock-connecting-rods.702/



    http://www.engineprofessional.com/EPQ2-2014/files/inc/812367d726.pdf

    Reconditioning connecting rods
    1. Experts say reconditioning connecting rods involves thoroughly cleaning them first to check for any visible damage. ...
    2. The main purpose of reconditioning rods is to build a set of rods that are straight and of the correct length. ...
    3. After the caps are torqued on with acceptable rod bolts, measure the big end bores.

    https://www.enginebuildermag.com/2007/10/back-to-basics-reconditioning-connecting-rods/
