link to some c4 corvette wheel tech info

Discussion in 'Suspension and Brakes: Repairs and Modifications' started by Grumpy, Feb 23, 2016.

  1. Grumpy

    Grumpy The Grumpy Grease Monkey mechanical engineer. Staff Member

    http://www.mirrockcorvette.com/corvette-parts-guide-wheels.html

    https://www.wheel-size.com/calc/?wh...-18X9.5ET40&fcl=50mm&wcl=30mm&scl=50mm&sr=0mm
    [​IMG]
    [​IMG]
    C4 Corvette Wheel Informational Guide



    1984
    Model
    STANDARD Z51
    [​IMG] [​IMG]
    Front Wheel Size
    16 X 8.5 16 X 8.5
    Front Offset
    +32mm +32mm
    Front Tire
    255/50VR-16 255/50VR-16
    Rear Wheel Size
    16 X 8.5 16 X 9.5
    Rear Offset
    +32mm +38mm
    Rear Tire Size
    255/50VR-16 255/50VR-16
    Factory Tire Brand
    GOODYEAR EAGLE VR GOODYEAR EAGLE VR
    Appearance/Notes
    TURBINE STYLE WHEEL INSIDE SURFACE OF TURBINE BLADES AND CENTER SECTION PAINTED GLOSSY BLACK. ALUMINUM CASTING DOES NOT SHINE MUCH WHEN POLISHED.


    Return to Top

    1985
    Model
    STANDARD Z51
    [​IMG] [​IMG]
    Front Wheel Size
    16 X 8.5 16 X 9.5
    Front Offset
    +32mm +38mm
    Front Tire
    255/50VR-16 255/50VR-16
    Rear Wheel Size
    16 X 8.5 16 X 9.5
    Rear Offset
    +32mm +38mm
    Rear Tire Size
    255/50VR-16 255/50VR-16
    Factory Tire Brand
    GOODYEAR EAGLE VR GOODYEAR EAGLE VR
    Appearance/Notes
    TURBINE STYLE WHEEL INSIDE SURFACE OF TURBINE BLADES AND CENTER SECTION PAINTED GLOSSY BLACK. ALUMINUM CASTING DOES NOT SHINE MUCH WHEN POLISHED.


    Return to Top

    1986
    Model
    STANDARD Z51
    [​IMG] [​IMG]
    Front Wheel Size
    16 X 8.5 16 X 9.5
    Front Offset
    +32mm +38mm
    Front Tire
    255/50VR-16 255/50VR-16
    Rear Wheel Size
    16 X 8.5 16 X 9.5
    Rear Offset
    +32mm +38mm
    Rear Tire Size
    255/50VR-16 255/50VR-16
    Factory Tire Brand
    GOODYEAR EAGLE VR GOODYEAR EAGLE VR
    Appearance/Notes
    TURBINE STYLE WHEEL INSIDE TURBINE BLADES PAINTED GLOSSY GRAY. CENTER SECTION NOT PAINTED. HUB COVER MACHINED FINISH. ALUMINUM CAN BE POLISHED TO HIGH LUSTER. INSIDE OF WHEEL SLIGHTLY LARGER AND CAN BE USED WITH '88 AND LATER 2-PISTON FRONT BRAKE CALIPER WITH 13" ROTOR. WHEELS CAN BE IDENTIFIED BY CASTING SYMBOL THAT LOOKS LIKE 'm' WITH AN UPDSIDE DOWN 'j'.


    Return to Top

    1987
    Model
    STANDARD Z51/Z52
    [​IMG] [​IMG]
    Front Wheel Size
    16 X 8.5 16 X 9.5
    Front Offset
    +32mm +38mm
    Front Tire
    255/50VR-16 255/50VR-16
    Rear Wheel Size
    16 X 8.5 16 X 9.5
    Rear Offset
    +32mm +38mm
    Rear Tire Size
    255/50VR-16 255/50VR-16
    Factory Tire Brand
    GOODYEAR EAGLE VR GOODYEAR EAGLE VR
    Appearance/Notes
    TURBINE STYLE WHEEL INSIDE TURBINE BLADES PAINTED GLOSSY GRAY. CENTER SECTION PAINTED. HUB COVER MACHINED FINISH. ALUMINUM CAN BE POLISHED TO HIGH LUSTER. INSIDE OF WHEEL SLIGHTLY LARGER AND CAN BE USED WITH '88 AND LATER 2-PISTON FRONT BRAKE CALIPER WITH 13" ROTOR. WHEELS CAN BE IDENTIFIED BY CASTING SYMBOL THAT LOOKS LIKE 'm' WITH AN UPDSIDE DOWN 'j'.


    Return to Top

    1988
    Model
    STANDARD Z51/Z52 35th Anniversary Callaway
    [​IMG] [​IMG] [​IMG] [​IMG]
    Front Wheel Size
    16 X 8.5 17 X 9.5 17 X 9.5 17 X 9.5
    Front Offset
    +50mm +56mm +56mm +56mm
    Front Tire
    255/50VR-16 275/40ZR-17 275/40ZR-17 275/40ZR-17
    Rear Wheel Size
    16 X 8.5 17 X 9.5 17 X 9.5 17 X 9.5
    Rear Offset
    +50mm +56mm +56mm +56mm
    Rear Tire Size
    255/50VR-16 275/40ZR-17 275/40ZR-17 275/40ZR-17
    Factory Tire Brand
    GOODYEAR EAGLE VR GOODYEAR EAGLE ZR GOODYEAR EAGLE ZR GOODYEAR EAGLE ZR40
    Appearance/Notes
    RAZOR STYLE. MACHINED FINISH ALL OVER SALAD SHOOTER STYLE. CAST ALUMINUM MACHINED FINISH, CENTER LOCKING COVER. THIS DESIGN BECAME THE STANDARD DESIGN IN '89 SALAD SHOOTER STYLE. Z51 WHEELS, PAINTED WHITE. CAST MAG ALLOY. 5 STAR DESIGN.


    Return to Top

    1989
    Model
    STANDARD/Z51 Callaway
    [​IMG] [​IMG]
    Front Wheel Size
    17 X 9.5 17 X 9.5
    Front Offset
    +56mm +56mm
    Front Tire
    275/40ZR-17 275/40ZR-17
    Rear Wheel Size
    17 X 9.5 17 X 9.5
    Rear Offset
    +56mm +56mm
    Rear Tire Size
    275/40ZR-17 275/40ZR-17
    Factory Tire Brand
    GOODYEAR EAGLE 40ZR GOODYEAR EAGLE ZR40
    Appearance/Notes
    SALAD SHOOTER STYLE. CAST ALUMINUM. CENTER LOCKING COVER. CAST MAG ALLOY. 5 STAR DESIGN.


    Return to Top

    1990
    Model
    STANDARD/Z51 ZR-1 Callaway
    [​IMG] [​IMG] [​IMG]
    Front Wheel Size
    17 X 9.5 17 X 9.5 17 X 9.5
    Front Offset
    +56mm +56mm +56mm
    Front Tire
    275/40ZR-17 275/40ZR-17 275/40ZR-17
    Rear Wheel Size
    17 X 9.5 17 X 11 17 X 9.5
    Rear Offset
    +56mm +36mm +56mm
    Rear Tire Size
    275/40ZR-17 315/35ZR-17 275/40ZR-17
    Factory Tire Brand
    GOODYEAR EAGLE ZR GOODYEAR EAGLE ZR GOODYEAR EAGLE ZR40
    Appearance/Notes
    SALAD SHOOTER STYLE. SAME DESIGN AS '89 BUT WITHOUT LOCKING CENTER COVER. CAST MAG ALLOY. 5 STAR DESIGN.


    Return to Top

    1991
    Model
    STANDARD/Z07 ZR-1 Callaway
    [​IMG] [​IMG] [​IMG]
    Front Wheel Size
    17 X 9.5 17 X 9.5 17 X 9.5
    Front Offset
    +56mm +56mm +56mm
    Front Tire
    275/40ZR-17 275/40ZR-17 275/40ZR-17
    Rear Wheel Size
    17 X 9.5 17 X 11 17 X 9.5
    Rear Offset
    +56mm +36mm +56mm
    Rear Tire Size
    275/40ZR-17 315/35ZR-17 275/40ZR-17
    Factory Tire Brand
    GOODYEAR EAGLE GATORBACKS GOODYEAR EAGLE GATORBACKS GOODYEAR EAGLE ZR40
    Appearance/Notes
    "SAWBLADES" CAST FINISH CAST MAG ALLOY. 5 STAR DESIGN.


    Return to Top

    1992
    Model
    STANDARD / Z07 ZR-1
    [​IMG] [​IMG]
    Front Wheel Size
    17 X 9.5 17 X 9.5
    Front Offset
    +56mm +56mm
    Front Tire
    275/40ZR-17 275/40ZR-17
    Rear Wheel Size
    17 X 9.5 17 X 11
    Rear Offset
    +56mm +36mm
    Rear Tire Size
    275/40ZR-17 315/35ZR-17
    Factory Tire Brand
    GOODYEAR EAGLE GS-C GOODYEAR EAGLE GS-C
    Appearance/Notes
    "SAWBLADES" CAST FINISH


    Return to Top

    1993
    Model
    STANDARD (Z07) ZR-1 40th Anniversary
    [​IMG] [​IMG] [​IMG]
    Front Wheel Size
    17 X 8.5 (17 X 9.5) 17 X 9.5 --
    Front Offset
    +56mm +56mm --
    Front Tire
    255/45ZR-17 (275/40ZR-17) 275/40ZR-17 --
    Rear Wheel Size
    17 X 9.5 17 X 11 --
    Rear Offset
    +56mm +36mm --
    Rear Tire Size
    285/40ZR-17 (275/40ZR-17) 315/35ZR-17 --
    Factory Tire Brand
    GOODYEAR EAGLE GS-C GOODYEAR EAGLE GS-C --
    Appearance/Notes
    "SAWBLADES" MACHINED FINISH RUBY RED CENTER CAP APPLIED FOR 40TH ANNVERSIARY RUBY RED CARS


    Return to Top

    1994
    Model
    STANDARD (Z07) ZR-1
    [​IMG] [​IMG]
    Front Wheel Size
    17 X 8.5 (17 X 9.5) 17 X 9.5
    Front Offset
    +56mm +56mm
    Front Tire
    255/45ZR-17 (275/40ZR-17) 285/45ZR-17
    Rear Wheel Size
    17 X 9.5 17 X 11
    Rear Offset
    +56mm +36mm
    Rear Tire Size
    285/40ZR-17 (275/40ZR-17) 315/35ZR-17
    Factory Tire Brand
    GOODYEAR EAGLE GS-C GOODYEAR EAGLE GS-C
    Appearance/Notes
    "SAWBLADES" MACHINED FINISH 93-96


    Return to Top

    1995
    Model
    Standard (Z07) ZR-1 Pace
    [​IMG] [​IMG] [​IMG]
    Front Wheel Size
    17 X 8.5 (17 X 9.5) 17 X 9.5 17 X 9.5
    Front Offset
    +56mm +56mm +56mm
    Front Tire
    255/45ZR-17 (275/40ZR-17) 275/40ZR-17 275/40ZR-17
    Rear Wheel Size
    17 X 9.5 17 X 11 17 X 9.5
    Rear Offset
    +56mm +36mm +56mm
    Rear Tire Size
    285/40ZR-17 (275/40ZR-17) 315/35ZR-17 275/40ZR-17
    Factory Tire Brand
    GOODYEAR EAGLE GSC GOODYEAR EAGLE GSC GOODYEAR EAGLE GSC
    Appearance/Notes
    "SAWBLADES" MACHINED FINISH 93-96 5 SPOKE DESIGN PAINTED ARGENT GRAY. 5 SPOKE DESIGN PAINTED ARGENT GRAY.


    Return to Top

    1996
    Model
    Standard (Z51) Collector (Z51) Grand Sport Coupe (Convertible)
    [​IMG] [​IMG] [​IMG]
    Front Wheel Size
    17 X 8.5 (17 X 9.5) 17 X 8.5 (17 X 9.5) 17 X 9.5 (17 X 8.5)
    Front Offset
    +56mm +56mm +56mm
    Front Tire
    255/45ZR-17 (275/40ZR-17) 255/45ZR-17 (275/40ZR-17) 275/40ZR-17 (255/40ZR-17)
    Rear Wheel Size
    17 X 9.5 17 X 9.5 17 X 11 (17 X 9.5)
    Rear Offset
    +56mm +56mm +50mm (+56mm)
    Rear Tire Size
    285/40ZR-17 (275/40ZR-17) 285/40ZR-17 (275/40ZR-17) 315/35ZR-17(285/40ZR-17)
    Factory Tire Brand
    GOODYEAR EAGLE GSC GOODYEAR EAGLE GSC GOODYEAR EAGLE GSC
    Appearance/Notes
    "SAWBLADES" MACHINED FINISH 93-96 5 SPOKE DESIGN PAINTED ARGENT GRAY. 5 SPOKE DESIGN PAINTED BLACK WITH POLISHED LIP.

    Last edited: Jan 21, 2018
  2. Grumpy

    Grumpy The Grumpy Grease Monkey mechanical engineer. Staff Member

    http://garage.grumpysperformance.com/index.php?threads/c-4-corvette-rear-differential-and-suspension-width.905/

    http://www.joby.se/corvette/div/corvette_wheels/

    https://www.wheel-size.com/calc/?wheel1=245-50-16X9.5ET38&wheel2=255-40-18X9.5ET40&fcl=50mm&wcl=30mm&scl=50mm&sr=0mm

    https://www.customwheeloffset.com/tire-wheel-backspacing-offset-calculators

    http://www.1010tires.com/Tools/Wheel-Offset-Calculator

    http://www.willtheyfit.com/

    https://www.wheel-size.com/calc/?wh...-18X9.5ET40&fcl=50mm&wcl=30mm&scl=50mm&sr=0mm

    CORVETTE WHEEL OFFSET CHART
    Size Offset Application
    17" × 8.5" +56 88-96 frt/rear, 97-04 frt
    17" × 9.5" +54 88-96 frt/rear, 97-04 frt
    17" × 11" +36 90-95 ZR1 rear
    17" × 11" +50 96 Grand Sport rear
    18" × 8.5" +56 88-96 frt/rear, 97-13 frt exc. C6 Z06, ZR1, Grand Sport, C7 frt exc. Z51
    18" × 9.5" +40 84-87 frt/rear, 06-13 Z06 & Grand Sport frt
    18" × 9.5" +57 97-04 rear, 05-13 frt
    18" × 10.5" +58 97-04 rear
    19" × 8.5" +56 C7 frt w/ Z51
    19" × 10" +40 06-13 C6 Z06, ZR1 & Grand Sport frt, 427 Convertible frt
    19" × 10" +43 C7 Z06 frt
    19" × 10" +56 97-04 rear
    19" × 10" +79 05-13, C7 exc. Z51 rear
    19" × 11" +64 97-04 rear
    19" × 11" +79 05-13 rear
    19" × 12" +59 06-13 C6 Z06 & Grand Sport
    20" × 10" +79 C7 rear w/ Z51
    20" × 12" +59 06-13 C6 Z06, ZR1 & Grand Sport rear, 427 Convertible rear, C7 Z06 rear
    bits of info you might need

    http://garage.grumpysperformance.com/index.php?threads/dana-60-all-the-same.12306/#post-60532

    http://www.superchevy.com/how-to/corp-0404-the-right-wheel-for-your-c4/

    http://garage.grumpysperformance.com/index.php?threads/upgrading-the-suspension-on-a-c-4.483/

    http://www.carnut.com/specs/rear.html

    http://www.teufert.net/other/rear end dimensions.htm

    http://www.kevinstang.com/Ninecase.htm

    http://www.currieenterprises.com/cestore/default_9track9.aspx

    http://www.ford-trucks.com/article/idx/9/065/article/Ford_9_Inch_RebuildGear_Setup.html
    the FORD 9" has advantages and lots of aftermarket support, but Ive used a DANA 60 rear with its heavier axles and bearings and 9 3/4" gears in all my race cars , they are slightly heavier (about 60 lbs) but basically indestructable compared to the 8 7/8" 12 bolt chevy or 9" fords


    http://www.digitalcorvettes.com/forums/showthread.php?t=53882&highlight=dana

    http://www.mopar1.us/dana.html

    http://ford.off-road.com/ford/article/articleDetail.jsp?id=198404

    http://www.ford-trucks.com/article/idx/9/200/article/Dana_60_Rebuild.html

    http://garage.grumpysperformance.co...ifferentials-available.1282/page-2#post-67241

    http://garage.grumpysperformance.co...ing-a-dana-60-to-disc-brakes.5083/#post-25173

    http://www.joby.se/corvette/div/corvette_wheels/

    [​IMG]
    [​IMG]

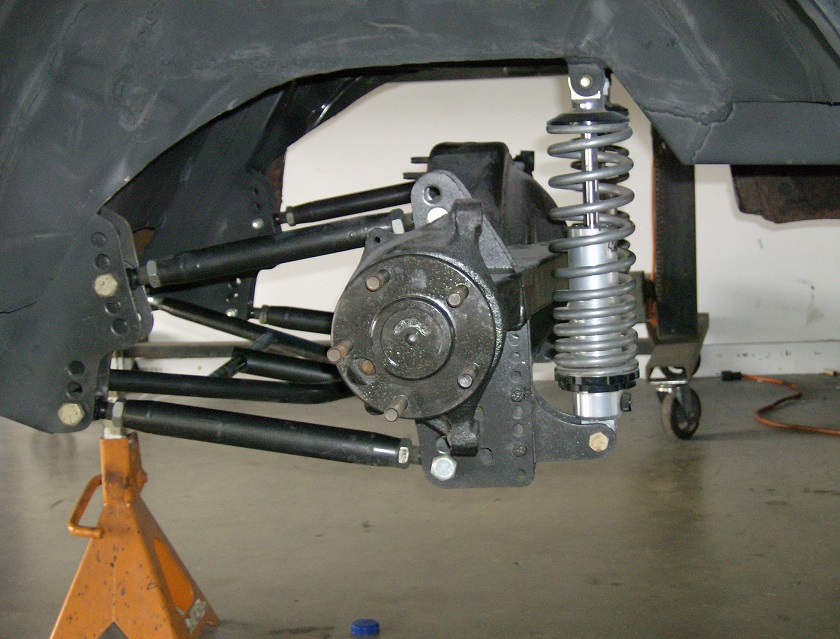

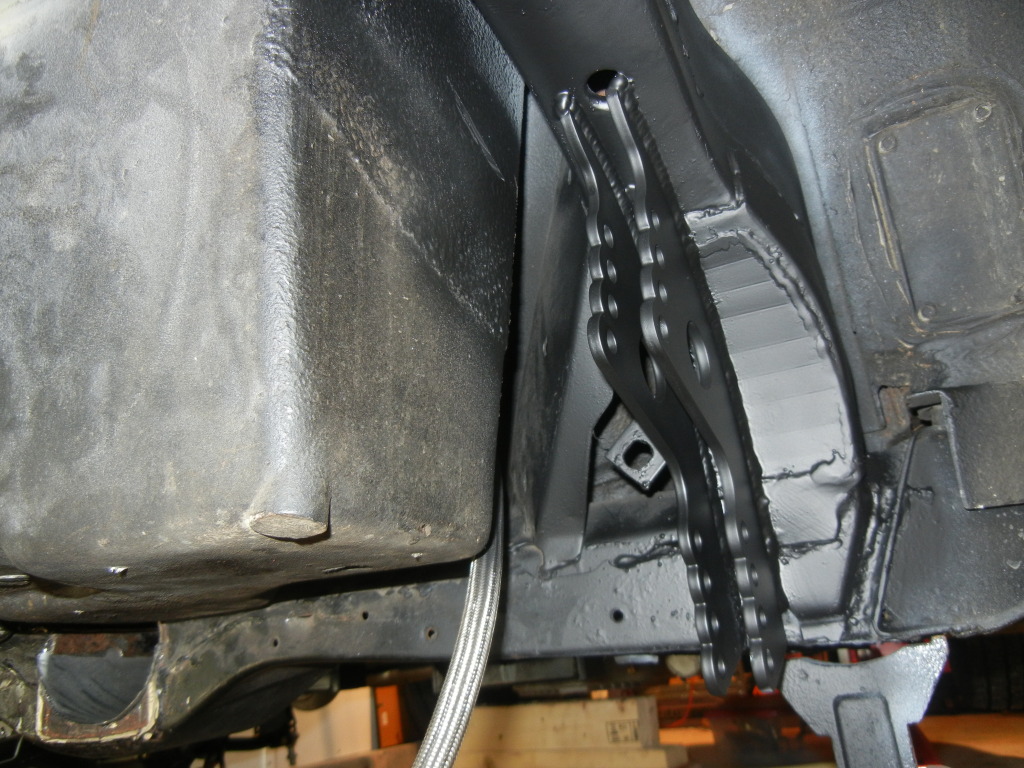

    yes you can install a 4 link and dana 60 in a serious c4 corvette suspension modification upgrade

    Last edited: Jan 21, 2018
  3. Grumpy

    Grumpy The Grumpy Grease Monkey mechanical engineer. Staff Member

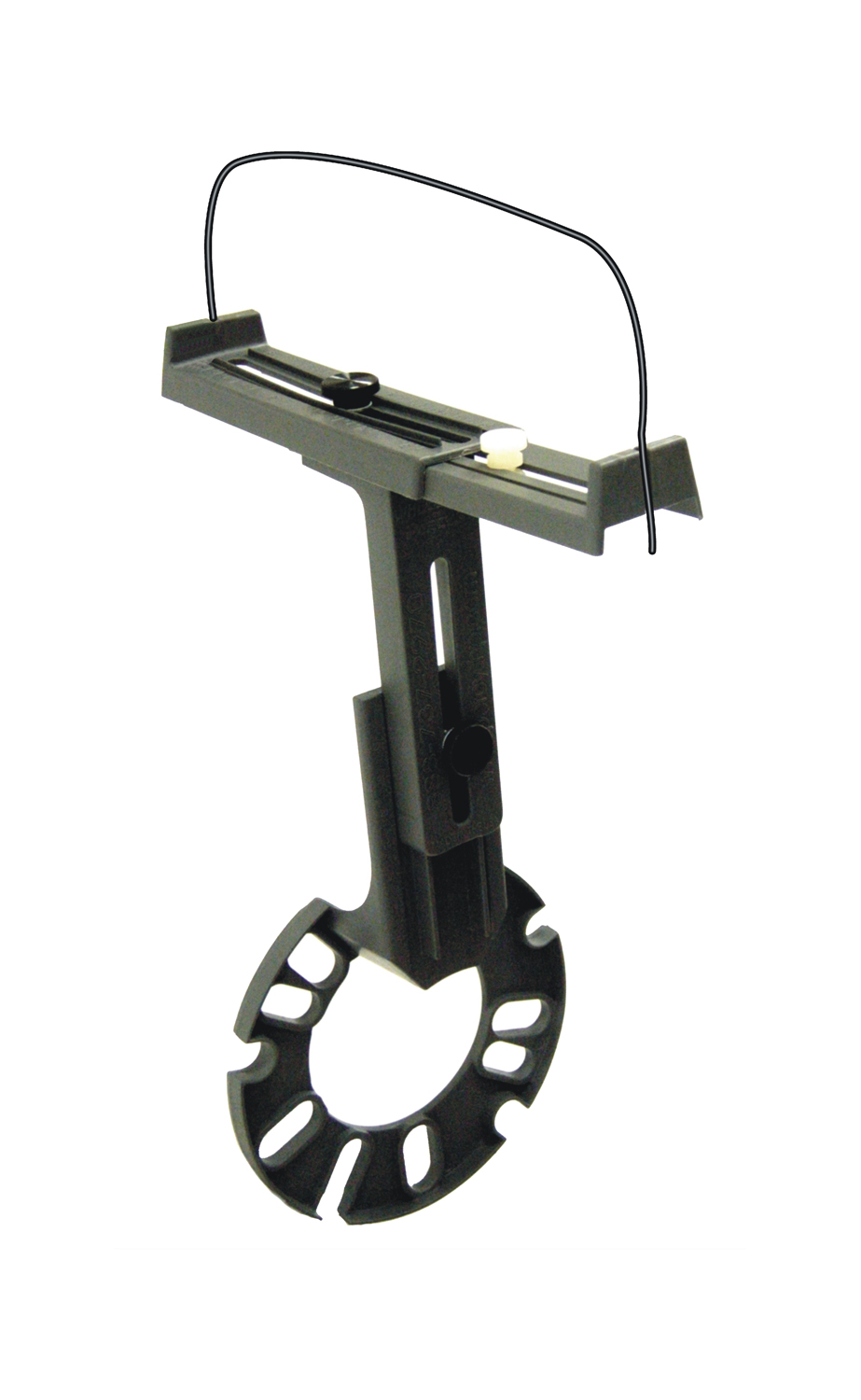

    accurately measuring tire clearance and wheel offset

    https://www.1010tires.com/Tools/Tire-Size-Calculator (this is really handy)

    theres several charts posted above in this thread that should be helpful, most of the better corvette shops and larger tire shops,
    and performance wheel / tire sellers ,have been down this road dozens of times,
    so they can give you valid info on what fits from past experiences, or you can obviously start measuring yourself,
    be
    well aware that the tire too wheel well clearances change, and the suspension geometry changes very noticeably,
    with you or two people are siting in the car, during directional changes,"turns",
    during braking and hard

    acceleration. obviously if you currently have access to the wheels and tires,
    you can try installing those components and
    measuring clearances,
    remember they sell
    spacer plate adapters too move the wheel outward

    If you want to buy and install larger than original wheels and tires on your car, you need the accurate measurements, so you won,t waste a great deal of time and cash,
    Id also call tire rack, discount tire, etc. and other major on-line tire/wheel set vendors and ask questions (link below) they sell hundreds of corvette tires a month and would know by now what fits and what causes problems
    it also helps if you accurately measure your current car wheel well , tires and wheel, and off set clearances internally in the cars wheel well, so youll know what your dealing with

    https://www.tirerack.com/content/tirerack/desktop/en/tires.html?gclid=EAIaIQobChMIiPud57-F3AIVXrXACh1cOgDXEAAYASAAEgJPw_D_BwE&s_kwcid=AL!3756!3!254641198245!e!!g!!tires online&ef_id=WwSgkQAAAIJ8kji0:20180704125836:s

    https://www.discounttiredirect.com/...ight3&ef_id=WwSgkQAAAIJ8kji0:20180704130548:s

    http://garage.grumpysperformance.co...c4-corvette-wheel-tech-info.12099/#post-75335

    http://www.superchevy.com/how-to/wh...ure-for-bigger-wheels-and-tires-size-matters/

    https://www.popularmechanics.com/cars/how-to/a3682/4281033/

    https://tires.tirerack.com/tires/What Tires Will Fit My Car

    https://www.1010tires.com/Tools/Tire-Size-Calculator

    https://www.hotrod.com/articles/ccrp-0610-muscle-car-performance-wheels-fitment/

    http://www.thewheelfit.com/

    http://www.superchevy.com/how-to/wheels-tires/sucp-0206-wheel-works-tool/

    https://www.chevyhardcore.com/tech-...asure-for-installing-larger-wheels-and-tires/


    http://www.chevyhardcore.com/tech-s...asure-for-installing-larger-wheels-and-tires/

    http://www.hotrod.com/articles/ccrp-0610-muscle-car-performance-wheels-fitment/

    http://www.superchevy.com/how-to/wh...ure-for-bigger-wheels-and-tires-size-matters/

    https://www.rsracing.com/TechWheel.aspx

    http://www.motorsport-tech.com/4DCGI/a_yearmakemodel.html

    http://www.wheeladapter.com/corvett...MI_IDks9yR2gIVz7fACh12xAaGEAAYASAAEgLJCPD_BwE

    https://www.uswheeladapters.com/whe...MI_IDks9yR2gIVz7fACh12xAaGEAAYAiAAEgJH1_D_BwE


    theres also tools designed to make the process a bit faster

    https://autoplicity.com/226592-perc...MI7-Sc1tCR2gIVgrbACh0FRgv5EAQYBSABEgKi6_D_BwE

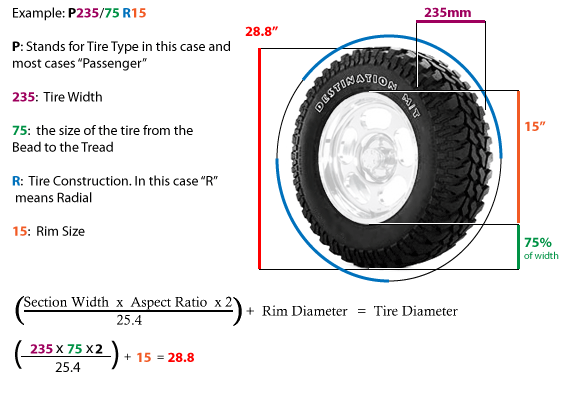

    View Here : What Do The Numbers On Tires Mean


    There's a massive amount of information branded on the sidewall of every tire. Learn how to crack the tire code about tire types, sizes, and construction.
    [​IMG]

    What Do The Numbers On Tires Mean >> What Do The Numbers On Tires Mean Tire Sizes Explained Hansma


    The Natural and Whole Numbers We start with the natural numbers.These are the numbers 1, 2, 3, … (The … symbol means that the sequence goes on forever.) They are used for counting.
    [​IMG]

    What Do The Numbers On Tires Mean >> What Do The Numbers Mean On A Tire How To Read Tire Sizes


    Buy tires online with fast shipping - Vulcan Tire - Read real customer tire reviews and ratings. Featuring a full line of ultra high performance, touring and light truck tires.
    [​IMG]
    [​IMG]

    Last edited: Jul 4, 2018
  4. Grumpy

    Grumpy The Grumpy Grease Monkey mechanical engineer. Staff Member

    buying tires on line can reduce the price significantly
    ,but be aware most local tire shops will charge you $25-$35 to install and balance EACH tire ,
    you did not buy from them.
    youll obviously need to know the correct size you need and it helps if you know the brand you prefer
    youll also have to pay shipping charges and taxes in some cases,and of course deal with,
    careless, clueless or stupid delivery services in some cases


    https://www.discounttiredirect.com/

    https://www.firestonecompleteautocare.com/tires/vehicle/chevrolet/corvette/

    https://www.summitracing.com/search?SortBy=BestKeywordMatch&SortOrder=Ascending&keyword=corvette tires&N=4294898495+4294920356

    https://www.performanceplustire.com/

    https://www.tirebuyer.com/?utm_medium=paid_search&network=google&utm_campaign=Brand&utm_content=textlink&adgroup=Brand+Terms&matchtype=Broad&utm_term=+tire+buyer+online&utm_source=google&mkwid=syuK41slY|pcrid|283077425248|pkw|+tire +buyer +online|pmt|b|pdv|c|slid||&pgrid=1479321150&ptaid=kwd-30099682461&gclid=EAIaIQobChMIr9z8s-K_3QIVCYlpCh1fTA4mEAAYAiAAEgLSUfD_BwE


    https://www.tirerack.com/content/tirerack/desktop/en/tires.html?gclid=EAIaIQobChMIr9z8s-K_3QIVCYlpCh1fTA4mEAAYAyAAEgLaZvD_BwE&s_kwcid=AL!3756!3!254641198245!b!!g!!+online +tires&ef_id=Wz1YMQAAALFOexCq:20180916145153:s


    Tire Rack is free shipping on tire orders over $50.

    Tirebuyer is also free shipping if shipped to one of their dealers to install.




    if youve had GOOD OR BAD experience buying tires for your performance car,
    list the best sources,
    or have found bargains or can list problems please post that related info
    be aware, many aftermarket aluminum wheels can not use a standard tire mount machine,
    so youll have a good deal of difficulty,
    finding a shop to mount tires you did not buy from them and most people,
    won,t be mounting tires manually with hand tools

    Last edited: Sep 16, 2018 at 11:18 AM
  5. Maniacmechanic1

    Maniacmechanic1 solid fixture here in the forum

    Mickey Thompson Street Comp Tires.
    Bought last summer for my 1987 Corvette Convertible.
    Factory 1990 ZR1 Wheels.
    Rears 17x11.
    Fronts 17x 9.5.

    315s in back.
    275s up front.

    No wheel spacers used.
    No issues.

    Best street performance tire I have ever used.
    Can drive 100 -120 in heavy rain.
    No Hydroplane issues.

    So far I think I am the only Corvette guy using Mickey Thompson Street Comps.

  6. Maniacmechanic1

    Maniacmechanic1 solid fixture here in the forum

    Bought from my Speed shop in Joliet, IL
    fronts.
    Rears Discount tire had.
    Guy ordered and never picked up.
    Sold to me for $200 both rear tires.


Share This Page
