what KILLS O2 sensors?

Discussion in 'Exhaust and Mufflers' started by grumpyvette, Apr 10, 2010.

  1. grumpyvette

    grumpyvette Administrator Staff Member

    leaking injectors or any source of a constantly overly rich, fuel/air mix can and will eventually screw up your O2 sensors, try hard to tune your engine to stay in the 12:1-15:1 fuel air ratio range, the closer to 14.7:1 , and the less contaminates like coolant or moisture, the better the sensor likes it, and the longer its likely to last

    IF you want to upgrade the current one wire oxygen sensor on the earlier c4 corvettes to a later more effective three wire oxygen heated sensor...

    RUST,AGE,MOISTURE, ACIDS, COOLANT IN THE EXHAUST,ALSO TEND TO LIMIT THE SENSOR LIFE EXPECTANCY
    excessive use of injector cleaner, leaded fuels leave clogging residues, or water absorbing fuel additives, added to the fuel or coolant seeping into the exhaust or an excessively rich a/f ratio will eventually kill an O2 sensor

    "Water absorbing fuel additives such as alcohols....or use of fuel drying additives, that contain alcohol as most do, tend to damage sensors"

    I'm NOT sure if its the alcohol or something ELSE in the cans of products similar to (DRY GAS) and similar additives LIKE injector cleaners but its been depressingly common to see the O2 sensors quit after awhile if that type of products been used frequently, Ive got brother-in-laws and friends that regularly dump that stuff in their tanks and we replaced O2 sensors almost yearly until I got them to just change the oil and all the filters regularly and stop dumping the latest wonder additive in the tank every other fill up
    Its not a good idea to add injector cleaner formulas to the fuel on almost every fill up.
    but ID also point out that alcohols HYDROSCOPIC (SPELLING??) IT tends to absorb moisture and the combo of excess moisture, heat and exhaust tends to eat sensors, keep in mind a mild sulfuric acid is formed from exhaust gases and moisture.
    keep in mind O2 sensors need to run fairly hot and only provide data to the CPU over a limited fuel/air ratio range thats NEAR 14.7:1
    most decent headers have 32"-39" long primairy header pipes so the collector is at least that distance from the exhaust port

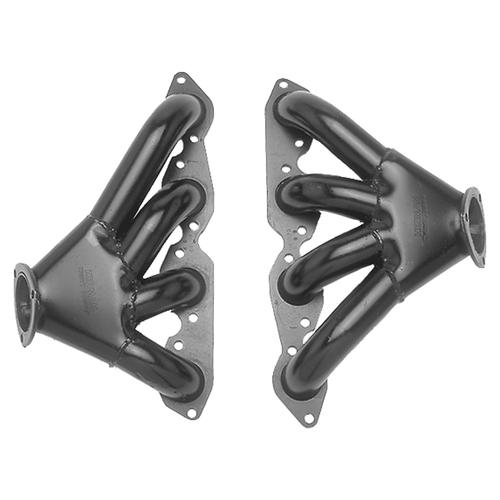

    18" from the exhaust port makes sense with something like shorty headers
    make sure your cars battery is unplugged for several minutes after any defective oxygen sensor replacement, to reset volatile memory, and if possible reset any of the trouble codes, showing a defective o2 sensor code present, it is a given that the cars trouble code memory contains bad fuel trim data, until its reset.

    [​IMG]
    [​IMG]

    but you would only read the exhaust from a single cylinder on true performance headers at 18" from the exhaust port
    thus collectors for performance headers have sensor bungs welded in the collector where they are located in the flow of exhaust from all the cylinders on that bank, but this presents a potential problem, because all oxygen sensors work best at higher temps (the reason 18" from the exhaust port was advised) so its best to select the HEATED OXYGEN SENSORS in that application

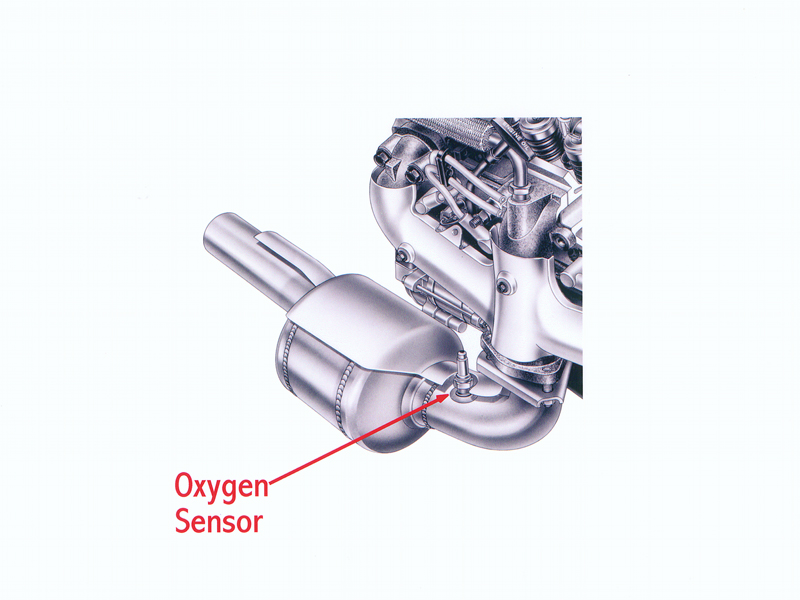

    single wire sensors should be located close to the exhaust port
    [​IMG]
    article on mounting bungs on collectors
    http://www.classicchevy.com/assets/pdf/classicchevy/18-281, TECH.pdf
    the later multi wire heated sensors are much more tolerant as to actual location and work fine in header collectors
    [​IMG]
    [​IMG]

    viewtopic.php?f=80&t=728&p=9217&hilit=oxygen+sensors#p9217

    viewtopic.php?f=56&t=961

    viewtopic.php?f=44&t=1599&p=3767&hilit=oxygen+sensors#p3767

    viewtopic.php?f=55&t=1241&p=2648&hilit=oxygen+sensors#p2648

    viewtopic.php?f=32&t=596&p=1200&hilit=oxygen+sensors#p1200

    viewtopic.php?f=56&t=495&p=613&hilit=oxygen+sensors#p613

    http://www.superchevy.com/how-to/additi ... ult-codes/

    viewtopic.php?f=56&t=3049&p=8053&hilit=oxygen+sensors#p8053
    [​IMG]

    [​IMG]
    read the links as they contain a good deal of info

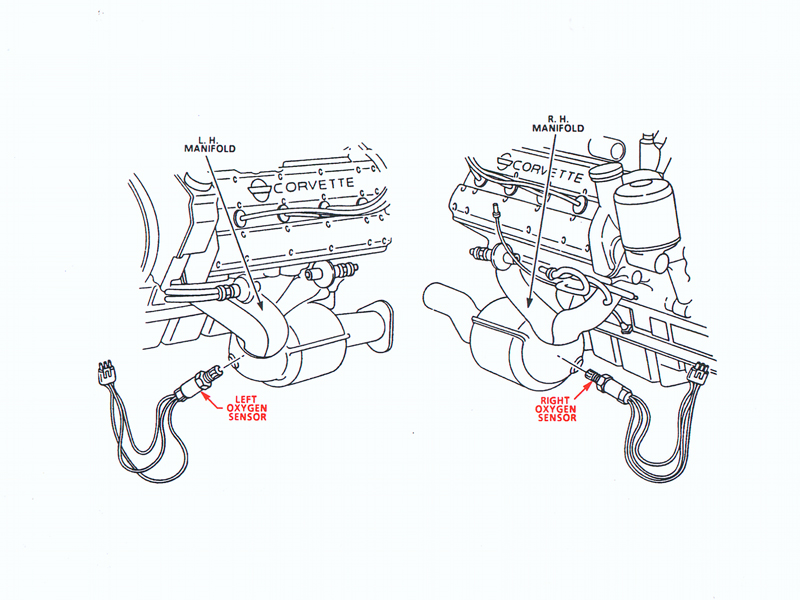

    early L98 typically run 1 oxygen sensor in front the common catalytic converter.

    LT1 and LT4 run Four (4) oxygen sensors.

    One in front of each catalytic converter.

    One behind each catalytic converter.
    [​IMG]
    [​IMG]
    [​IMG]
    this defective cat is very common on older c4 corvettes
    [​IMG]

    viewtopic.php?f=56&t=495

    http://garage.grumpysperformance.com/index.php?threads/so-you-failed-emmision-testing.3522/

    viewtopic.php?f=56&t=3049&p=8053&hilit=catalytic#p8053

    viewtopic.php?f=80&t=2813&p=7258&hilit=catalytic#p7258

    viewtopic.php?f=80&t=728&p=9217&hilit=catalytic#p9217

    viewtopic.php?f=32&t=1174&p=20327&hilit=catalytic#p20327

    viewtopic.php?f=80&t=2813&p=13444&hilit=catalytic#p13444

    http://auto.howstuffworks.com/question257.htm

    viewtopic.php?f=50&t=1853&p=4848&hilit=+air+fuel+meter#p4848

    viewtopic.php?f=55&t=109

    http://www.picoauto.com/applications/lambda-sensor.html

    http://mr2.com/TEXT/O2_Sensor.html

    http://www.scirocco.org/tech/misc/afgauge/af.html

    http://en.wikipedia.org/wiki/Oxygen_sensor

    http://www.casperselectronics.com/store ... cts_id=698

    http://www.asashop.org/autoinc/june/Tech2tech.htm

    http://www.aa1car.com/library/o2sensor.htm

    http://www.asashop.org/autoinc/dec2002/mech.htm

    http://www.wellsmfgcorp.com/pdf/Counterpoint2_3.pdf

    http://www.pelicanparts.com/bmw/techart ... sensor.htm

    http://www.engine-light-help.com/oxygen ... codes.html



    http://www.walkerproducts.com/faqs_o2.html

    http://www.aa1car.com/library/wraf.htm

    http://auto.howstuffworks.com/framed.ht ... ensor.html

    _________http://en.wikipedia.org/wiki/Stoichometric_________

    viewtopic.php?f=44&t=773

    viewtopic.php?f=50&t=1853&p=4848&hilit=ratio+meter#p4848

    [​IMG]

    [​IMG]

    Bosch LSU4.2 WBO2 Sensor
    http://www.boschautoparts.com/OxygenSen ... nsors.aspx

    [​IMG]

    if yours is defective or missing why not just weld on a bung on the header or exhaust pipe and install the correct 02 sensor?

    http://forum.grumpysperformance.com/viewtopic.php?f=56&t=3049&hilit=oxygen+sensor

    http://www.ecklerscorvette.com/corvette-exhaust-oxygen-sensor-1982-1986.html

    [​IMG]
    NTK WBO2 Sensor
    http://www.ngksparkplugs.com/products/o ... p?mode=nml
    [​IMG]

    [​IMG]
    it helps if you understand that oxygen sensors do not measure your true fuel air ratio,entering the engine, but instead measure the remaining oxygen content of the burnt exhaust gases,and there are both narrow and wide band sensors
    [​IMG]
    [​IMG]


    You cannot turn OFF the rear 02s, only turn off their error codes from tripping.

    Bad idea not using the rears as they also are used by the PCM to compute the fuel trims
    racingvette posted this additional info
    "As per GM :

    The rear oxygen sensor, located after the catalyst, is used for fuel trim corrections on OBD-II vehicles. By virtue of its location, the rear sensor is generally protected from high temperatures and much of the contamination that affects the front oxygen sensors.
    In addition, the rear sensor sees exhaust gases that are equilibrated – they have already been converted by the catalyst so that there is very little residual oxygen.
    This allows the rear sensor to respond to much smaller changes in exhaust gas oxygen content. In turn, it then possible for the rear sensor voltage to remain near the 0.45 volt switchpoint.

    This characteristic allows the rear sensor to be used for fuel control. Under steady rpm and load conditions, the short term fuel trim bias can be adjusted so that the rear sensor voltage is maintained near the 0.45 volt switchpoint.
    This ensures that the catalyst is getting a stoichiometric exhaust gas mixture, despite any shift in the front sensor switchpoint.
    The rear fuel trim corrections are learned in KAM (Keep Alive Memory).
    Internally, this system is known as Fore Aft Oxygen Sensor Control (FAOSC). Note that FAOSC learns and reacts very slowly because the catalyst, with its large/slow oxygen storage and release characteristic, is part of the control loop. Also, this system cannot be used with a "y-pipe" exhaust where a single rear sensor would try to adjust dual front sensors.

    Rear O2s if you will are a fine tune of the commanded fuel flow but are very much part of the model used in the PCM's math to correct AFR for closed loop

    This means running no rear O2s or Simms will effect how the PCM computes what the fuel trims are.

    There is 2 02 wiring connectors per side on frame rail
    Each side has 2 different shaped wiring connectors and the front and rear 02s have a matching connector shape so they cannot be connected in wrong UNLESS someone has hacked the 02 wires and used the wrong connector or incorrect wiring order.

    Look at the stock 02 sensors and it will be clear which shape they have and match to the main wiring harness.

    If you are wrongly using the rear 02 connectors for the fronts then they are on the wrong side of engine as the right rear connector is for the left rear 02 and same for left side is for right rear 02.

    Using a OBD-II scanner would quickly tell you the state of the 02 sensors and wacked fuel trims would point to 02s in the wrong placement"

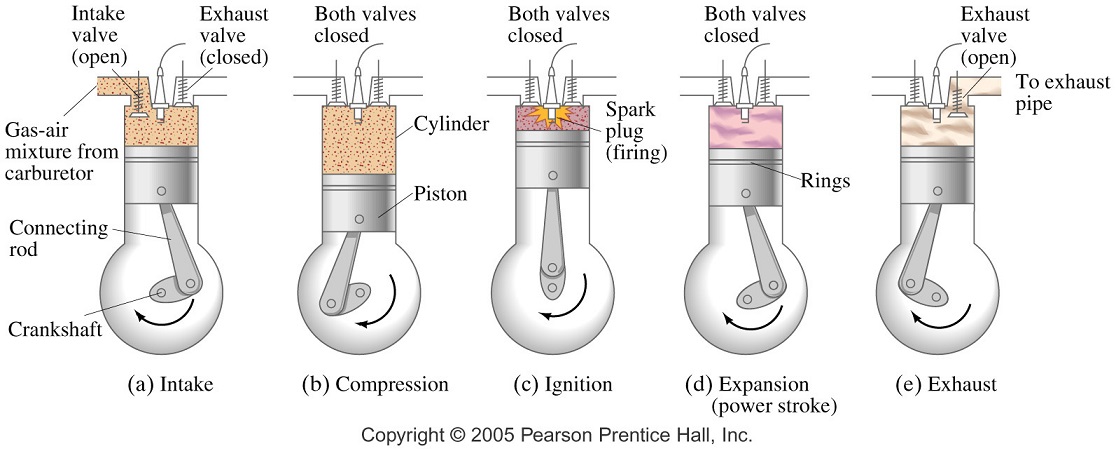

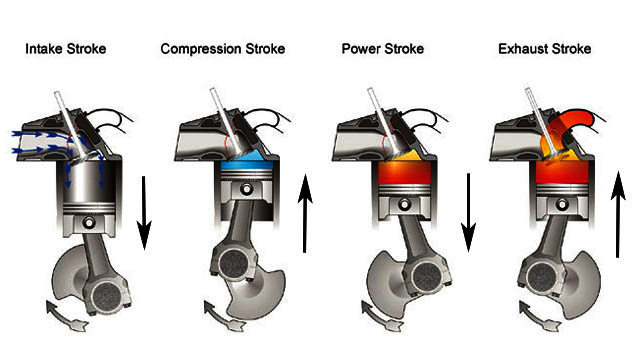

    one factor I seldom seen mentioned is the fact that fuel must be atomized and mixed with air in a vapor form to burn effectively, and that oxygen sensors measure the remaining un-used oxygen in the exhaust gases, NOT the REMAINING FUEL CONTENT and the difference is important as your tail pipe could be dripping raw fuel while the oxygen sensor reads a LEAN REMAINING HIGH OXYGEN CONTENT in the exhaust gases, being measured by the oxygen sensor data, if the fuel was poorly atomized and far less that 100% of the fuel flow passing thru the cylinders is being burnt efficiently.

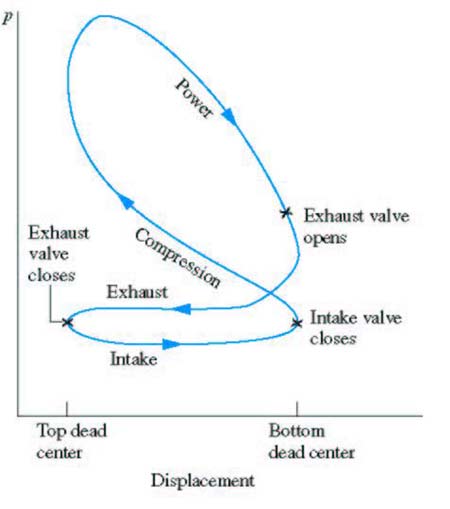

    a highly effective exhaust header scavenging the cylinder matched to a cam with significant over lap can quite easily promote that result if the fuel is not being efficiently atomized, especially in a fairly cool combustion chamber.

    [​IMG]

    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited by a moderator: Nov 13, 2018
  2. SS402

    SS402 New Member

    I think a lot of people are unknown to the fact that spraying Carb Cleaner in the throttle body will also destroy the O2 sensor/s, that's why we don't want to use anything but gasoline in the tank if we can help it.
    The narrow-band 1,2 and 3-wire O2 sensors are guilty of offering a limited range but the newer 4 and 5-wire units are capable of measuring the Oxygen level over a much wider range. The standard non'heated 1 and 2-wire units are the least desirable, then the 3-wire heated unit is much better as it is more accurate at low engine speeds when the exhaust is cooler but the newer 4 and 5-wire units offer the best of both worlds with a heated element and wide-band capability.

  3. grumpyvette

    grumpyvette Administrator Staff Member

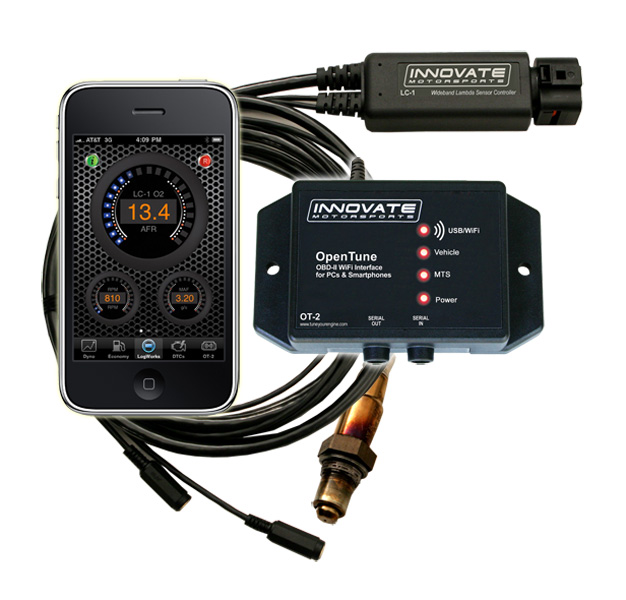

    heres a tip posted elseware if you don,t want to weld in bungs for testing probes or sensors in your header collectors ,in your exhaust pipes or while measuring the fuel/air ratio while tuning
    [​IMG]
    http://www.innovatemotorsports.com/xcar ... ctid=16141
    [​IMG]
    http://www.innovatemotorsports.com/xcar ... 274&page=1
    http://www.innovatemotorsports.com/xcar ... 274&page=1

  4. bytor

    bytor Well-Known Member

    Here's some additional tips out of the LM-2 manual on O2 sensor life problems.

    * Do NOT install the Bung below the 3 o'clock or 9 o'clock position. Condensation
    can form in the exhaust pipe and permanently damage the sensor. 6 o’clock is the
    absolute worst position to mount the sensor.

    * Wide band oxygen sensors, like the one shipped with the LM-2, are designed to
    work with unleaded gasoline. Use with leaded gasoline will significantly reduce the
    lifespan of the sensor. The reduction is directly proportional to the metal content of the
    fuel and the tune of the engine. In most cases, a wide band sensor will provide
    accurate measurements somewhere between 50 hours and 500 hours with leaded fuel.

    * WHEN INSTALLED IN THE EXHAUST, THE OXYGEN SENSOR MUST BE
    CONNECTED AND OPERATING WITH THE LM-2 WHENEVER THE CAR IS
    RUNNING. AN UN-POWERED OXYGEN SENSOR WILL BE DAMAGED WHEN
    EXPOSED TO EXHAUST GAS IF NOT PROPERLY POWERED.

    * The maximum temperature of the sensor at the bung (the sensor hexagon)
    should not exceed 500C or 900F. If these temperatures are exceeded in your
    application you should either install a double length bung (one inch) or the Innovate
    Motorsports Heat-Sink Bung extender (HBX-1). The double length bung is also recommended for situations where airflow is restricted.

    * It is NOT a good idea to do a sensor warm-up prior to starting the vehicle.
    Depending on the climate and the sensor position in the exhaust, condensation can
    form in the exhaust pipes. This condensation could then be blown by the exhaust
    stream against the hot sensor when the car is started. The resulting heat shock can
    permanently damage the sensor.

  5. philly

    philly solid fixture here in the forum

    you also need to be aware of what kind of chemicals you use on the threads of bung plugs, the o2 sensor itself, and what you use to clean throttle bodies and mass airflow sensors... if its going to be ingested, and the car has a functioning 02 sensor that im relying on for engine control, i use maf cleaner everywhere...



    i dont care if im cleaning throttle bodies, pcv valves, MAFs, other sensors on the manifold that may have gunk in them, i use the MAF cleaner because it does the job and does it safely with respect to both the MAF and the o2 sensor, i never spray carb cleaner, starter fluid, brake cleaner, etc into the motor because what goes in must come out and that stuff could potentially damage sensors in both the intake manifold and o2 sensors on the exhaust side.


    Attached Files:

  6. grumpyvette

    grumpyvette Administrator Staff Member

    my neighbor DAVE stopped by yesterday to have me look at a trouble code flashing on the dash of his 2010 6 cylinder manual trans camaro.
    I found it was a bad oxygen sensor the computer was indicating. P0140 HO2S Circuit Insufficient Activity Bank 1 Sensor 2 (thats the oxygen sensor past the cat on drivers side)
    After visiting the local NAPA ,ADVANCE AUTO, BENET AUTO, CITY AUTO stores, we found all of them, all quoted about $88 for the sensor and all said that they would be forced to order one and it varied from next day to 72 hours for delivery.

    [​IMG]

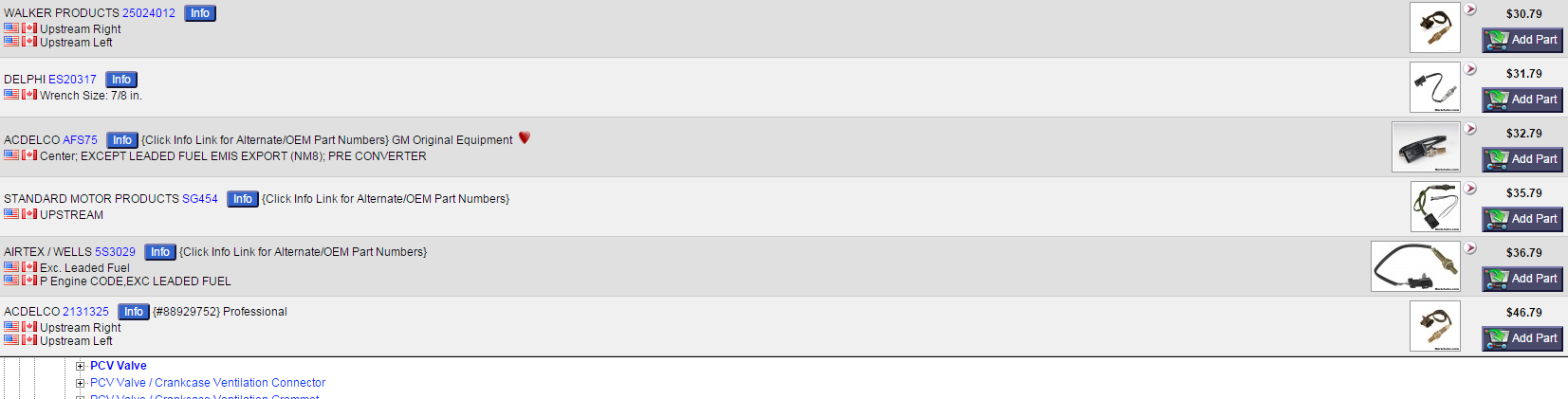

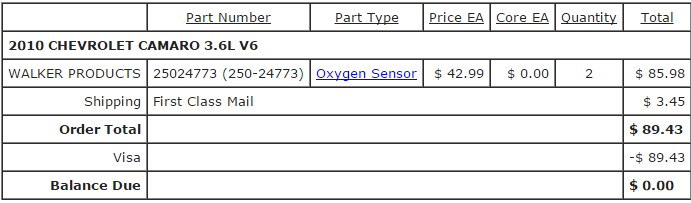

    rock auto had them at less than 50% of that cost
    http://www.rockauto.com/catalog/raf...ck[PHP_SESSION_ID]=g58drf76n90cbra6nih4detdi1

    [​IMG]

    Diagnostic Trouble Code (DTC) List - 2010 Camaro V6



    DTC DTC Descriptor
    B0012 Driver Frontal Deployment Loop Stage 1
    B0013 Driver Frontal Deployment Loop Stage 2
    B0014 Driver Side Deployment Loop
    B0015 Driver Seat Belt Pretensioner Deployment Loop
    B0016 Left Roof Rail Deployment Loop 1
    B0019 Passenger Frontal Deployment Loop Stage 1
    B0020 Passenger Frontal Deployment Loop Stage 2
    B0021 Passenger Side Deployment Loop
    B0022 Passenger Seat Belt Pretensioner Deployment Loop
    B0023 Right Roof Rail Deployment Loop 1
    B0052 Deployment Commanded
    B0074 Passenger Occupant Classification Sensor
    B0079 Driver Seat Position Sensor Circuit
    B0080 Passenger Seat Position Sensor Circuit
    B0081 Passenger Presence Detection Module
    B0083 Front End Sensor 1
    B0084 Front End Sensor 2
    B0085 Left Front Side Impact Sensor
    B0086 Right Front Side Impact Sensor
    B0158 Ambient Air Temperature Sensor Circuit
    B0193 Front Blower Motor Speed Circuit
    B0223 Recirculate Position Command 1 Circuit
    B0233 Air Flow Control Circuit
    B023A HVAC Actuators Supply Voltage
    B0283 Electric Rear Defrost Circuit
    B0408 Main Temperature Control Circuit
    B0550 Odometer Circuit
    B0685 Security System Indicator Circuit
    B0958 Parking Aid Rear Sensor Left Corner Circuit
    B0959 Parking Aid Rear Sensor Left Middle Circuit
    B0960 Parking Aid Rear Sensor Right Middle Circuit
    B0961 Parking Aid Rear Sensor Right Corner Circuit
    B1000 Electronic Control Unit
    B1001 Option Configuration

    B1015 Vehicle Identification Number Information Malfunction
    B1019 System Configuration Error
    B101D ECU Hardware
    B101E ECU Software
    B1020 Auxiliary Electronic Control Unit Performance
    B1025 Left Front Audio Output Circuit
    B1035 Right Front Audio Output Circuit
    B1045 Left Rear Audio Output Circuit
    B1055 Right Rear Audio Output Circuit
    B125C Satellite Antenna 1 Circuit
    B1271 Theft Protection Active
    B1278 Left Auxiliary Input Signal Circuit
    B1279 Right Auxiliary Input Signal Circuit
    B1287 Amplifier Control Signal Circuit
    B1325 Device Power Circuit
    B1370 Control Module Ignition On and Start Circuit
    B1380 Control Module Ignition Accessory Circuit
    B138A Control Module Voltage Reference Output Circuit
    B1405 Control Module Voltage Reference Output 2 Circuit
    B1420 Device Voltage Circuit
    B1441 Control Module Ignition Off, Run, and Start Circuit
    B1445 Control Module Voltage Output Circuit
    B1446 Replace Backup Power Source
    B1447 Backup Power Source
    B144B RUN/CRNK Relay Circuit
    B1516 Battery Current Sensor
    B1517 Battery Voltage
    B151A Low Battery Capacity Detected
    B1527 High Parasitic Load Detected
    B1529 Control Module Voltage Reference Output 5 Circuit
    B1925 Left Seat Cushion Heater Sensor Circuit
    B2170 Right Seat Cushion Heater Sensor Circuit
    B2345 Front Seat Heater Disable Circuit
    B2425 Left Seat Cushion Heater Circuit
    B242A Seat Heaters Common Circuit
    B2430 Right Seat Cushion Heater Circuit
    B2455 Cellular Phone Microphone Circuit
    B2462 Global Positioning System Antenna Malfunction
    B2470 Cellular Phone Antenna Circuit
    B2476 Cellular Phone Select Service Switch
    B2482 Cellular Phone Select Service Switch Range/Performance
    B2485 Wireless Communication Antenna Circuit (Bluetooth)
    B2530 Front Fog Lamps Control Circuit
    B2545 Backup Lamps Control Circuit
    B2560 Cargo Lamp Control Circuit
    B2575 Headlamps Control Circuit
    B257A Headlamp Switch Input Signals Mismatch
    B257B Lighting Control Switch Signal
    B2580 Headlamp High Beam Control Circuit
    B2585 Left Park Lamps Control Circuit
    B258A Low Beam Control Circuit
    B2600 Left Daytime Running Lamps Control Circuit
    B2605 Right Daytime Running Lamps Control Circuit
    B2610 Passenger Compartment Dimming 1 Circuit
    B2615 Passenger Compartment Dimming 2 Circuit
    B2645 Ambient Light Sensor Circuit
    B2652 Passenger Compartment Dimming 3 Circuit
    B2699 Right Headlamp Control Circuit
    B270A Park Lock Solenoid Control Circuit
    B2730 Interior Trunk Lid Unlatch Switch Circuit
    B2745 Traction Control Switch Circuit
    B2750 Horn Relay Secondary Circuit
    B2955 Security Sensor Data Circuit Malfunction
    B3006 Hood Ajar Circuit
    B302A Telematic Requested Immobilization
    B3031 Security System Controller In Learn Mode
    B3055 No Transponder Modulation or No Transponder
    B3060 Unprogrammed Transponder Identification Code Received
    B3101 Keyless Entry Data Link Circuit
    B3105 Keyless Entry System Key Fobs
    B3106 Keyless Entry Data Link
    B3109 Keyless Entry Transmitter 1 Battery
    B3110 Keyless Entry Transmitter 2 Battery
    B3111 Keyless Entry Transmitter 3 Battery
    B3112 Keyless Entry Transmitter 4 Battery
    B3113 Keyless Entry Transmitter 5 Battery
    B310D Keyless Entry Transmitter 6 Battery
    B310E Keyless Entry Transmitter 7 Battery
    B310F Keyless Entry Transmitter 8 Battery
    B3125 Driver Door Only Unlock Circuit
    B3130 All Doors Unlock Circuit
    B3135 All Doors Lock Circuit
    B3140 Driver Unlock Switch Circuit
    B3150 Driver Lock Switch Circuit
    B316B Driver Window Switch
    B317A Passenger Window Switch
    B3205 Driver Window Motor Circuit
    B3210 Passenger Window Motor Circuit
    B3265 Trunk Lid Unlatch Output Circuit
    B3567 Info Display Select Switch Circuit
    B3596 Hazard Lamps Request Circuit
    B3622 Steering Wheel Controls Signal Circuit
    B3650 High Beam Request Signal Circuit
    B3664 Sunroof Position Select Switch High Signal Circuit
    B3697 Sunroof Actuator
    B3715 Windshield Wiper Relay Circuit
    B3794 Cruise Control Function Request Circuit
    B3806 High Beam and Headlamp Flash Select Circuit
    B3810 Headlamp Washer Relay Circuit
    B3867 Right Park Lamps Control Circuit
    B3873 Front Washer Relay Circuit
    B3875 Windshield Wiper High Speed Relay Circuit
    B3881 Tail Lamp Circuit
    B3882 Right Tail Lamp Circuit
    B3883 License Plate Lamp Circuit
    B3884 Center High Mounted Brake Lamp Circuit
    B3902 Incorrect Immobilizer Identifier Received
    B3933 Air Conditioning Evaporator Temperature Sensor Circuit
    B3935 Transponder Authentication Error
    B3948 Left Front Turn Signal Circuit
    B3949 Right Front Turn Signal Circuit
    B3950 Left Rear Turn Signal Circuit
    B3951 Right Rear Turn Signal Circuit
    B3976 Unconfigured Transponder
    B3984 Device 1 Environment Identifier Not Programmable
    C0035 Left Front Wheel Speed Sensor Circuit
    C0040 Right Front Wheel Speed Sensor Circuit
    C0045 Left Rear Wheel Speed Sensor Circuit
    C0050 Right Rear Wheel Speed Sensor Circuit
    C0060 Left Front Dump Solenoid Valve Circuit
    C0065 Left Front Isolation Solenoid Valve Circuit
    C0070 Right Front Dump Solenoid Valve Circuit
    C0075 Right Front Isolation Solenoid Valve Circuit
    C0080 Left Rear Dump Solenoid Valve Circuit
    C0085 Left Rear Isolation Solenoid Valve Circuit
    C0090 Right Rear Dump Solenoid Valve Circuit
    C0095 Right Rear Isolation Solenoid Valve Circuit
    C0110 Pump Motor Circuit
    C0121 Valve Relay Circuit
    C0131 Antilock Braking System Pressure Circuit
    C0141 Front Prime Solenoid Valve Circuit
    C0146 Front Isolation Solenoid Valve Circuit
    C0151 Rear Prime Solenoid Valve Circuit
    C0156 Rear Isolation Solenoid Valve Circuit
    C0161 Antilock Braking System Brake Sensor Circuit
    C0186 Lateral Acceleration Sensor Circuit
    C018B Lateral Acceleration Sensor Circuit
    C0196 Yaw Rate Signal
    C019B Yaw Rate Signal
    C0242 Engine Control Module Indicated Traction Control Malfunction
    C0245 Wheel Speed Sensor Frequency
    C0267 Low Brake Fluid Indicated
    C0277 Brake Pedal Position Sensor Circuit
    C0280 Stability System Active Too Long
    C0297 Brake Applied Output Circuit
    C0550 Electronic Control Unit
    C0569 System Configuration Malfunction
    C056D Electronic Control Unit Hardware
    C056E Electronic Control Unit Software
    C0710 Steering Position Signal
    C0750 Left Front Tire Pressure Sensor
    C0755 Right Front Tire Pressure Sensor
    C0760 Left Rear Tire Pressure Sensor
    C0765 Right Rear Tire Pressure Sensor
    C0775 Tire Pressure Monitoring System Sensors Malfunction
    C078A Tire Pressure Indicator Module Internal Malfunction
    C0800 Device Power 1 Circuit Voltage
    C0890 Control Module Voltage Reference Output 3 Circuit
    P0008 Engine Position System Performance Bank 1
    P0009 Engine Position System Performance Bank 2
    P000A Intake Camshaft Position System Slow Response Bank 1
    P000B Exhaust Camshaft Position System Slow Response Bank 1
    P000C Intake Camshaft Position System Slow Response Bank 2
    P000D Exhaust Camshaft Position System Slow Response Bank 2
    P0010 Intake Camshaft Position Actuator Solenoid Valve Control Circuit Bank 1
    Camshaft Position Actuator Solenoid Valve Control Circuit
    P0011 Intake Camshaft Position System Performance Bank 1
    Camshaft Position System Performance
    P0013 Exhaust Camshaft Position Actuator Solenoid Valve Control Circuit Bank 1
    P0014 Exhaust Camshaft Position System Performance Bank 1
    P0016 Crankshaft Position - Intake Camshaft Position Not Plausible Bank 1
    Crankshaft Position - Camshaft Position Not Plausible
    P0017 Crankshaft Position - Exhaust Camshaft Position Not Plausible Bank 1
    P0018 Crankshaft Position - Intake Camshaft Position Not Plausible Bank 2
    P0019 Crankshaft Position - Exhaust Camshaft Position Not Plausible Bank 2
    P0020 Intake Camshaft Position Actuator Solenoid Valve Control Circuit Bank 2
    P0021 Intake Camshaft Position System Performance Bank 2
    P0023 Exhaust Camshaft Position Actuator Solenoid Valve Control Circuit Bank 2
    P0024 Exhaust Camshaft Position System Performance Bank 2
    P0030 HO2S Heater Control Circuit Bank 1 Sensor 1
    P0031 HO2S Heater Control Circuit Low Voltage Bank 1 Sensor 1
    P0032 HO2S Heater Control Circuit High Voltage Bank 1 Sensor 1
    P0036 HO2S Heater Control Circuit Bank 1 Sensor 2
    P0037 HO2S Heater Control Circuit Low Voltage Bank 1 Sensor 2
    P0038 HO2S Heater Control Circuit High Voltage Bank 1 Sensor 2
    P0050 HO2S Heater Control Circuit Bank 2 Sensor 1
    P0051 HO2S Heater Control Circuit Low Voltage Bank 2 Sensor 1
    P0052 HO2S Heater Control Circuit High Voltage Bank 2 Sensor 1
    P0053 HO2S Heater Resistance Bank 1 Sensor 1
    P0054 HO2S Heater Resistance Bank 1 Sensor 2
    P0056 HO2S Heater Control Circuit Bank 2 Sensor 2
    P0057 HO2S Heater Control Circuit Low Voltage Bank 2 Sensor 2
    P0058 HO2S Heater Control Circuit High Voltage Bank 2 Sensor 2
    P0059 HO2S Heater Resistance Bank 2 Sensor 1
    P0060 HO2S Heater Resistance Bank 2 Sensor 2
    P0068 Throttle Body Airflow Performance
    P0087 Fuel Rail Low Pressure
    P0088 Fuel Rail High Pressure
    P0089 Fuel Pressure Regulator Performance
    P0090 Fuel Pressure Regulator Control Circuit
    P0091 Fuel Pressure Regulator Control Circuit Low Voltage
    P0092 Fuel Pressure Regulator Control Circuit High Voltage
    P0100 Mass Air Flow Sensor Circuit
    P0101 Mass Air Flow Sensor Circuit Performance
    P0102 Mass Air Flow Sensor Circuit Low Frequency
    P0103 Mass Air Flow Sensor Circuit High Frequency
    P0106 Manifold Absolute Pressure Sensor Performance
    P0107 Manifold Absolute Pressure Sensor Circuit Low Voltage
    P0108 Manifold Absolute Pressure Sensor Circuit High Voltage
    P0111 Intake Air Temperature Sensor Performance
    P0112 Intake Air Temperature Sensor Circuit Low Voltage
    P0113 Intake Air Temperature Sensor Circuit High Voltage
    P0116 Engine Coolant Temperature Sensor Performance
    P0117 Engine Coolant Temperature Sensor Circuit Low Voltage
    P0118 Engine Coolant Temperature Sensor Circuit High Voltage
    P0119 Engine Coolant Temperature Sensor Circuit Intermittent
    P0120 Throttle Position Sensor 1 Circuit
    P0121 Throttle Position Sensor 1 Performance
    P0122 Throttle Position Sensor 1 Circuit Low Voltage
    P0123 Throttle Position Sensor 1 Circuit High Voltage
    P0128 Engine Coolant Temperature Below Thermostat Regulating Temperature
    P0130 HO2S Circuit Closed Loop Performance Bank 1 Sensor 1
    P0131 HO2S Circuit Low Voltage Bank 1 Sensor 1
    P0132 HO2S Circuit High Voltage Bank 1 Sensor 1
    P0133 HO2S Slow Response Bank 1 Sensor 1
    P0134 HO2S Circuit Insufficient Activity Bank 1 Sensor 1
    P0135 HO2S Heater Performance Bank 1 Sensor 1
    P0137 HO2S Circuit Low Voltage Bank 1 Sensor 2
    P0138 HO2S Circuit High Voltage Bank 1 Sensor 2
    P013A HO2S Slow Response Rich to Lean Bank 1 Sensor 2
    P013B HO2S Slow Response Lean to Rich Bank 1 Sensor 2
    P013C HO2S Slow Response Rich to Lean Bank 2 Sensor 2
    P013D HO2S Slow Response Lean to Rich Bank 2 Sensor 2
    P013E HO2S Delayed Response Rich to Lean Bank 1 Sensor 2
    P013F HO2S Delayed Response Lean to Rich Bank 1 Sensor 2
    P0140 HO2S Circuit Insufficient Activity Bank 1 Sensor 2
    P0141 HO2S Heater Performance Bank 1 Sensor 2
    P014A HO2S Delayed Response Rich to Lean Bank 2 Sensor 2
    P014B HO2S Delayed Response Lean to Rich Bank 2 Sensor 2
    P0150 HO2S Circuit Closed Loop Performance Bank 2 Sensor 1
    P0151 HO2S Circuit Low Voltage Bank 2 Sensor 1
    P0152 HO2S Circuit High Voltage Bank 2 Sensor 1
    P0153 HO2S Slow Response Bank 2 Sensor 1
    P0154 HO2S Circuit Insufficient Activity Bank 2 Sensor 1
    P0155 HO2S Heater Performance Bank 2 Sensor 1
    P0157 HO2S Circuit Low Voltage Bank 2 Sensor 2
    P0158 HO2S Circuit High Voltage Bank 2 Sensor 2
    P0160 HO2S Circuit Insufficient Activity Bank 2 Sensor 2
    P0161 HO2S Heater Performance Bank 2 Sensor 2
    P0171 Fuel Trim System Lean Bank 1
    P0172 Fuel Trim System Rich Bank 1
    P0174 Fuel Trim System Lean Bank 2
    P0175 Fuel Trim System Rich Bank 2
    P018B Fuel Pressure Sensor Performance
    P018C Fuel Pressure Sensor Circuit Low Voltage
    P018D Fuel Pressure Sensor Circuit High Voltage
    P0191 Fuel Rail Pressure Sensor Performance
    P0192 Fuel Rail Pressure Sensor Circuit Low Voltage
    P0193 Fuel Rail Pressure Sensor Circuit High Voltage
    P0196 Engine Oil Temperature Sensor Performance
    P0197 Engine Oil Temperature Sensor Circuit Low Voltage
    P0198 Engine Oil Temperature Sensor Circuit High Voltage
    P0201 Cylinder 1 Injector Control Circuit
    P0202 Cylinder 2 Injector Control Circuit
    P0203 Cylinder 3 Injector Control Circuit
    P0204 Cylinder 4 Injector Control Circuit
    P0205 Cylinder 5 Injector Control Circuit
    P0206 Cylinder 6 Injector Control Circuit
    P0207 Cylinder 7 Injector Control Circuit
    P0208 Cylinder 8 Injector Control Circuit
    P0218 Transmission Fluid Overtemperature
    P0219 Engine Overspeed Condition
    P0220 Throttle Position Sensor 2 Circuit
    P0221 Throttle Position Sensor 2 Performance
    P0222 Throttle Position Sensor 2 Circuit Low Voltage
    P0223 Throttle Position Sensor 2 Circuit High Voltage
    P0230 Fuel Pump Relay Control Circuit
    P0231 Fuel Pump Control Circuit Low Voltage
    P0232 Fuel Pump Control Circuit High Voltage
    P023F Fuel Pump Control Circuit
    P025A Fuel Pump Control Module Enable Circuit
    P0261 Cylinder 1 Injector Control Circuit Low Voltage
    P0262 Cylinder 1 Injector Control Circuit High Voltage
    P0264 Cylinder 2 Injector Control Circuit Low Voltage
    P0265 Cylinder 2 Injector Control Circuit High Voltage
    P0267 Cylinder 3 Injector Control Circuit Low Voltage
    P0268 Cylinder 3 Injector Control Circuit High Voltage
    P0270 Cylinder 4 Injector Control Circuit Low Voltage
    P0271 Cylinder 4 Injector Control Circuit High Voltage
    P0273 Cylinder 5 Injector Control Circuit Low Voltage
    P0274 Cylinder 5 Injector Control Circuit High Voltage
    P0276 Cylinder 6 Injector Control Circuit Low Voltage
    P0277 Cylinder 6 Injector Control Circuit High Voltage
    P029D Cylinder 1 Injector Leak Detected
    P02A1 Cylinder 2 Injector Leak Detected
    P02A5 Cylinder 3 Injector Leak Detected
    P02A9 Cylinder 4 Injector Leak Detected
    P02AD Cylinder 5 Injector Leak Detected
    P02B1 Cylinder 6 Injector Leak Detected
    P0300 Engine Misfire Detected
    P0301 Cylinder 1 Misfire Detected
    P0302 Cylinder 2 Misfire Detected
    P0303 Cylinder 3 Misfire Detected
    P0304 Cylinder 4 Misfire Detected
    P0305 Cylinder 5 Misfire Detected
    P0306 Cylinder 6 Misfire Detected
    P0307 Cylinder 7 Misfire Detected
    P0308 Cylinder 8 Misfire Detected
    P0315 Crankshaft Position System Variation Not Learned
    P0324 Knock Sensor Module Performance
    P0325 Knock Sensor Circuit Bank 1
    P0326 Knock Sensor Performance Bank 1
    Knock Sensor Performance
    P0327 Knock Sensor Circuit Low Voltage Bank 1
    P0328 Knock Sensor Circuit High Voltage Bank 1
    P0330 Knock Sensor Circuit Bank 2
    P0331 Knock Sensor Performance Bank 2
    P0332 Knock Sensor Circuit Low Voltage Bank 2
    P0333 Knock Sensor Circuit High Voltage Bank 2
    P0335 Crankshaft Position Sensor Circuit
    P0336 Crankshaft Position Sensor Performance
    P0338 Crankshaft Position Sensor Circuit High Duty Cycle
    P0340 Camshaft Position Sensor Circuit
    P0341 Intake Camshaft Position Sensor Performance Bank 1
    Camshaft Position Sensor Performance
    P0342 Intake Camshaft Position Sensor Circuit Low Voltage Bank 1
    P0343 Intake Camshaft Position Sensor Circuit High Voltage Bank 1
    P0346 Intake Camshaft Position Sensor Performance Bank 2
    P0347 Intake Camshaft Position Sensor Circuit Low Voltage Bank 2
    P0348 Intake Camshaft Position Sensor Circuit High Voltage Bank 2
    P0351 Ignition Coil 1 Control Circuit
    P0352 Ignition Coil 2 Control Circuit
    P0353 Ignition Coil 3 Control Circuit
    P0354 Ignition Coil 4 Control Circuit
    P0355 Ignition Coil 5 Control Circuit
    P0356 Ignition Coil 6 Control Circuit
    P0357 Ignition Coil 7 Control Circuit
    P0358 Ignition Coil 8 Control Circuit
    P0366 Exhaust Camshaft Position Sensor Performance Bank 1
    P0367 Exhaust Camshaft Position Sensor Circuit Low Voltage Bank 1
    P0368 Exhaust Camshaft Position Sensor Circuit High Voltage Bank 1
    P0391 Exhaust Camshaft Position Sensor Performance Bank 2
    P0392 Exhaust Camshaft Position Sensor Circuit Low Voltage Bank 2
    P0393 Exhaust Camshaft Position Sensor Circuit High Voltage Bank 2
    P0420 Catalyst System Low Efficiency Bank 1
    P0430 Catalyst System Low Efficiency Bank 2
    P0442 Evaporative Emission System Small Leak Detected
    P0443 Evaporative Emission Purge Solenoid Valve Control Circuit
    P0446 Evaporative Emissions Vent System Performance
    P0449 Evaporative Emission Vent Solenoid Valve Control Circuit
    P0450 Fuel Tank Pressure Sensor Circuit
    P0451 Fuel Tank Pressure Sensor Performance
    P0452 Fuel Tank Pressure Sensor Circuit Low Voltage
    P0453 Fuel Tank Pressure Sensor Circuit High Voltage
    P0454 Fuel Tank Pressure Sensor Circuit Intermittent
    P0455 Evaporative Emission System Large Leak Detected
    P0458 Evaporative Emission Purge Solenoid Valve Control Circuit Low Voltage
    P0459 Evaporative Emission Purge Solenoid Valve Control Circuit High Voltage
    P0461 Fuel Level Sensor Performance
    P0462 Fuel Level Sensor Circuit Low Voltage
    P0463 Fuel Level Sensor Circuit High Voltage
    P0464 Fuel Level Sensor 1 Circuit Intermittent
    P0480 Cooling Fan Relay 1 Control Circuit
    P0481 Cooling Fan Relay 2 Control Circuit
    Cooling Fan Relays 2 and 3 Control Circuit
    P0496 Evaporative Emission System Flow During Non-Purge
    P0497 Evaporative Emission System No Flow During Purge
    P0498 Evaporative Emission Vent Solenoid Valve Control Circuit Low Voltage
    P0499 Evaporative Emission Vent Solenoid Valve Control Circuit High Voltage
    P0501 Vehicle Speed Sensor Performance
    P0502 Vehicle Speed Sensor Circuit Low Voltage
    P0503 Vehicle Speed Sensor Circuit Intermittent
    P0506 Idle Speed Low
    P0507 Idle Speed High
    P050A Cold Start Idle Air Control System Performance
    P0513 Immobilizer Key Incorrect
    P0521 Engine Oil Pressure Sensor Performance
    P0522 Engine Oil Pressure Sensor Circuit Low Voltage
    P0523 Engine Oil Pressure Sensor Circuit High Voltage
    P0532 Air Conditioning Refrigerant Pressure Sensor Circuit Low Voltage
    P0533 Air Conditioning Refrigerant Pressure Sensor Circuit High Voltage
    P0556 Brake Booster Pressure Sensor Performance
    P0557 Brake Booster Pressure Sensor Circuit Low Voltage
    P0558 Brake Booster Pressure Sensor Circuit High Voltage
    P0562 System Voltage Low
    P0563 System Voltage High
    P0564 Cruise Control Multifunction Switch Circuit
    P0567 Cruise Control Resume Switch Circuit
    P0568 Cruise Control Set Switch Circuit
    P0571 Cruise Control Brake Switch Circuit
    P0572 Brake Switch Circuit 1 Low Voltage
    P0573 Brake Switch Circuit 1 High Voltage
    P0575 Cruise Control Switch Signal Circuit
    P0601 Control Module Read Only Memory
    P0602 Transmission Control Module Read Only Memory Control Module Not Programmed
    P0603 Transmission Control Module Not Programmed Control Module Long Term Memory Reset
    P0604 Transmission Control Module Long Term Memory Reset Control Module Random Access Memory Performance
    P0606 Transmission Control Module Random Access Memory Control Module Internal Performance
    P0607 Control Module Performance
    P060D Control Module Accelerator Pedal Position System Circuitry Performance
    P0615 Starter Relay Control Circuit
    P0616 Starter Relay Control Circuit Low Voltage
    P0617 Starter Relay Control Circuit High Voltage
    P0621 Generator L-Terminal Circuit
    P0622 Generator F-Terminal Circuit
    P0625 Generator F-Terminal Circuit Low Voltage
    P0626 Generator F-Terminal Circuit High Voltage
    P0627 Fuel Pump Enable Circuit
    P0628 Fuel Pump Enable Circuit Low Voltage
    P0629 Fuel Pump Enable Circuit High Voltage
    P062B Control Module Fuel Injector Control Performance
    P062F Control Module Long Term Memory Performance
    P0633 Immobilizer Key Not Programmed
    P0634 Transmission Control Module Overtemperature
    P0638 Throttle Actuator Control Command Performance
    P0641 5-Volt Reference 1 Circuit
    P0642 5-Volt Reference 1 Circuit Low Voltage
    P0643 5-Volt Reference 1 Circuit High Voltage
    P0645 Air Conditioning Compressor Clutch Relay Control Circuit
    P0646 Air Conditioning Compressor Clutch Relay Control Circuit Low Voltage
    P0647 Air Conditioning Compressor Clutch Relay Control Circuit High Voltage
    P064A Fuel Pump Control Module Performance
    P0650 Malfunction Indicator Lamp Control Circuit
    P0651 5-Volt Reference 2 Circuit
    P0652 5-Volt Reference 2 Circuit Low Voltage
    P0653 5-Volt Reference 2 Circuit High Voltage
    P0658 Solenoid High Control Circuit Group 1 Low Voltage
    P0659 Solenoid High Control Circuit Group 1 High Voltage
    P0667 Transmission Control Module Temperature Sensor Performance
    P0668 Transmission Control Module Temperature Sensor Circuit Low Voltage
    P0669 Transmission Control Module Temperature Sensor Circuit High Voltage
    P0685 Engine Controls Ignition Relay Control Circuit
    P0686 Engine Controls Ignition Relay Control Circuit Low Voltage
    P0687 Engine Controls Ignition Relay Control Circuit High Voltage
    P0689 Engine Controls Ignition Relay Feedback Circuit Low Voltage
    P0690 Engine Controls Ignition Relay Feedback Circuit High Voltage
    P0691 Cooling Fan Relay 1 Control Circuit Low Voltage
    P0692 Cooling Fan Relay 1 Control Circuit High Voltage
    P0693 Cooling Fan Relay 2 Control Circuit Low Voltage
    P0694 Cooling Fan Relay 2 Control Circuit High Voltage
    P0697 5-Volt Reference 3 Circuit
    P0698 5-Volt Reference 3 Circuit Low Voltage
    P0699 5-Volt Reference 3 Circuit High Voltage
    P069E Fuel Pump Control Module Requested MIL Illumination
    P06A6 5-Volt Reference Performance
    P06AC Transmission Control Module Power Up Temperature Sensor Performance
    P06AD Transmission Control Module Power Up Temperature Sensor Circuit Low Voltage
    P06AE Transmission Control Module Power Up Temperature Sensor Circuit High Voltage
    P0700 Transmission Control Module Requested MIL Illumination
    P0703 Brake Switch Circuit 2
    P0711 Transmission Fluid Temperature Sensor Performance
    P0712 Transmission Fluid Temperature Sensor Circuit Low Voltage
    P0713 Transmission Fluid Temperature Sensor Circuit High Voltage
    P0716 Input Speed Sensor Performance
    P0717 Input Speed Sensor Circuit Low Voltage
    P0722 Output Speed Sensor Circuit Low Voltage
    P0723 Output Speed Sensor Circuit Intermittent
    P0741 Torque Converter Clutch – Stuck Off
    P0742 Torque Converter Clutch – Stuck On
    P0751 Shift Solenoid 1 Valve Performance – Stuck Off
    P0752 Shift Solenoid 1 Valve Performance – Stuck On
    P0756 Shift Solenoid 2 Valve Performance – Stuck Off
    P0776 Clutch Pressure Control Solenoid 2 – Stuck Off
    P0777 Clutch Pressure Control Solenoid 2 – Stuck On
    P0796 Clutch Pressure Control Solenoid 3 – Stuck Off
    P0797 Clutch Pressure Control Solenoid 3 – Stuck On
    P0801 Reverse Lockout Solenoid Control Circuit
    P0806 Clutch Pedal Position Sensor Circuit Performance
    P0807 Clutch Pedal Position Sensor Circuit Low Voltage
    P0808 Clutch Pedal Position Sensor Circuit High Voltage
    P080A Clutch Pedal Position Not Learned
    P080C Skip Shift Solenoid Control Circuit Low Voltage
    P080D Skip Shift Solenoid Control Circuit High Voltage
    P0815 Upshift Switch Circuit
    P0816 Downshift Switch Circuit
    P0826 Up and Down Shift Switch Circuit
    P0842 Transmission Fluid Pressure Switch 1 Circuit Low Voltage
    P0843 Transmission Fluid Pressure Switch 1 Circuit High Voltage
    P0850 Park/Neutral Position Switch Circuit
    P0851 Park/Neutral Position Switch Circuit Low Voltage
    P0852 Park/Neutral Position Switch Circuit High Voltage
    P0856 Traction Control Torque Request Circuit
    P0872 Transmission Fluid Pressure Switch 3 Circuit Low Voltage
    P0873 Transmission Fluid Pressure Switch 3 Circuit High Voltage
    P0877 Transmission Fluid Pressure Switch 4 Circuit Low Voltage
    P0878 Transmission Fluid Pressure Switch 4 Circuit High Voltage
    P0961 Line Pressure Control Solenoid System Performance
    P0962 Line Pressure Control Solenoid Control Circuit Low Voltage
    P0963 Line Pressure Control Solenoid Control Circuit High Voltage
    P0965 Clutch Pressure Control Solenoid 2 System Performance
    P0966 Clutch Pressure Control Solenoid 2 Control Circuit Low Voltage
    P0967 Clutch Pressure Control Solenoid 2 Control Circuit High Voltage
    P0969 Clutch Pressure Control Solenoid 3 System Performance
    P0970 Clutch Pressure Control Solenoid 3 Control Circuit Low Voltage
    P0971 Clutch Pressure Control Solenoid 3 Control Circuit High Voltage
    P0973 Shift Solenoid 1 Control Circuit Low Voltage
    P0974 Shift Solenoid 1 Control Circuit High Voltage
    P0976 Shift Solenoid 2 Control Circuit Low Voltage
    P0977 Shift Solenoid 2 Control Circuit High Voltage
    P0989 Transmission Fluid Pressure Switch 5 Circuit Low Voltage
    P0990 Transmission Fluid Pressure Switch 5 Circuit High Voltage
    P1101 Intake Air Flow System Performance
    P1133 HO2S Insufficient Switching Bank 1 Sensor 1
    P1153 HO2S Insufficient Switching Bank 2 Sensor 1
    P1255 Fuel Pump Control Module Driver Over-temperature
    P1258 Engine Coolant Overtemperature – Protection Mode Active
    P1380 Misfire Detected – Rough Road Data Not Available
    P1381 Misfire Detected and No Communication With Brake Control Module
    P1400 Cold Start Emission Reduction Control System
    P1516 Throttle Actuator Control Module Throttle Actuator Position Performance
    P1551 Throttle Valve Rest Position Not Reached During Learn
    P162B Remote Vehicle Speed Limiting Signal Message Counter Incorrect
    P1631 Immobilizer Fuel Enable Signal Not Correct
    P1649 Immobilizer Security Code Not Programmed
    P167D Control Module Ignition Coil Internal Circuit
    P1682 Ignition 1 Switch Circuit 2
    P1751 Shift Valve 1 Performance
    P1761 Up and Down Shift Switch Signal Circuit
    P182E Internal Mode Switch - Invalid Range
    P1876 Up and Down Shift Enable Switch Circuit
    P1915 Internal Mode Switch Does Not Indicate Park/Neutral During Start
    P2066 Fuel Level Sensor 2 Performance
    P2067 Fuel Level Sensor 2 Circuit Low Voltage
    P2068 Fuel Level Sensor 2 Circuit High Voltage
    P2088 Intake Camshaft Position Actuator Solenoid Valve Control Circuit Low Voltage Bank 1
    P2089 Intake Camshaft Position Actuator Solenoid Valve Control Circuit High Voltage Bank 1
    P2090 Exhaust Camshaft Position Actuator Solenoid Valve Control Circuit Low Voltage Bank 1
    P2091 Exhaust Camshaft Position Actuator Solenoid Valve Control Circuit High Voltage Bank 1
    P2092 Intake Camshaft Position Actuator Solenoid Valve Control Circuit Low Voltage Bank 2
    P2093 Intake Camshaft Position Actuator Solenoid Valve Control Circuit High Voltage Bank 2
    P2094 Exhaust Camshaft Position Actuator Solenoid Valve Control Circuit Low Voltage Bank 2
    P2095 Exhaust Camshaft Position Actuator Solenoid Valve Control Circuit High Voltage Bank 2
    P2096 Post Catalyst Fuel Trim System Low Limit Bank 1
    P2097 Post Catalyst Fuel Trim System High Limit Bank 1
    P2098 Post Catalyst Fuel Trim System Low Limit Bank 2
    P2099 Post Catalyst Fuel Trim System High Limit Bank 2
    P2100 Throttle Actuator Control Motor Control Circuit
    P2101 Throttle Actuator Position Performance
    P2105 Throttle Actuator Control System – Forced Engine Shutdown
    P2119 Throttle Closed Position Performance
    P2120 Accelerator Pedal Position Sensor 1 Circuit
    P2122 Accelerator Pedal Position Sensor 1 Circuit Low Voltage
    P2123 Accelerator Pedal Position Sensor 1 Circuit High Voltage
    P2125 Accelerator Pedal Position Sensor 2 Circuit
    P2127 Accelerator Pedal Position Sensor 2 Circuit Low Voltage
    P2128 Accelerator Pedal Position Sensor 2 Circuit High Voltage
    P2135 Throttle Position Sensor 1-2 Correlation
    P2138 Accelerator Pedal Position Sensor 1-2 Correlation
    P2146 Cylinder 1 Injector High Control Circuit
    P2149 Cylinder 2 Injector High Control Circuit
    P2152 Cylinder 3 Injector High Control Circuit
    P2155 Cylinder 4 Injector High Control Circuit
    P216A Cylinder 5 Injector High Control Circuit
    P216D Cylinder 6 Injector High Control Circuit
    P2176 Minimum Throttle Position Not Learned
    P2177 Fuel Trim System Lean at Cruise or Acceleration Bank 1
    P2178 Fuel Trim System Rich at Cruise or Acceleration Bank 1
    P2179 Fuel Trim System Lean at Cruise or Acceleration Bank 2
    P2180 Fuel Trim System Rich at Cruise or Acceleration Bank 2
    P2187 Fuel Trim System Lean at Idle Bank 1
    P2188 Fuel Trim System Rich at Idle Bank 1
    P2189 Fuel Trim System Lean at Idle Bank 2
    P2190 Fuel Trim System Rich at Idle Bank 2
    P219A Fuel Trim Cylinder Balance Bank 1
    P219B Fuel Trim Cylinder Balance Bank 2
    P2227 Barometric Pressure Sensor Performance
    P2228 Barometric Pressure Sensor Circuit Low Voltage
    P2229 Barometric Pressure Sensor Circuit High Voltage
    P2232 HO2S Signal Circuit Shorted to Heater Circuit Bank 1 Sensor 2
    P2235 HO2S Signal Circuit Shorted to Heater Circuit Bank 2 Sensor 2
    P2270 HO2S Signal Stuck Lean Bank 1 Sensor 2
    P2271 HO2S Signal Stuck Rich Bank 1 Sensor 2
    P2272 HO2S Signal Stuck Lean Bank 2 Sensor 2
    P2273 HO2S Signal Stuck Rich Bank 2 Sensor 2
    P2300 Ignition Coil 1 Control Circuit Low Voltage
    P2301 Ignition Coil 1 Control Circuit High Voltage
    P2303 Ignition Coil 2 Control Circuit Low Voltage
    P2304 Ignition Coil 2 Control Circuit High Voltage
    P2306 Ignition Coil 3 Control Circuit Low Voltage
    P2307 Ignition Coil 3 Control Circuit High Voltage
    P2309 Ignition Coil 4 Control Circuit Low Voltage
    P2310 Ignition Coil 4 Control Circuit High Voltage
    P2312 Ignition Coil 5 Control Circuit Low Voltage
    P2313 Ignition Coil 5 Control Circuit High Voltage
    P2315 Ignition Coil 6 Control Circuit Low Voltage
    P2316 Ignition Coil 6 Control Circuit High Voltage
    P2534 Ignition 1 Switch Circuit Low Voltage
    P2544 Transmission Torque Request Circuit
    P2548 Vehicle Dynamics System Torque Request Signal Message Counter Incorrect
    P258A Vacuum Pump Relay Control Circuit
    P258B Vacuum Pump Performance
    P258C Vacuum Pump Relay Control Circuit Low Voltage
    P258D Vacuum Pump Relay Control Circuit High Voltage
    P2610 Control Module Ignition Off Timer Performance
    P2635 Fuel Pump Flow Performance
    P2636 Fuel Transfer Pump Flow Insufficient
    P2714 Clutch Pressure Control Solenoid 4 – Stuck Off
    P2715 Clutch Pressure Control Solenoid 4 – Stuck On
    P2719 Clutch Pressure Control Solenoid 4 System Performance
    P2720 Clutch Pressure Control Solenoid 4 Control Circuit Low Voltage
    P2721 Clutch Pressure Control Solenoid 4 Control Circuit High Voltage
    P2723 Clutch Pressure Control Solenoid 5 – Stuck Off
    P2724 Clutch Pressure Control Solenoid 5 – Stuck On
    P2728 Clutch Pressure Control Solenoid 5 System Performance
    P2729 Clutch Pressure Control Solenoid 5 Control Circuit Low Voltage
    P2730 Clutch Pressure Control Solenoid 5 Control Circuit High Voltage
    P2762 Torque Converter Clutch Pressure Control Solenoid System Performance
    P2763 Torque Converter Clutch Pressure Control Solenoid Control Circuit High Voltage
    P2764 Torque Converter Clutch Pressure Control Solenoid Control Circuit Low Voltage
    P3400 Cylinder Deactivation System Performance
    P3401 Cylinder 1 Deactivation Solenoid Control Circuit
    P3425 Cylinder 4 Deactivation Solenoid Control Circuit
    P3441 Cylinder 6 Deactivation Solenoid Control Circuit
    P3449 Cylinder 7 Deactivation Solenoid Control Circuit
    U0001 High Speed CAN Communication Bus
    U0002 High Speed CAN Bus
    U0020 Low Speed CAN Communication Bus Performance
    U0073 Control Module Communication Bus Off
    U0074 Control Module Communication Bus B Off
    U0100 – U0299 Lost Communication With XXX Control Module
    U0301 Software Incompatibility with Engine Control Module
    U0315 Software Incompatibility with Electronic Brake Control Module
    U0400 – U05FF Invalid Data Received
    U1500 – U15BF Inter-Device Dedicated Bus
    U1814 Powertrain Wake Up Communication Circuit
    U18B9 Primary High Speed CAN Bus Subnet Configuration List
    U18BF Secondary High Speed CAN Bus Subnet Configuration List
    U2099 High Speed Communication Enable Circuit
    U2100 Controller Area Network Bus Communication
    U2101 Controller Area Network Bus Maximum Configuration List
    U2103 Fewer Controllers On Bus Than Programmed
    U2105 – U2199 Lost Communication With XXX Control Module

    Last edited by a moderator: Nov 27, 2015
  7. Grumpy

    Grumpy The Grumpy Grease Monkey mechanical engineer. Staff Member

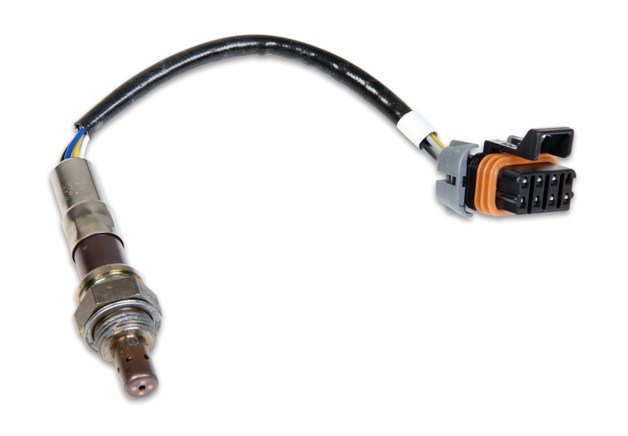

    the o2 sensors for the camaro arrived
    [​IMG]
    [​IMG]
    [​IMG]

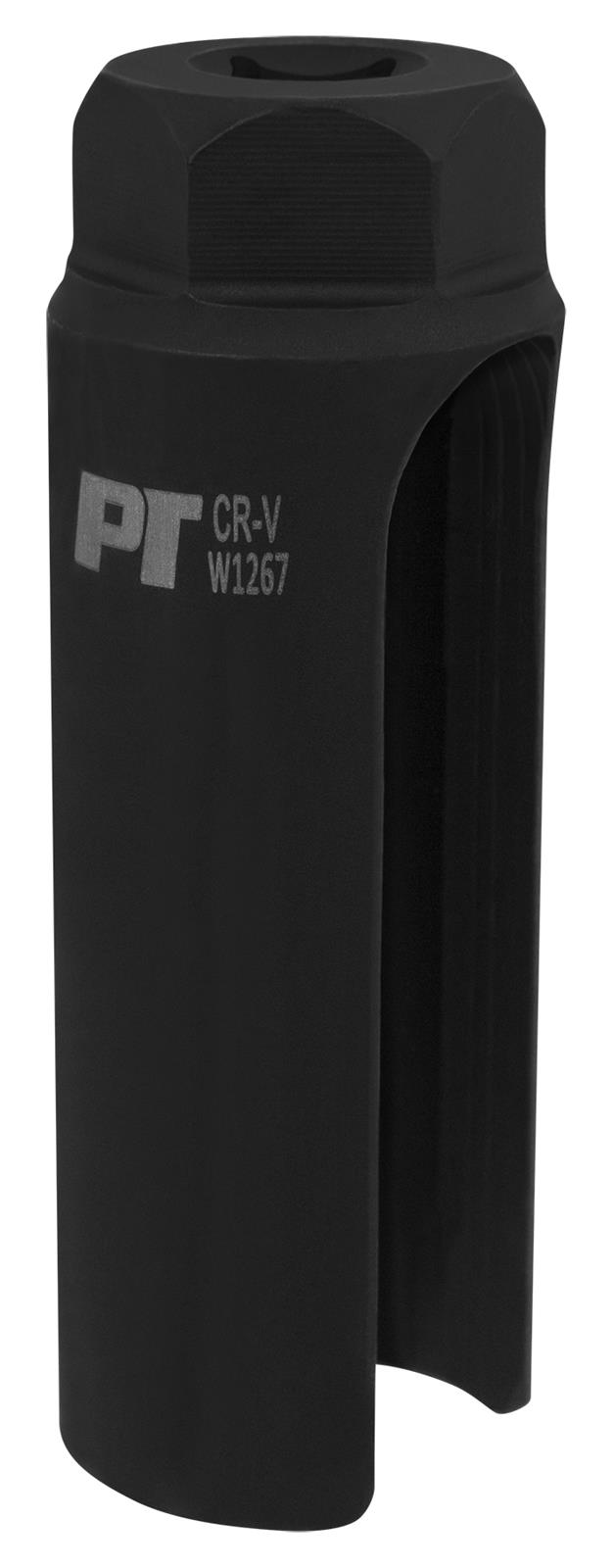

    a 22mm open end wrench and some penetrating oil plus a couple light strikes with a 3 lb mallet gut the old oxygen sensors to un-thread , the new oxygen sensors threads were coated with anti-seize, paste that came in a very small tube in each package.
    I then installed them, and tie-wrapped the plugs and wires away from the exhaust pipes to prevent heat damage too the wire insulation.
    I then removed the trouble codes from the computer in the car, and test drove the camaro and found the parts being replaced had cured the issue as expected.

    Last edited: Nov 7, 2018
  8. Grumpy

    Grumpy The Grumpy Grease Monkey mechanical engineer. Staff Member

    fact! a 1994 corvettes about 21 years old and OXYGEN sensors are located in the exhaust pipes with in a foot or so of the engine,
    where they get blasted with repeated rather extreme heat and cooling cycles,
    mild acids and if your car sat a great deal (like the low 49K mileage sure indicates the chances of moisture, old fuel, rust and loose,
    electrical , wiring connections effecting the oxygen sensors function after 21 years is going to nearly CERTAIN!
    yes pulling trouble codes will generally help isolate the source and the dash check for problem indicator light is almost sure to show,
    the OXYGEN SENSORS and MAYBE THE CATALYTIC CONVERTERS need to be replaced on a 21 year old low mileage car!
    the car may run fairly well but its certainly a fact that the O2 sensor function is likely to degrade over time and yes I would replace both sensors,and carefully inspect the catalytic converters

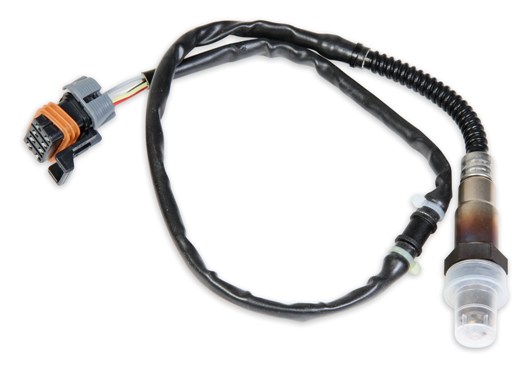

    LT1 and LT4 run Four (4) oxygen sensors.

    One in front of each catalytic converter.

    One behind each catalytic converter.


    [​IMG]

    http://www.rockauto.com/

    [​IMG]

    Last edited: Sep 3, 2015
  9. Grumpy

    Grumpy The Grumpy Grease Monkey mechanical engineer. Staff Member

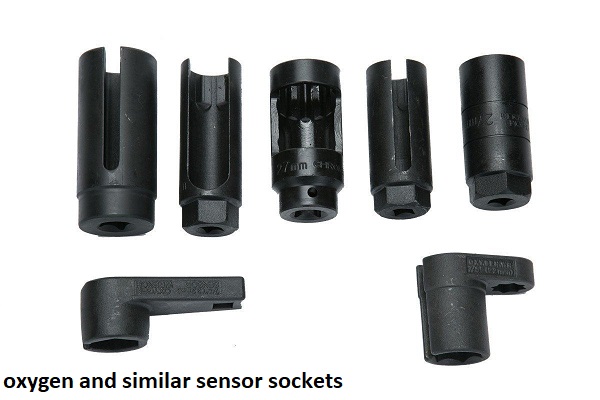

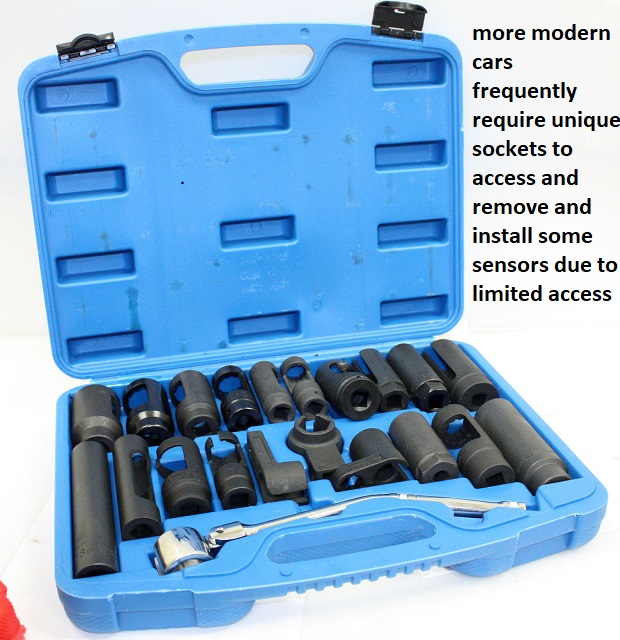

    keep in mind oxygen sensors are a bit like spark plugs and disc brake pads and fan belts,
    in that they are a well known consumable that will need to be replaced every so often.
    personally I think G.M. hired the most devious and sadistic PRICK they could find to engineer the exact LEAST ACCESSIBLE
    location ,on the cars exhaust system, they could locate to use as the preferred angle and location,
    for many of the oxygen sensors.. I'm sure he got a bonus for creativity , and extra sadistic
    input


    [​IMG]

    [​IMG]


Share This Page
