1988 C4 Instrument Cluster Has Stopped Working

[Grumpy]

have a 1988 C4 that I had to replace the wiring harness and before installing. I made sure all joints were soldered and all wires were good. When finished installing I did not have my instrument cluster. I do have all the idiot light, blinkers, high beams. They bright and dim as they are supposed too. I have rechecked all the grounds to make sure I had not missed any. I have checked connections with multimeter.
My question is does anyone have a guide of the wiring or know where I can get one. I think if I had a guide to tell me where the power is supposed to be coming from and all the fusible links.
Also if you have any advice I would greatly appreciate it. Thanks for your time

in many cases a quick check with a multi meter will show you a burnt resistor, loose connections, bad soldering or a defective fuse is the source of dash light failures, the reason most dash repair jobs cost so much is very few people are not, very reluctant to tear apart a corvette dash assembly to find out what's required, to repair it if it stops working.

C4 Corvette 1985-1989 Digital Cluster Speedometer Display | Corvette Mods

anyone owning a corvette should own
a FACTORY SHOP MANUAL
for the year corvette they own,

step one,
CAREFULLY check all fuses and grounds

http://garage.grumpysperformance.co...ing-down-an-electrical-drain.8493/#post-29779

step two
pull trouble codes

if you had a c4 corvette this might also help

tracking down the problem getting the engine started​

If your car won,t start consistently, you need to isolate the problem to the source, you can,t isolate the cause without understanding the process, so you may as well start looking into how and why each step in the process starts , and how each step functions and triggers the next step. your...
garage.grumpysperformance.com

1988 C4 Instrument Cluster Has Stopped Working​

have a 1988 C4 that I had to replace the wiring harness and before installing. I made sure all joints were soldered and all wires were good. When finished installing I did not have my instrument cluster. I do have all the idiot light, blinkers, high beams. They bright and dim as they are...
garage.grumpysperformance.com

Relay/s, Voltage Drop/s, Current Flow, Grounds and ... more​

A relay is nothing more than a device that uses a low-current signal to operate a high-current circuit, he solenoid on your starter is a type of relay that uses the low-current signal from your starter switch to operate the high-current circuit between the battery and the starter motor...
garage.grumpysperformance.com

c4 & c5 corvette trouble codes​

if your corvette won,t start or run, don,t panic its usually easy to locate the problems source, buy a CHEVY SHOP MANUAL FOR YOUR YEAR CORVETTE! RULE#1 never assume a damn thing ISOLATE ,TEST AND VERIFY http://www.professionalequipment.com/ex ... ermometer/ Wide temperature range from -58 to...
garage.grumpysperformance.com

cooling off that c4 corvette​

your stock corvette http://garage.grumpysperformance.com/index.php?threads/thoughts-on-cooling.149/page-3#post-107697 has a rather marginal cooling system if your engines been modified for significantly higher hp levels, that cooling system can be significantly improved upon.I run into this...
garage.grumpysperformance.com

https://www.autozone.com/diy/repair...ring-diagrams-repair-guide-p-0900c1528008fd94

CHECK ALL YOUR FUSES WITH A MULTI METER
links and sub links may help

http://garage.grumpysperformance.com/index.php?threads/c4-c5-corvette-trouble-codes.2697/

http://garage.grumpysperformance.co...h-flicker-on-dash-and-radio.13593/#post-70202

http://garage.grumpysperformance.co...elay-switch-locations-and-info.728/#post-9217


http://garage.grumpysperformance.co...er-repair-or-replacement-link.1006/#post-8030

Do You Stop And Logically Isolate And Test Or Just Start Swapping Parts?

Honestly, I have to wonder at times about the thought process or in many cases the lack of thought and research that I see going on.I don,t know about the guys you might know, but it seems all too common for guys I know to find something amiss, or out of adjustment and they immediately just...

garage.grumpysperformance.com

hard starting TPI, crossfire or LT1 vette

one of the more frequent complaints I hear about is c-4 corvettes that have difficulty or intermittent start problems. or occasionally I hear about intermittent missing, that needs to be isolated and tracked down to be corrected. READ THE THREAD THRU TO THE END AND BE AWARE THAT THIS THREAD...

garage.grumpysperformance.com

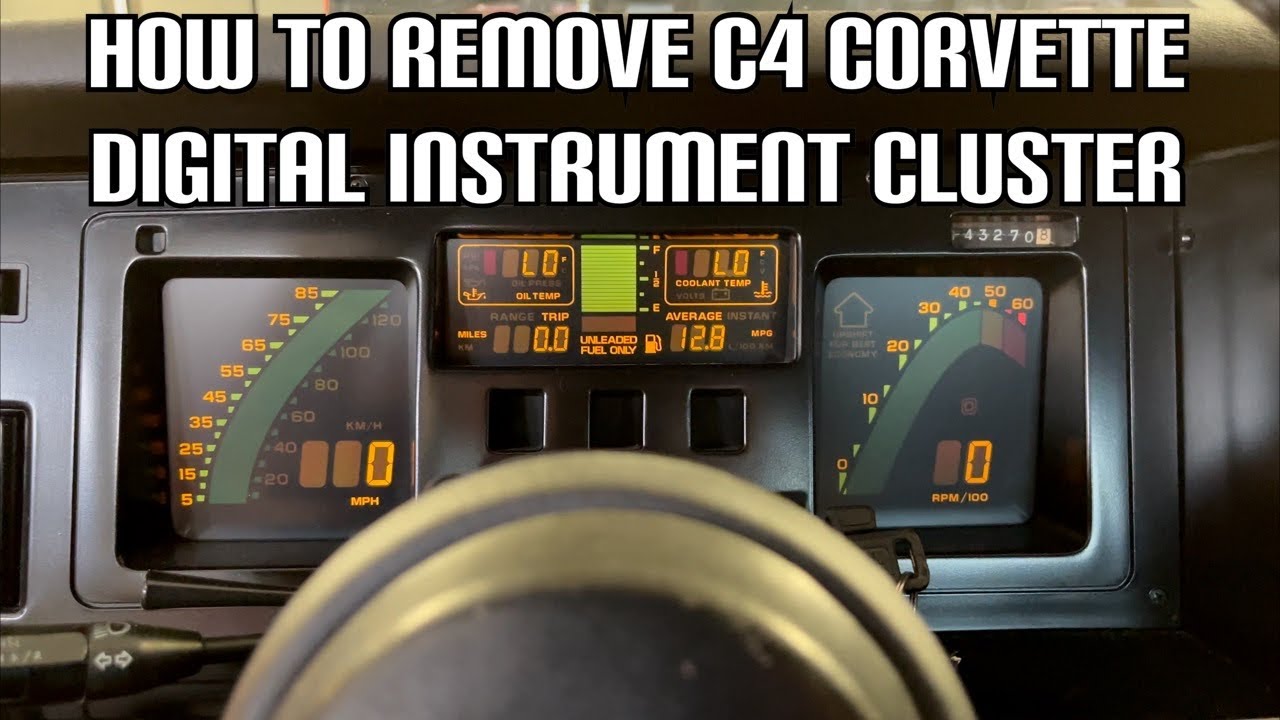

How To Remove C4 Corvette Digital Dash
