460 and Tunnel Ram

the throttle body fuel injection does NOT PROVIDE the advantages of a true MPFI with an injector in each intake port

Im sure a decent performance machine shop can drill your tunnel ram intake and add the required fuel rails and injector bungs
new weld in injector bungs, fuel rails and injectors are rather easy to find and purchase.
any experienced machine shop can modify an existing aluminum tunnel ram intake to have injectors, fuel rails, etc.


if theres one thing that you'll be forced to learn, on this web-site,
its reading through all the links and sub-links will help a great deal...

closely followed by having the correct tools , and learning to use them also helps

it usually will be to your benefit to do careful research and doing a detailed look over your options,
before you decide on any particular parts selection helps reduce costs,and reduce mistakes
example
lets say your looking at EFI intakes and find almost what you want but it has 32 lb injectors vs the 50 lb rated injectors you really want, it never hurts to ask if you can order the intake with the other injector size in many cases you have that option at a minimal cost but its not a listed option,


Owning and having the skills to correctly use a tig welder or a MIG, welder,

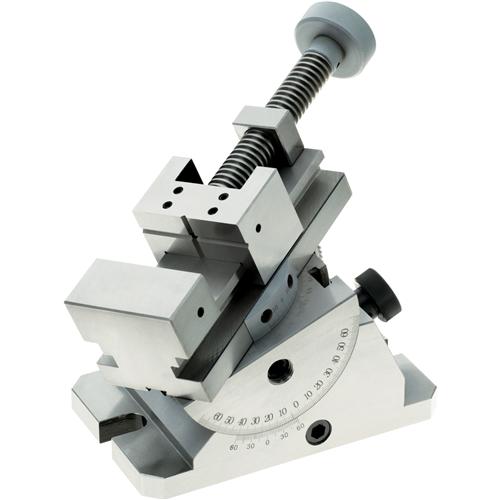

\ set up to weld aluminum and a drill press with a precision vise would be helpful
http://garage.grumpysperformance.com/index.php?threads/bits-of-tig-welding-info.295/
http://garage.grumpysperformance.com/index.php?threads/mig-or-tig.72/

http://garage.grumpysperformance.com/index.php?threads/most-versital-shop-welder.1594/

http://garage.grumpysperformance.com/index.php?threads/shield-gas-selection-for-welding.1108/


http://www.airflowresearch.com/ford/bbf-bullitt-14-cylinder-head/

http://www.force-efi.com/machefi.htm

https://www.eastwood.com/tig200acdc.html











https://www.holley.com/products/intakes/hi-ram_manifolds/parts/1993

http://garage.grumpysperformance.com/index.php?threads/moding-your-carb-intake-for-mpfi.3148/

http://garage.grumpysperformance.co...ed-a-dual-58mm-throttle-body-on-your-tpi.290/

https://www.cartechbooks.com/techtips/chevy-big-block-performance-electronic-fuel-injection-guide/

https://www.amazon.com/How-Rebuild-Ford-V-8-Engines/dp/0895860368

http://www.hotrod.com/articles/ccrp-0602-big-block-ford-engine-build/

http://www.enginebuildermag.com/2016/08/building-a-ford-460-stroker/

Last edited:
the throttle body fuel injection does NOT PROVIDE the advantages of a true MPFI with an injector in each intake port

Im sure a decent performance machine shop can drill your tunnel ram intake and add the required fuel rails and injector bungs
new weld in injector bungs, fuel rails and injectors are rather easy to find and purchase.
any experienced machine shop can modify an existing aluminum tunnel ram intake to have injectors, fuel rails, etc.


if theres one thing that you'll be forced to learn, on this web-site,
its reading through all the links and sub-links will help a great deal...

closely followed by having the correct tools , and learning to use them also helps

it usually will be to your benefit to do careful research and doing a detailed look over your options,
before you decide on any particular parts selection helps reduce costs,and reduce mistakes
example
lets say your looking at EFI intakes and find almost what you want but it has 32 lb injectors vs the 50 lb rated injectors you really want, it never hurts to ask if you can order the intake with the other injector size in many cases you have that option at a minimal cost but its not a listed option,

Owning and having the skills to correctly use a tig welder or a MIG, welder,
\ set up to weld aluminum and a drill press with a precision vise would be helpful
http://garage.grumpysperformance.com/index.php?threads/bits-of-tig-welding-info.295/
http://garage.grumpysperformance.com/index.php?threads/mig-or-tig.72/

http://garage.grumpysperformance.com/index.php?threads/most-versital-shop-welder.1594/

http://garage.grumpysperformance.com/index.php?threads/shield-gas-selection-for-welding.1108/


http://www.airflowresearch.com/ford/bbf-bullitt-14-cylinder-head/

http://www.force-efi.com/machefi.htm

https://www.eastwood.com/tig200acdc.html











https://www.holley.com/products/intakes/hi-ram_manifolds/parts/1993

http://garage.grumpysperformance.com/index.php?threads/moding-your-carb-intake-for-mpfi.3148/

http://garage.grumpysperformance.co...ed-a-dual-58mm-throttle-body-on-your-tpi.290/

https://www.cartechbooks.com/techtips/chevy-big-block-performance-electronic-fuel-injection-guide/

https://www.amazon.com/How-Rebuild-Ford-V-8-Engines/dp/0895860368

http://www.hotrod.com/articles/ccrp-0602-big-block-ford-engine-build/

http://www.enginebuildermag.com/2016/08/building-a-ford-460-stroker/
Good advise and better performance there are allot of good management systems you could batch fire a tunnel ram from a mega-squirt pretty cheap. By the way batch vs. sequential is a huge debate performance is better along with fuel mileage on a sequential EFI but cost is also much greater for the ECU. Budget wise will determine this for you also some EFI ECUs can control spark which is nice.

Last edited by a moderator:
Here is my list of parts in I plan to buy.

If you can come up with a cam card and flow rates for your heads, I could run a simulation on
your build. Then I can compare that to other camshafts to see where the difference lies. The more
data the more accurate the simulation. But I would also want to tell you that the numbers are
usually inflated a bit. The better use of my simulation is to compare different scenarios.

If possible I would also need ....
Compression Ratio or the specs to calculate the Static CR and Dynamic CR. See graphic below for
the parameters needed. Or you can calculate your own numbers with from this Excel Spread Sheet
and provide the Intake Valve Closing angle (IVC) to me. You can ignore the "Gasket Diameter" and
"Top Ring Height", for they are really insignificant to the final number. It's just against my nature
to ignore something that effects the final calculation.

http://garage.grumpysperformance.co...comp-ratio-cranking-pressure-calculator.4458/

link too bore vs stroke info on hundreds of engines
http://users.erols.com/srweiss/tablersn.htm

Last edited by a moderator:
Thank y'all for everything. I want to do this right the first time. I will collect as much information as possible and post it to get an calculation.

10:1 compression and long tube headers was also what I had in mind.
When I first sat out to build my car. EFI was always a goal. It's easier on the engine and more efficient.

Hopefully, I'm going try to send my block out with a set of ARP studs to prep my block by the end of the month.

Efi is awesome but go with a ecu that can control timing if you can. Nothing that getting rid of that dizzy and so many points to throw timing off.

I will collect as much information as possible and post it to get an calculation.
When you are ready, please summaries all the specs at the same time. It's hard and time
consuming to re-read the whole thread trying to figure the specs and what changed and
changed back and ...... Well you get the idea ! :cool:

Building a Ford 460 Stroker




Bob McDonald,AUTHOR





Off-the-shelf stroker kits are commonly available for the 460 engine. This kit consisted of a 4.500” stroke forged micro-polished crankshaft, forged pistons with 35 cc dish, SFI approved damper, and 6.700” H-beam connecting rods.
Any automotive enthusiast would agree that the quest for more power is the true addiction. From simple bolt-ons to hardcore internals such as different bore and stroke combinations tend to fuel our burning desire. Every enthusiast seems to have a passion for a particular brand of manufacturer.

Take for instance the Flathead Ford V8 engine. Even though this engine was before my time, it’s amazing at the following this particular powerplant has. This engine was first produced in 1932 and 84 years later there are tons of aftermarket parts available for about any engine combination you can think of.


Another engine of the Ford family that is still gaining steam is the 385 series, most commonly known as the 429 and 460. Both blocks share the same bore of 4.36” but have different strokes. The 429 has a stroke of 3.59” and the 460 has a stroke of 3.85”.

Some say that the label of the 385 series came from the crankshaft stroke of the 460 because you could take a 429 block and install 460 crankshaft and pistons and have 460 cubic inches. They both shared a lot of the same internals and there were different levels of performance offered by Ford with changes to the heads, intake, camshaft, and carburetor.

The 385 series engine was first introduced in 1968 and was produced until 1997. Almost 20 years after the end of production, with the help of the aftermarket, these engines are still making huge power today.


As an automotive technician, I have had the opportunity to work on several 385 series engines yet never really grasped its full power potential. I knew these engines had a real fan base for racing applications, but not having an opportunity to modify one I could not understand the “craze” behind them. Several months ago, I had an opportunity to build a drag racing 460 engine and would like to share the experience.
Just as with any other project, in order to make big power from a 460 engine you need to start with a good block. The most common production block casting numbers are C8VE-B, C9VE-B, D0VE-A, D1VE, and D9TE-AB.

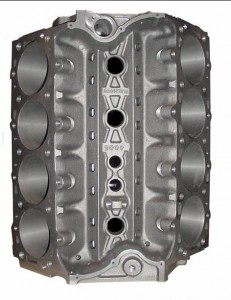

The D9TE-AB block is considered a late-style block, being produced from 1979 until 1997. This late-style engine is externally balanced (the others prior to 1979 were internally balanced) and uses a crankshaft with slightly smaller counterweights. The counterweights are smaller because the block has deeper cylinders of almost a quarter-inch toward the oil pan. Rumor has it that this was done so that the engine could be used in heavy-duty applications where deeper piston skirts could be used.

Because of the deeper cylinders, early block internals could be used into the later block, but some clearance tweaking may be needed to clear the counterweights of early style crankshafts. Since internally balanced assemblies are preferred for racing it is better to use an early style block such as the D0VE-A since it would have thicker main caps and may or may not be a four bolt main. But, if you are building a stroker engine the D9TE block may offer more rigidity with the deeper cylinders.

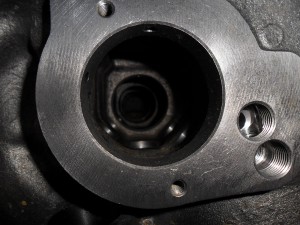

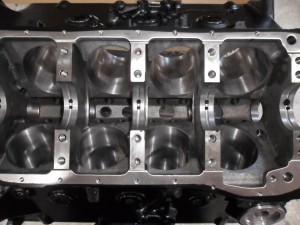

One important thing to consider about the 385 series engines is its oiling system. If you’re going to make a huge amount of power it would be wise to use an aftermarket block. The 429 and 460 do not incorporate priority main oiling. Oil is pumped from the oil pan through the oil filter and into the front main galley of the block where the front main journal and front cam journal are pressurized. From there, oil enters the passenger side lifter valley then to the drivers side lifter valley and then branches down the rest of the camshaft journals and finally to the rest of the main journals.

There have been some extensive modifications done to factory blocks to incorporate priority main oiling, but the block will still lack some of the other features and benefits offered from an aftermarket block.

Aftermarket blocks are often overlooked because the price may not be as appealing as the prized junkyard block you may have found at a great deal. But, let’s look closer at the “actual” cost of a junkyard find. Remember that by the time you figure the price of the engine along with cleaning, magnafluxing, sonic checking, decking, align honing, and boring, you’ll probably only save around $300 of the price of an aftermarket block.

There are several options available to consider when purchasing an aftermarket block based on the application and future potential of the engine. There are entry level versions that have high nickel content casting, 4-bolt main caps 1 through 5, priority main oiling, and bore size up to 4.500”. Racing blocks have a solid ladder valley tray, Siamese cylinder bores, billet steel bearing caps, and bores capable of 4.700”. The great thing is that these blocks come with a number of options that are available when ordering such as bore size, variety of lifter bore sizes, main bearing size (Cleveland main size available) and cam bearing size.

Production cylinder heads for the 385 series engines were cast iron. Each cylinder head casting number has its own level of performance based on its intended application. These heads are known as “Poly Angle” or “Canted Valve” heads because the valves open towards the bore centerline unshrouding the valve as they open. Here is a list of a few different casting numbers and the application to help guide your project if you choose to use factory cast heads. Even though the intake ports are huge, the intake to exhaust flow ratio is poor. Small porting modifications done on the exhaust side can often help tremendously.

260 to 270 cc intake ports

C8VE – Introduced the first year of the 385 series engine. The 429 was introduced in the 1968 Thunderbird as the “Thunderjet” and the 1968 Lincoln had the 460. Combustion chambers were 75 to 77 ccs and valve sizes were 2.09” intake and 1.65” exhaust. The exhaust ports need work as the port has poor flow.

C9VE – Basically the same as the C8VE used for the 1969 model year with some engineering revisions.

D0VE-C – Used in the beginning of the 1970 model year until the end of 1971. Similar to the earlier head casting but suffered from limited airflow and poor exhaust.

290 to 300 cc intake ports
D2OE-AA, D2OE-AB, and D3AE-FE – Known as the Police Interceptor head produced from 1972 through 1974, it is very similar to the Cobra Jet castings with slightly smaller intake ports. Valve sizes are 2.19” intake and 1.72” exhaust with combustion chamber size between 87 and 90 ccs. These were a great alternative to Cobra Jet castings because they were so plentiful. They offered better exhaust flow and good power in street engines up to 6,000 rpm.

300 to 310 cc intake ports
D00E-R – Cobra and Super Cobra Jet casting. Combustion chamber volumes vary between 71 to 75 ccs. Valve sizes are 2.24” intake and 1.72” exhaust with the both the intake and exhaust ports being larger. Flows more air than the Police Interceptor cylinder head and with some port work will make more power.

Starting in the early 1980s, Ford Performance introduced several different versions of aluminum cylinder heads for the 385 series engines.

M-6049-A460 – Known as the “A460” produced from 1980 until 1990. Produced as strictly race heads requiring special pistons and intake

M-6049-B460 – Known as the “B460” produced from 1980 until 1990. Essentially, these were a street version of the “A460” with smaller ports. This cylinder head never gained any popularity.

M-6049-C460 – Known as the “C460” produced from 2000 until present. Step up from the A460 cylinder heads with capability of 1000 horsepower. Require special pistons with a minimal bore size of 4.500”. The cylinder head will require porting with special cast intake, rocker arms, and headers.

M-6049-D460 – Known as “D460” which is an offspring of the C460 with the only difference being the provisions of more head bolts per cylinder.

M-6049-E460 – Known as the “E460 used in Pro Stock racing 10 years ago. These cylinder heads were produced and sold in “raw” form meaning that the intake and exhaust ports along with the combustion chamber requires special machining along with the use of a fabricated intake and other custom components.

M-6049-A429 – Known as the “A429” and was produced from 1992 until 1999. It is the same cylinder head as the cast iron D00E-R in aluminum form. Had an intake valve size of 2.25”

M-6049-B429 and M-6049-C429 – Also known as the “B429” and C429” cylinder heads these were the same as the “A429”. The only difference was that they were produced with a 1-degree difference in valve angle from the A429. Because of this difference in valve angle as valve lifts reached above .700” the valves would barely touch on the overlap. The intake valve was reduced to 2.20” to eliminate interference in high valve lift applications.

M-6049-SCJ – Produced from 2000 to present with 2.20” intake valve and 1.76” exhaust valve. Most popular Ford Performance head with redesigned valve angles and locations to reduce cylinder wall shrouding and revised combustion chamber design for centrally located valves.
In the aftermarket there are manufacturers of cylinder heads that use similarities of the Ford Performance cylinder heads with other enhancements or revisions. The part number will represent the style of cylinder he
ad with these modifications such as the A460, B460, etc.

There is one manufacturer that produces a CNC version cast iron head known as the “F460”.

Being intrigued by the performance potential and availability of aftermarket parts for a 460 we decided to build a stroker version for street use. The basis of the engine build came from a customer who wanted something for a 1965 Ford F100 truck he was restoring in pro-street style. There was not per say a budget for the build, but the customer did want to achieve power along with reliability.

After looking for on-the-shelf parts we came up with a combination that was quite surprising. We knew our best option was to choose an aftermarket sportsman-style block with four bolt mains, priority main oiling, and a 4.390” bore. This would be a .030” over stock bore because pistons are more common using a .030” and .080” over bore in stroker applications. Aftermarket cylinder heads have relatively small combustion chambers usually in the mid to low 70s, so the piston would need a 35 cc dish.

The bottom end would consist of a forged crankshaft with a 4.500” stroke with big block Chevrolet connecting rod journals, 6.700” connecting rod, with a 4.390” bore yielding 545 cubic inches. The cylinder heads we used had 72cc combustion chambers and with the bottom end combination the compression ended up at 10.6:1.

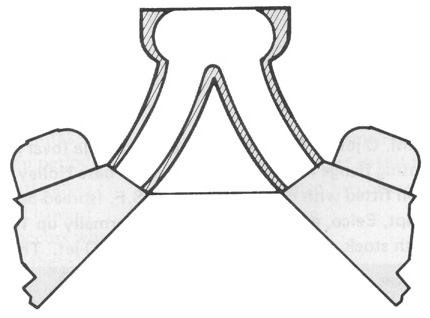

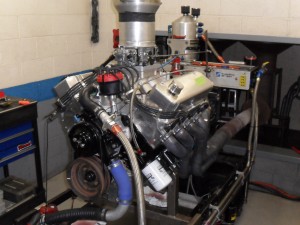

For the intake we choose a single plane with a Dominator flange because the customer wanted to use a 1050 cfm 4500 style carburetor. With no special modifications to the cylinder block and acquiring parts that were “as cast” such as cylinder heads and intake manifold, the dyno numbers were quite impressive.

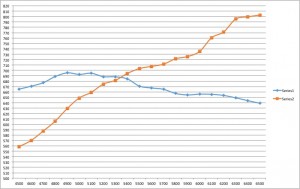

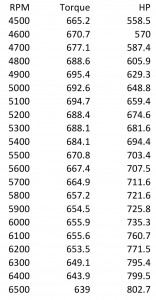

Other than checking all clearances and having a custom ground camshaft and a nice oil pan the engine was more than enough for this F100 on pump gasoline. The only custom piece on the entire build was the headers, which had to be fabricated to fit the truck chassis. As you can see from the dyno chart at left, a 460 stroker engine has a lot of merit for performance use.

I’ve found that it is always an enjoyable venture when dealing with different engine builds because each one has its own history. The 385 series engine was a sure win for those individuals who appreciate Ford performance.

What is going to be the nomenclature of your short block? A Big Block Ford like this is going to need a good strong foundation, with torque and horsepower in 600-700 range strength will be paramount!

Its going to be real hard for a young guy to buy all aftermarket parts for a Ford 460 V8.
Entire Driveline will have $30,000 - 40,000 cash in it.
C6 was Fords Best Automatic transmission.
Turbo 400 is used now with an aftermarket Bellhousing to mate up.

1970 Ford 460 heads are wanted.
Or over the counter Ford Super Cobrajet heads.
Use the The Ford 460 Block.
The weak spot is the cam tunnel.
Super aggressive cams not wanted.

The 460 Ford in my old 1973 Lincoln Mark IV moved the huge land yaht with ease.
It was fast for a big car.

Its going to be real hard for a young guy to buy all aftermarket parts for a Ford 460 V8.
Entire Driveline will have $30,000 - 40,000 cash in it.
C6 was Fords Best Automatic transmission.
Turbo 400 is used now with an aftermarket Bellhousing to mate up.

1970 Ford 460 heads are wanted.
Or over the counter Ford Super Cobrajet heads.
Use the The Ford 460 Block.
The weak spot is the cam tunnel.
Super aggressive cams not wanted.

The 460 Ford in my old 1973 Lincoln Mark IV moved the huge land yaht with ease.
It was fast for a big car.

Not so! It can still be done for a lot less with the right kid that wants it and has the knowledge to do it. I had a 1976 Mark IV Lincoln in 1985 with a 460 bored .120 with the Cobra Jet Heads and a Weinand Tunnel ram with 2 750 Hollys , C6 tranny and 3.73 posi rear end. All work done by me except the engine block, boring/cleaning with an align bore. All for less than $3000.00. Car lasted many years until the tranny blew apart and came throughout the car and would out run any Factory Camaro/Mustang. Sold engine to a guy that ran a Pinto S/W Drag car that he never could handle.

At the drag strip it would be a $100.00 just to run me and a $100.00 to look under the hood for each person. Made lots of money with that car. Best time was 10.75 in the 1/4 mile.Not bad for a 4800 lb car.

Not so! It can still be done for a lot less with the right kid that wants it and has the knowledge to do it. I had a 1976 Mark IV Lincoln in 1985 with a 460 bored .120 with the Cobra Jet Heads and a Weinand Tunnel ram with 2 750 Hollys , C6 tranny and 3.73 posi rear end. All work done by me except the engine block, boring/cleaning with an align bore. All for less than $3000.00. Car lasted many years until the tranny blew apart and came throughout the car and would out run any Factory Camaro/Mustang. Sold engine to a guy that ran a Pinto S/W Drag car that he never could handle.

At the drag strip it would be a $100.00 just to run me and a $100.00 to look under the hood for each person. Made lots of money with that car. Best time was 10.75 in the 1/4 mile.Not bad for a 4800 lb car.
I meant the usual SBC Route here to power applied to a Big Block Ford 460.
All New aftermarket block, New Forged or Billet crank, Rods, Pistons, State of the art new aluminum heads, ect.
Not one single OEM Bolt left.

Fords are expensive Full Race all New.

Good advise and better performance there are allot of good management systems you could batch fire a tunnel ram from a mega-squirt pretty cheap. By the way batch vs. sequential is a huge debate performance is better along with fuel mileage on a sequential EFI but cost is also much greater for the ECU. Budget wise will determine this for you also some EFI ECUs can control spark which is nice.
I have tunnelram mpfi in my 509bbc and it works realy good, instant throttle response ,good torque down low and can cruise torque converter locked in highway
Megasquirt controller wastedspark ignition,megatrans controls 4l80e transmission

I would get TFS heads and match cfm flow iwant. 290 or 325 cfm as fast cast heads and work them if they need phosphor bronze tubes or valve job check cc and polish smooth the chamber only and nock down any sharp edges in there (heat risers) . Super Victor II single carb and velocity stack, or have Colorado hot rod twin carbs with their plenum tops ported and modded as needed on weiand tunnel ram, or normal single carb plenum on holley street ram or weiand tunnel ram or any. The forged hyper alloy pistons smooth round piston sharp edges polished smooth piston tops , 460 with 10.5 to 1 static compression ratio (or if feeling really over- confident 11-1 scr) lifter bores bored to mopar diameter size if meat permitting. Correct rate conical or beehive springs, comp cams solid roller 292/298 -254/260* @.o50" and 0.671"/ 0.678" lifts respectively on 110 lsa / 106 lca. 1.73 comp pro chromoly roller rockers. Comp Cams solid roller cam with MOPAR SIZE isky EZ roller HYDRAULIC roller lifters. Or if meat permitting 1" lifter bore for 1" comp cams top fuel roller lifters this allows more aggressive lobes or walks already aggressive lobes. jetting for near 12.5;1 Air Fuel Ratio at peak tq. and near 15:1 as climb for fuel economy efficiency and power. Expert built 1000hp automatic overdrive transmission, dedicated controlled trans cooling system for converter. 3500 stall extra tight ratio nitrous style converter for part throttle handling/ driving. get an expensive one from magazine and talk to their expert ,dont get a lame converter or lose all your power to tires, major mistake of many a big block and cars and engines with girth and weight although your 1968 torino is a medium light vehicle the engine is heavier than the puny engines. Or use your awesome gutsy 5 speed. Engine band 3000-7200 range. 3.42 through 5.13 gears depending on tires transmission etc. . Really what is your budget, and real expectations for a more accurate build?

Last edited:
I would get TFS heads and match cfm flow iwant. 290 or 325 cfm as fast cast heads and work them if they need phosphor bronze tubes or valve job check cc and polish smooth the chamber only and nock down any sharp edges in there (heat risers) . Super Victor II single carb and velocity stack, or have Colorado hot rod twin carbs with their plenum tops ported and modded as needed on weiand tunnel ram, or normal single carb plenum on holley street ram or weiand tunnel ram or any. The forged hyper alloy pistons smooth round piston sharp edges polished smooth piston tops , 460 with 10.5 to 1 static compression ratio (or if feeling really over- confident 11-1 scr) lifter bores bored to mopar diameter size if meat permitting. Correct rate conical or beehive springs, comp cams solid roller 292/298 -254/260* @.o50" and 0.671"/ 0.678" lifts respectively on 109 lsa / 105 lca. 1.73 comp pro chromoly roller rockers. Comp Cams solid roller cam with MOPAR SIZE isky EZ roller HYDRAULIC roller lifters. jetting for near 12.5;1 Air Fuel Ratio at peak tq. and near 15:1 as climb for fuel economy efficiency and power. Expert built 1000hp automatic overdrive transmission, dedicated controlled trans cooling system for converter. 3500 stall extra tight ratio nitrous style converter for part throttle handling/ driving. get an expensive one from magazine and talk to their expert ,dont get a lame converter or lose all your power to tires, major mistake of many a big block and cars and engines with girth and weight although your 1968 torino is a medium light vehicle the engine is heavier than the puny engines. Or your awesome gutsy 5 speed. Engine band 3000-7200 range. 3.42 through 5.13 gears depending on tires transmission etc. . Really what is your budget, and real expectations for a more accurate build?
Big Block Fords are expensive once you get away from OEM parts.
They make superb Power I have witnessed.
Dip into High 7's 1/4 mile normal aspirated.

He is a Young guy yet. Has not been online in a while here.
Recall he bought an early Chevy C10 pickup for driving daily & likely playing with that yet.

I'm BACK! I was looking at some C10s. But I ended up with a very good 2001 S10 with working AC!


I joined this site when I first bought my unused still in its block and crank. At the time, my job had a nightmarish man power problem. So I was getting lots of over time. But allot of stuff happened by then. I also put my Torino on the back burner at a attempt to enroll in police academy. But something else came up to keep that from happening.
Right now I am about to complete a small house. After that I am going focus everything on my Torino.
Without the overtime, there is no way I can afford all new parts.
I noticed cheaper new in box tunnel rams pop up on craigslist allot. I'm still thinking going that route along with EFI. I found a guy that has unused police interceptor heads.
I plan to get those heads as soon as I can. Then I'm going to keep an eye out for a good NIB tunnel ram modify to EFI. I guess I'm going to be doing a lot of junk yard hopping to find parts for my car.
