oil pump mods & related info

[Grumpy]

Free Shipping on Orders Over $109 at Summit Racing

Find Parts and Accessories 3/4" tube oil pump pickups KEYWORD and get Free Shipping on Orders Over $109 at Summit Racing!

www.summitracing.com

big block chevy oil pumps - JEGS High Performance

1 million+ parts, 800+ brands-all in-stock at guaranteed best prices. Buy by 11pm & your order ships same-day. Trust JEGS to get it right. Shop now!

www.jegs.com

Oil Pump Selection: Is High Pressure Or High Volume Better?

Many feel a high-volume oil pump is a necessity for a high-performance engine. Find out what our professional sources have to say about that.

www.chevyhardcore.com

Rule of thumb is you want a minimum of 12/15 psi oil pressure per 1000 rpm on a healthy Chev small block.
Depending on what type of oil pump you have 15 to 20 psi at idle is normal.
As you say there is a difference in pressure between roller and flat, solid and hydraulic lifter engines.
your oil pump pick-up must be 3/8"-1/2" off the oil pan floor to function correctly
some time spent with a dremel tool ,and you having some skill and knowledge,
can make a decent oil pump flow significantly better.

Oil Pump Springs - Free Shipping on Orders Over $109 at Summit Racing

Find Oil Pump Springs and get Free Shipping on Orders Over $109 at Summit Racing!

www.summitracing.com

Chevy Car & Truck Parts and Accessories | Summit Racing

Guaranteed low prices on car and truck parts for most Chevy models, including Camaro, Corvette, Chevelle, Nova, Silverado, Suburban, Cavalier & more.

www.summitracing.com

Canton Racing Oil Pump Spring For Big Block Chevy High Pressure 50-75 PSI - 22-180

Canton Racing Oil Pump Spring For Big Block Chevy High Pressure 50-75 PSI - 22-180 A higher pressure bypass spring in an oil pump forces more oil through the engine while a lower pressure spring allows for more oil to be recycled within the pump. This sp

www.lethalperformance.com

Oil Pump Spring - JEGS High Performance

1 million+ parts, 800+ brands-all in-stock at guaranteed best prices. Buy by 11pm & your order ships same-day. Trust JEGS to get it right. Shop now!

www.jegs.com

Google Search

http://www.summitracing.com/parts/mel-77070/overview/
Oil Pump Springs, 70 psi, Steel, Pink, Pins, Chevy, Big Block, Kit

http://www.summitracing.com/parts/mel-7760m/overview/

http://www.summitracing.com/parts/stf-35250/overview/

J

Thread 'How Bad Did I Mess Up…?'

Mar 13, 2025

All,

I think I “newbie’d” my new oil pump. Any advice would be greatly appreciated.
…even if it’s “replace that new pump and do better next time”.

Melling 10553ST
1969 L46 SBC - unmodified / stock
Oil pan & gasket getting replaced
Figured I do the oil pump after reading the thread at:
garage.grumpysperformance.com/index.php?threads/installing-an-oil-pump-pick-up-tube.1800/#post-43110

First time changing pressure springs and I was using available tools.
Drove out old roll pin w/ punch & hammer, as carefully as possible. Had some heavy cardboard under it to minimize any marring.
Removed...

• jc.bn69.c3
• Replies: 12
• Forum: Oil and Lube Systems

Melling 55070
70 psi, Steel, Pink, Pins, Chevy, Small Block, Kit
Melling 77070
Oil Pump Springs, 70 psi, Steel, Pink, Pins, Chevy, Big Block, Kit
Melling 55058
Oil Pump Springs, 58 psi, Steel, Yellow, Pins, Chevy, Small Block, Kit
Melling 55078
Oil Pump Springs, 78 psi, Steel, Green, Pins, Chevy, Small Block, Kit
Melling 77060
Oil Pump Springs, 60 psi, Steel, Black, Pins, Chevy, Big Block, Kit
Melling 55049
Oil Pump Springs, 49 psi, Steel, Green, Pins, Chevy, Small Block, Kit
Melling 77052
Oil Pump Springs, 52 psi, Steel, Purple, Pins, Chevy, Big Block, Kit
Melling 7770M
Oil Pump Springs, 70 psi, Steel, Pink, Chevy, Big Block, Set of 5
Melling 5556F
Oil Pump Springs, 55 psi of Force, Steel, Chevy, Small Block, Set of 5
Melling 5570F
Oil Pump Springs, 70 psi, Steel, Pink, Chevy, Small Block, Set of 5
Melling 7760M
Oil Pump Springs, 60 psi, Steel, Black, Chevy, Big Block, Set of 5
Melling 7752M
Oil Pump Springs, 52 psi, Steel, Purple, Chevy, Big Block, Set of 5



[Grumpy]

yeah I'm well aware you would prefer to skip reading links, but if you want to learn it requires a bit of effort on your part
the more you know, the better the choices you make!
keep in mind oil pumps provide the volume of oil flow, PRESSURE is the resistance to that volume of oil flow,
and generally the larger the bearing clearances are the larger the volume of oil flow you'll need,
to increase the gauge pressure, you'll see.
remember shimming an oil pressure pump spring is ALWAYS a bad idea, (use the correct spring) and the oil pressure relief spring has zero effect on your oil pressure other than controlling the point where the oil pump bye-pass pressure port opens, it has no effect on oil pressure or flow below that peak pressure


use the correct tool to seat the oil pump pick-up using a wrench and hammer often distorts the tube
but you can fabricate a tool similar to this much cheaper

https://www.summitracing.com/parts/mel-mcat-75

https://www.summitracing.com/parts/mel-mcat-62

yeah reading the linked and sub linked info helps a great deal
you could do yourself a favor by reading that linked info

Shimming An Oil Pump Relief Spring

I was recently asked HOW to shim an oil pump relief spring to gain added oil pressure!:rolleyes: SHORT ANSWER NEVER SHIM THE OIL PUMP SPRING!! many pumps come with two springs , one standard and one high pressure you should NEVER shim an oil pumps pressure relief spring back in the...

garage.grumpysperformance.com

safety wire locking fasteners

Doing the Twist: Checking Fastener Tightness A loose nut or bolt can doom even the best effort on race day. Following these simple steps beforehand can help keep your car on the track From the February, 2009 issue of Stock Car Racing properly used lock wire assures the bolts stay where you left...

garage.grumpysperformance.com

oil system mods that help

heres a short list REMEMBER the object or goal in building and maintaining the lubrication system is too maintain a 100% dependable pressurized cooling flow of lubricant to the bearings, rockers ,valves etc. your most important tool, is your ability to think about how things are supposed to...

garage.grumpysperformance.com

installing an oil pump pick-up tube

there's two ways ,...... you can use the correct tool, which is ADVISABLE! use this oil pump(link below) in most stock SBC builds, as it produces a 10% increase in oil volume and standard pressure which is just fine , but obviously check your bearing clearances and oil pump to oil pan floor...

garage.grumpysperformance.com

Oil pump priming

I have attempted to prime and pre oil the system in my 355 build using the tool shown on Grumpy's stickys but am not sure if all is as it should be. The filter was filled pre installation and the balance of the 5 quarts of oil poured into the lifter valley. The tool in inserted and run with a...

garage.grumpysperformance.com

how your oil pumps pressure bye-pass circuit works,

theres seems to be a lot of mis-information about , how the oil pump regulates its pressure curve, and the related subject of shimming oil pump springs and how your oil pumps pressure bye-pass circuit works. PRESSURE, that you see displayed on the oil pressure gauge is a measure of the...

garage.grumpysperformance.com

trash in the oil passages, and improved oil flow mods

while your engines running theres several gallons of oil per minutes circulating thru your blocks oil pump and the blocks internal oil passages, if you have any crud suspended in that oil like particles of sealant or micro bits of bearing or cam lobe etc, its pumped, thru the oil system along...

garage.grumpysperformance.com

bearings and oil flow

Bearings and oil flow, some of the most important processes in engine assembly are related to getting the bearing clearances and oil flow and pressure rates set up to provide the correct oil flow rates and pressure for cooling and preventing direct surface to surface contact on the rotating...

garage.grumpysperformance.com

testing a chevy oil pump

PLEASE READ THE LINKS FIRST http://garage.grumpysperformance.com/index.php?threads/shimming-an-oil-pump-relief-spring.16240/ http://www.carcraft.com/techarticles/cc ... ewall.html http://www.moroso.com/catalog/pdf/Oil_Pumps_106.pdf http://www.autozone.com/autozone/access ... 67591_0_0_...

garage.grumpysperformance.com

lining up oil feed holes in bearings shells

I just got an e-mail asking what to do if you find that the blocks oil feed passage holes don,t line up exactly right with the holes in the oil feed holes in bearings shells? http://garage.grumpysperformance.com/index.php?threads/viscosity-centistoke.15612/ paint, marker etc. tends to...

garage.grumpysperformance.com

http://garage.grumpysperformance.com/index.php?threads/basic-info-on-your-v8-lube-system.52/

http://garage.grumpysperformance.com/index.php?threads/bearings-and-oil-flow.150/



[Grumpy]

its really a good idea to BRAZE the oil pump pick-up to the pump body
(welds tend to be brittle on steel to cast iron welds)
use of safety wires on the oil pump bolts is also a good idea



[Grumpy]

using safety wire pliers

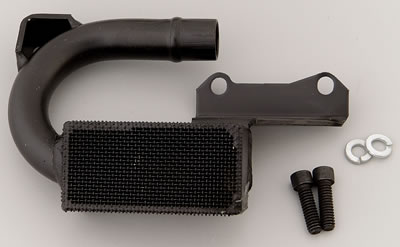

Moroso 24360 Moroso Oil Pump Pickups | Summit Racing

Free Shipping - Moroso Oil Pump Pickups with qualifying orders of $109. Shop Oil Pump Pickups at Summit Racing.

www.summitracing.com

some oil pump pick-up brackets are best safety wired

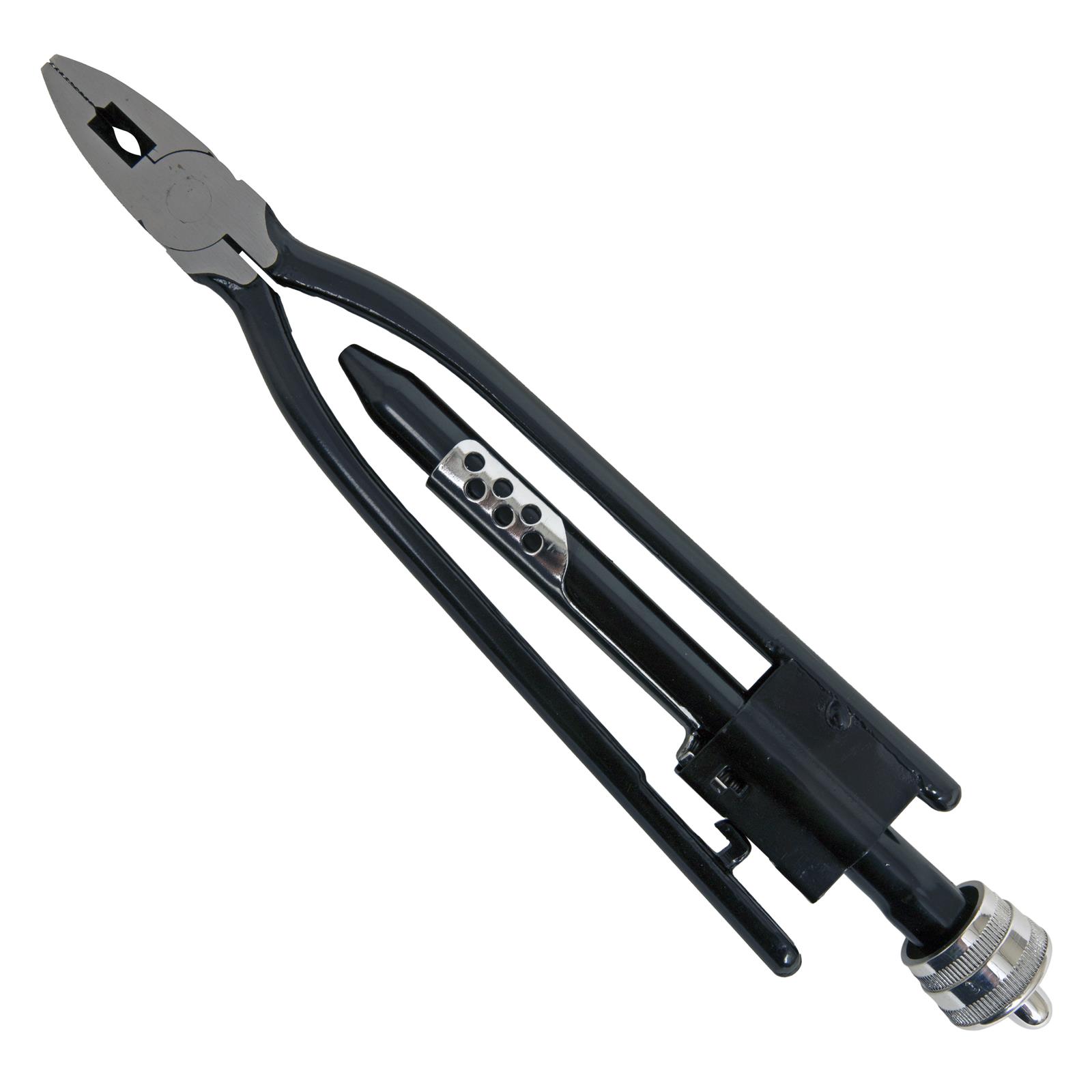

Summit Racing SUM-900177 Summit Racing™ Safety Wire Pliers | Summit Racing

Free Shipping - Summit Racing™ Safety Wire Pliers with qualifying orders of $109. Shop Pliers at Summit Racing.

www.summitracing.com

yes the oil filter you sellect does make a differance

Research carefully. Rick. All Chevrolet small time engine builders I know use the factory GM bolt in oil filter adapter bypass valve. Its discontinued by General Motors. Available new aftermarket by Dorman. Push down on the disc valve with a small screwdriver. Feel spring preload. Not sure of...

garage.grumpysperformance.com

J

Thread 'How Bad Did I Mess Up…?'

Mar 13, 2025

All,

I think I “newbie’d” my new oil pump. Any advice would be greatly appreciated.
…even if it’s “replace that new pump and do better next time”.

Melling 10553ST
1969 L46 SBC - unmodified / stock
Oil pan & gasket getting replaced
Figured I do the oil pump after reading the thread at:
garage.grumpysperformance.com/index.php?threads/installing-an-oil-pump-pick-up-tube.1800/#post-43110

First time changing pressure springs and I was using available tools.
Drove out old roll pin w/ punch & hammer, as carefully as possible. Had some heavy cardboard under it to minimize any marring.
Removed...

• jc.bn69.c3
• Replies: 12
• Forum: Oil and Lube Systems



[Grumpy]

interesting video,related to oil pump oil pressure failure
(easily avoided by brazing the oil pump pick-up)
thats one reason why I've always vastly preferred BRAZING the oil pump pick-up to the pump body's

BRAZINGS GENERALLY MORE DURABLE THAN MIG OR TIG WELDING

installing an oil pump pick-up tube​

there's two ways ,...... you can use the correct tool, which is ADVISABLE! use this oil pump(link below) in most stock SBC builds, as it produces a 10% increase in oil volume and standard pressure which is just fine , but obviously check your bearing clearances and oil pump to oil pan floor...
garage.grumpysperformance.com

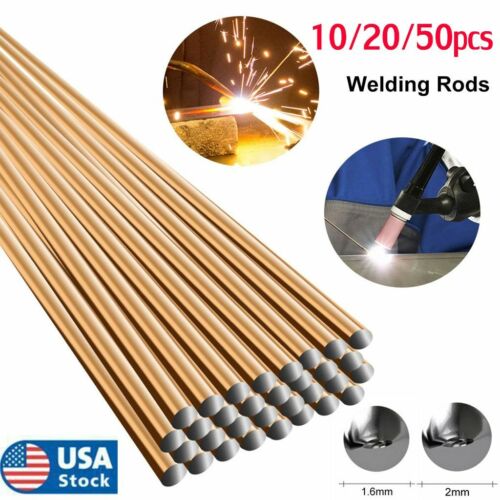

Brass Low Temperature Welding Rods Brazing Easy Soldering Refrigerator 2/1.6MM | eBay​

Find many great new & used options and get the best deals for Brass Low Temperature Welding Rods Brazing Easy Soldering Refrigerator 2/1.6MM at the best online prices at eBay! Free shipping for many products!
www.ebay.com

you can use these rods with a TIG welder OR oxy-acetylene torch
https://www.amazon.com/RBCuZn-C-LFB...la-965549971917&ref=&adgrpid=99611213989&th=1

tig or oxyacetylene torch brazing , turns the brass into a near liquid, that flows into micro cracks and as it cools locks the surfaces together, welding dis-similar metals like brittle cast iron to mild steel leaves a weld that's much more likely to crack under constant vibration
