taller valve covers?

grumpyvette

Administrator
Staff member
most guys with corvettes/ or muscle cars tend too stay with the stock valve covers unless forced into swapping , due to clearance issues caused by the use of roller rockers, stud girdles or other aftermarket valve train accessories. On some corvettes or muscle cars theres serious clearance issues with the windshield wiper motor housing and valve cover or accessory brackets that make using tall valve covers difficult
THERES VALVE COVER SPACERS IF YOU JUST NEED TO INCREASE HEIGHT ON YOUR CURRENT VALVE COVERS TO GAIN CLEARANCE FOR ROLLER ROCKERS ETC>
http://www.jegs.com/i/B-B/128/63910/100 ... tId=747514


or obviously a wide selection of taller valve cover designs

the better quality cast valve covers are generally more rigid and thus less prone to warping under clamp loads but in some versions they still require the load spreaders in use if gaskets are to seal correctly

but one thing that has not yet been pointed out is that the taller valve covers do have some slight advantage other that just additional clearance on the rocker assembly, and that slight advantage is they have increased surface area thats exposed to the relatively cool air of the engine compartment,compared to the oil temp, although the air temp in the engine compartment may reach 170-190 degs its still much cooler than the oil that can reach 230-280 degrees while racing, that allows the constant sheets of oil thrown from the rocker assembly onto the inner surface to cool as it has the heat absorbed as the oil runs over the inner surface on its return to the sump. in effect the taller valve covers greater surface area acts like an oil cooler that helps cool the valve springs very slightly. now it may only be a few degrees but each little advantage adds to the efficiency of the total lubrication system.
I try to use those tall cast aluminum valve covers just for that reason even if they are not mandatory. another advantage is that the oil separator baffles tend to be positioned further from the flowing oil in the cylinder heads making it less likely that the breathers allow oil film to blow onto the outer engine or the PVC valve to suck oil into the intake on older engines with worn rings



valve cover clamp bars or surrounding perimeter rings that spread or much more evenly distribute the valve cover bolt clamp sealing force help prevent bent and leaking valve cover gaskets and thats one reason chevy abandoned that design and went to the center bolt 4 bolt clamp design on the later LT1 engines

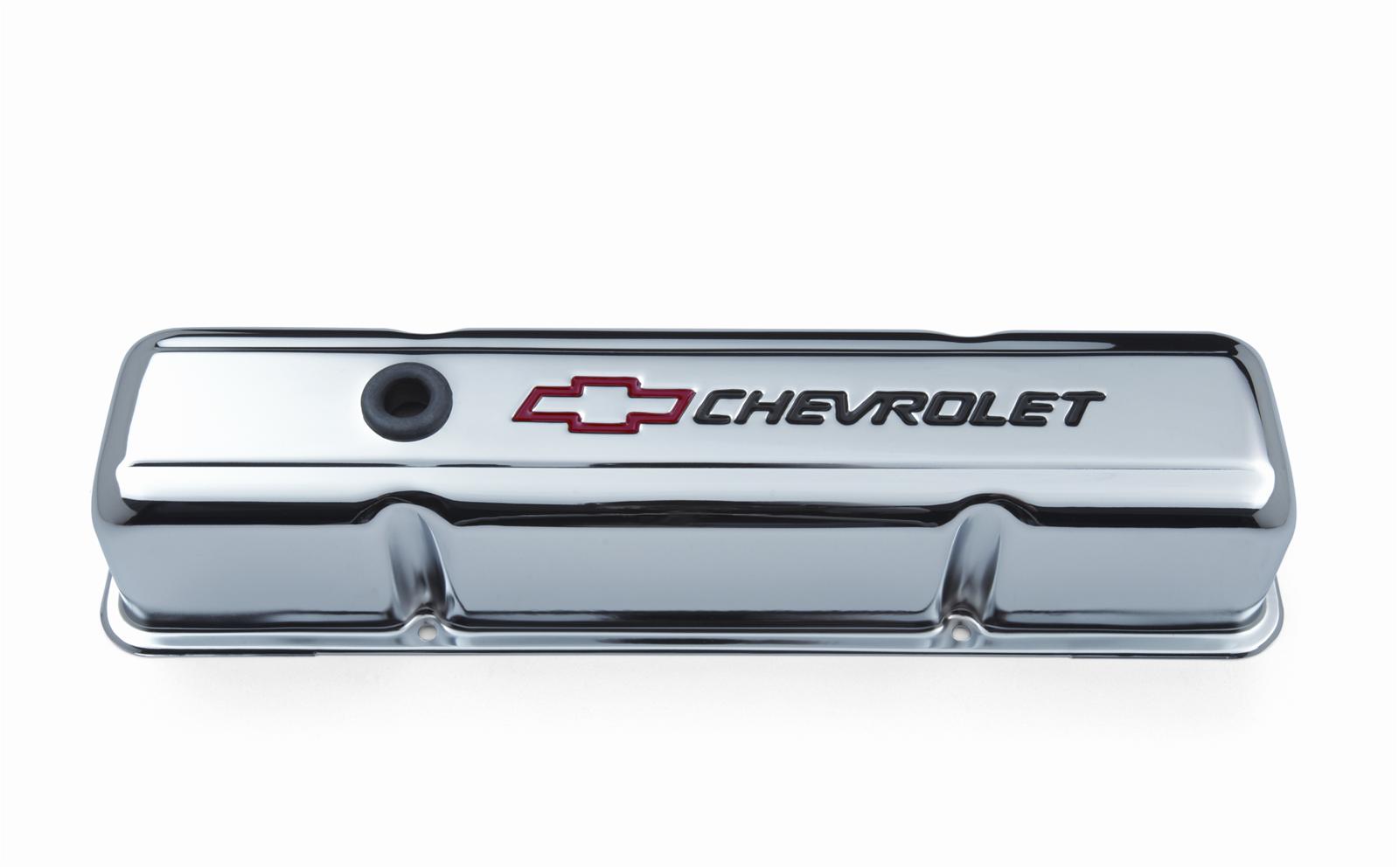

the thin stamped steel valve covers (ABOVE) used on many first generation small block and big block engines were rather easily bent at the clamp bolt points ,especially if the person bolting them on failed to use the load spreaders, which certainly helped but would not totally prevent the valve cover gasket leak potential.

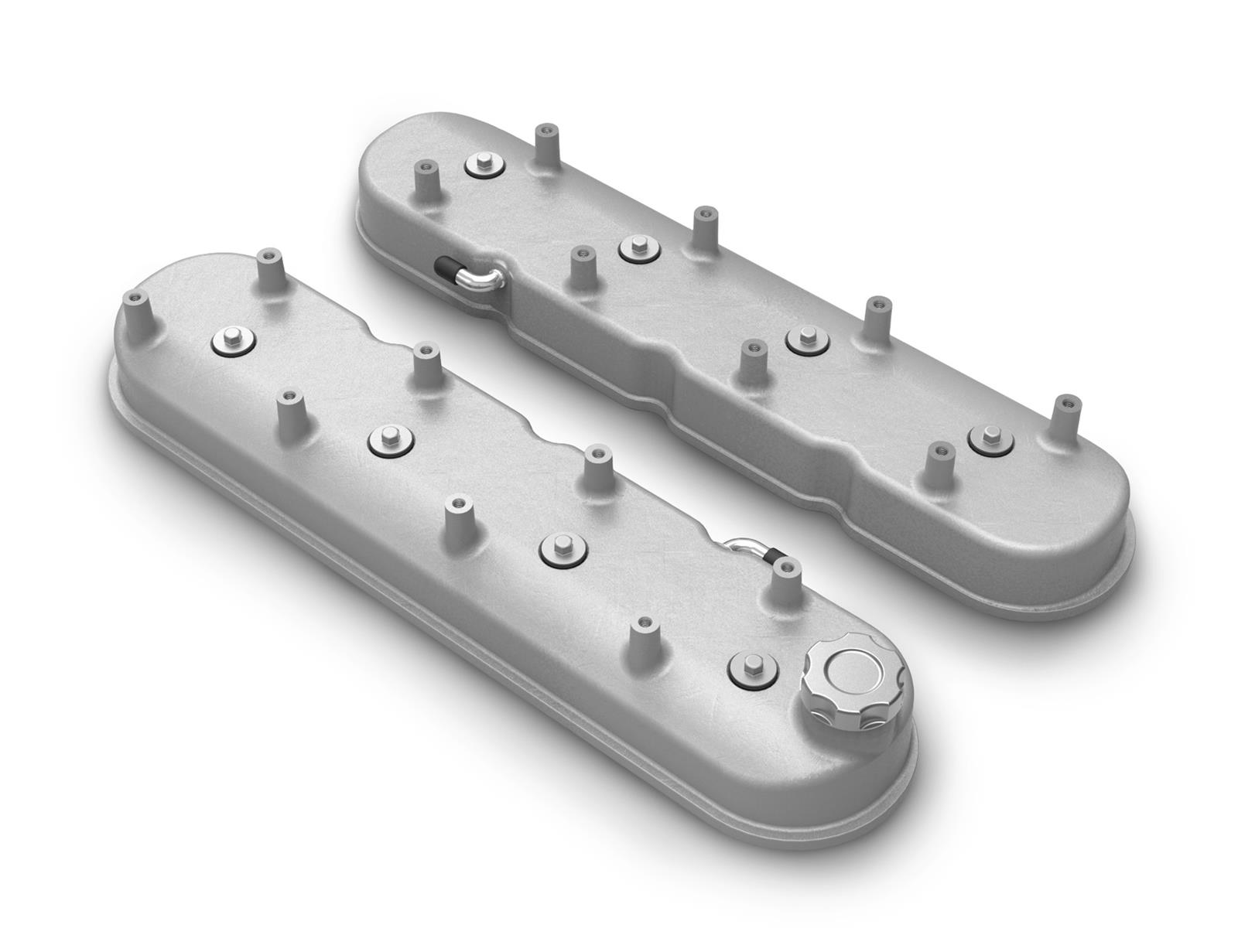

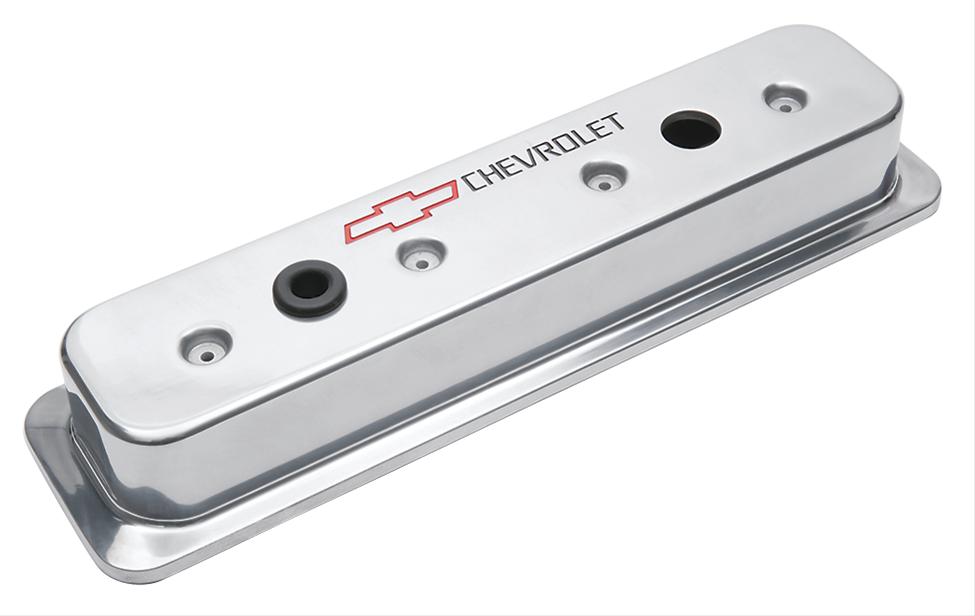

the later LT1-LT4 and LS series engines used the later center bolt valve cover design that more effectively spread the clamp loads more evenly along the gaskets







BTW if they are sbc perimeter valve covers

JEGS sells these that help a great deal
http://www.jegs.com/cgi-bin/ncommerce3/ProductDisplay?prrfnbr=2207&prmenbr=361
a few things you should know
WHILE THESE ARE RATHER EXPENSIVE VALVE COVERS THEY HAVE ADVANTAGES THAT I THINK MAKE THEM WORTH THE COST
http://www.summitracing.com/parts/pro-141-913



http://www.speedwaymotors.com/Valve-Cover-Adapter-for-Center-Bolt-Heads,1890.html
there are adapters that allow you to run standard , early perimeter bolt valve covers on the later center bolt heads

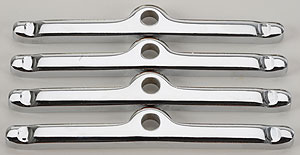

BTW using load spreader clip tabs between the valve cover hold down bolts and the valve cover helps prevent leaks, bent or cracked valve covers



[1] synthetic oil desolves that yellow 3m weatherstrip gasket adhesive than many guys use over a few months time so you cant use it to glue valve cover gaskets

[2]you must use a o2 safe gasket cement like the BLACK RTV silicone cement and you must clean and degrease the cover with acetone or a similar solvent before glueing on the gasket to get the best retention

[3]you need to allow at least a few hours to over night, depends mostly on temp. for that black silicone gasket cement to set up before installing the valve covers, and placing them gasket side down on a table with a sheet of wax paper under them and a 20lb weight on top of each valve cover while the cement sets up is the best way to insure the gaskets stay correctly aligned on the valve covers perimeter

[4]a light coat of (PAM) cooking spray on the lower gasket surface keeps them from sticking to the cylinder heads after installation

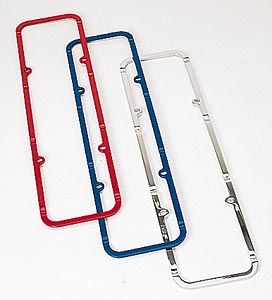

[5] these gasket retaining rings add a great deal to the valve covers ability to firmly hold the gasket WITHOUT bending SHEET METAL VALVE COVERS OR CRACKING CAST ALUMINUM VALVE COVERS AND ARE WELL WORTH THE MINIMAL COST

[6]doing it correctly the first time saves time and money
