links to casting numbers and info

grumpyvette

Administrator
Staff member
http://chevellestuff.net/qd/engine_stamp_numbers.htm

http://www.mortec.com/bbc.htm


http://www.gearheadgeek.com/ghgj/in...neral-chevy-data/chevy-head-casting-s?start=1

http://www.nastyz28.com/gm-chevy-codes/chevy-engine-codes-suffix-13.php

http://www.chevyhardcore.com/news/reference-chevy-engine-block-casting-numbers/

http://outintheshop.com/faq/casting/castings2.html

http://www.chevy-camaro.com/chevy-camaro-engine-codes.asp

http://corvettec3.ca/partsman.htm

http://www.thecamaro.com/Decoding/C...ock_chevy_intake_manifold_casting_numbers.php

http://www.mortec.com/castnum.htm

http://www.holisticpage.com/camaro/parts/head.htm

http://www.mortec.com/castnum.htm

http://www.fastnuf.com/bbccastingnumbers.html

http://www.nastyz28.com/bbcmenu.php

http://www.nastyz28.com/sbchevy/sblock.php

http://www.geocities.com/meanracing/Blo ... ation.html

http://www.vehicleidentificationnumber.com/
Some of the More Popular Gen I Cast Iron GM Cylinder Heads

http://www.onedirt.com/tech-stories/engine/a-guide-to-vortec-vs-oe-small-block-chevy-heads/

#3767754 – Manufactured from 1959-1961 on 283 Cubic Inch engines. Called the “Power Pack” cylinder heads. 1.72˝ intake valves and 1.50˝ exhaust valves. 60cc Combustion Chambers.

#3774692 – Manufactured from 1958-1964 on 283 Cubic Inch engines. Called the “Power Pack” cylinder heads. 1.72˝ intake valves and 1.50˝ exhaust valves. 60cc Combustion Chambers.

#3795896 – Manufactured from 1963-1965 on 283 Cubic Inch engines. Called the “Power Pack” cylinder heads. 1.72˝ intake valves and 1.50˝ exhaust valves. 60cc Combustion Chambers.

#3782461 – Manufactured from 1964-1966 on 327 Cubic Inch engines. 161/62 cc port volumes, 62cc combustion chamber. Identified by Double Camel hump symbol.

#3782461X – Manufactured from 1960-1963 on 283 and 327 Cubic Inch engines. 172/64 cc port volumes, 62cc combustion chamber. Identified by Double Camel hump symbol.

#3890462 – Manufactured from 1966-1967 on 302, 327, and 350 Cubic Inch engines. 64cc combustion chamber. Identified by Camel hump symbol. No accessory mounting holes.

#3917291 – Manufactured from 1967-1968 on 302, 327, and 350 Cubic Inch engines. 64cc combustion chamber. Identified by Camel hump symbol.

#3932441 – Manufactured from 1969-1970 on 350 Cubic Inch engines. 161-165cc intake port. 76cc combustion chamber.

#3932441X – Manufactured from 1969-1970 on 350 and 400 Cubic Inch engines. 161/65cc ports. 80cc combustion chamber. 1.94″ intake/1.5″ exhaust valves.

#333881 – Manufactured from 1974-1975 on 350 Cubic Inch engines. 76cc combustion chamber. 2.02″ intake/1.6″ Exhaust valves.

#3991492 – Manufactured from 1970 on 350 Cubic Inch engines. Available on the LT1 engine and over the counter. 64cc combustion chamber. Either straight or angled plugs.


SMALL CHAMBER PRODUCTION "ON CAR" CYLINDER HEADS -By Racerguy..I just borrowed the page from him..

"462" – Could be 3890462, 3891462, 3990462. The 462 is one of the best flowing production SBC heads. They were used between 1962-1968 on various HP versions of 302, 327, or 350 engines. They could have come with either 1.94/1.50" or 2.02/1.60" valves, had 64CC combustion chambers, DO NOT have accessory holes, intake port volume should be 161CC's, exhaust port volume should be 65CC's. These heads have double hump casting marks.

"461" – Could be 3782461, or 3782461X. These were an excellent performance head. The regular 461 casting was used between 1964-1966 and could be found on 327 engines. They had 2.02/1.60" valves, a 64CC combustion chamber, DO NOT have accessory holes, intake port volume of 161CC's, exhaust 62CC's. These heads have double hump casting marks. The "X" castings had the same port configuration, but had larger port volumes, they DO NOT have accessory holes. The intake port on the "X" casting was 172CC's, and the exhaust port was 62CC's, valve sizing was 1.94/1.50". The "X" heads had double hump casting marks as well.

"291" – Could be 3912291, or 3917291. This is another good performance casting. They were found on 1967-1968 302, 327, or 350 engines. They could have either 1.94/1.50" or 2.02/1.60" valves, 64CC combustion chambers, DO NOT have accessory holes, intake port volume should be 161CC's, exhaust port volume should be 65CC's. These heads have double hump casting marks.

"492" – 3991492. Another good performance head. They were found on 1970 LT-1 engines. They had 2.02/1.60" valves, 64CC combustion chambers, DO have accessory holes, intake port volume should be 161CC's, exhaust port volume should be 62CC's. These heads have double hump casting marks. This particular casting head was also available as an "over the counter" head from GM in straight or angle plug configurations.

"186" – 3927186. Another good performance head. They were found on 1969-1970 302 and 350 engines. They had 2.02/1.60" valves, 64CC combustion chambers, DO have accessory holes, intake port volume should be 161CC's, exhaust port volume should be 65CC's. These heads have double hump casting marks.

"292" – 3917292, or 340292. Both are good performance heads. The 3917292 was found on 1968 327 and 350 engines, had 1.94/1.50" valves, 64CC combustion chambers, straight plug configuration, not sure on the accessory holes, and I do not have any port volume data on these heads. These heads have double hump casting marks. The 340292 was available from GM "over the counter". This version had angle plug configuration, 2.02/1.60" valves, 64CC combustion chambers. These were known as the "Turbo" heads.

"041" – 3947041, also 3947041X. A good performance head. They were found on 1969-1970 302 and 350 engines. They had either 1.94/1.50" or 2.02/1.60" valves, 64CC combustion chambers, DO have accessory holes, I don't have port volume data for the regular 041, the 041X intake port should be 165CC's, the 041X exhaust port should be 65CC's. These heads have a single somewhat triangular shaped casting mark (slope on the upper left).

"040" – 3947040. A good performance head (I have read). Supposedly these heads came on 1968 327 truck engines. They had 1.94/1.50" valves, 64CC combustion chambers, DO NOT have accessory holes. I do not have any port volume data for these castings. These heads also had a single triangular shaped casting mark (slope on the upper left).

"187" – 3927187. Another good performance head (I think). They were found on 1969-1970 350 engines. I believe they had 1.94/1.50" valves, 64CC combustion chambers, DO have accessory holes. I do not have any data on port volumes for this casting. These heads have double hump casting marks.

"414" – 3973414. A good performance head. They were found on 1970 350 LT-1 engines. They had 2.02/1.60" valves, 64CC combustion chambers, DO have accessory holes. I do not have any port volume data for this casting. These heads have double hump casting marks.


LARGE CHAMBER PRODUCTION "ON CAR" HEADS

"487" – 3973487, OR 3973487X. The regular casting was found on the 1971-1972 350 LT-1 engines, had 1.94/1.50" valves, 76CC combustion chambers, DO have accessory holes, intake port volume should be 161CC's, exhaust port volume should be 65CC's. The 487X had 2.02/1.60" valves.

"441" – 3932441. This head was found on the 1969-1970 350 engines (255hp 350), it was a decent flowing large chamber head. It had 1.94/1.50" valves, 76CC combustion chambers, DO have accessory holes, intake port volume should be 161CC's, exhaust port volume should be 61CC's. Not to be confused with 3923441, which was a 1.72/1.50" valve, 327 truck head.

"624" – 462624, 426624, or 458624. The 458624 was a truck head, with 1.72/1.50 valves – non performance. The other castings were used mid 70's and up on 350 engines, they came with 1.94/1.50" or 2.02/1.60" valves, had 76CC combustion chambers, DO have accessory holes, intake port volume is 161CC's, exhaust port volume is 62CC's. These heads are made of thinner castings and are prone to cracking.

"882" – 333882. These heads were found on early-late 70's 350 and 400 engines. They had 76CC combustion chambers, 1.94/13.50" valves, DO have accessory holes, intake port volume is 160CC's, exhaust port volume is 60CC's. These heads are made of thinner castings and are prone to cracking as well. The exhaust port on these heads is rather weak in my humble opinion, and is not considered to be a good performance head. I have read some flow numbers on the internet regarding the 882's, and I have a hard time believing some of the flow numbers people are posting on these particular castings. I did extensive flow testing on several of these particular castings, and was not very impressed with their flow characteristics. The 441 or 487 are a much better large chamber head (in my humble opinion). The 882 intake port is very close to that of the 624, the exhaust side is where the 882 is weaker.


OVER THE COUNTER GM IRON HEADS

"492" – See listing above.

"3973370" – A good over the counter head. They had 64CC combustion chambers, supposedly straight or angle plug configuration. Used a set of these on all 3 of my 383 strokers, they originally came with 1.94/1.50" valves. We did some major port massaging and installed 2.02/1.60" valves, they responded very well to the modifications and worked very well. The combustion chambers were 64CC's. These were a decent iron head, with a lot of potential for performance.

"3965742" – Another over the counter GM iron head. I have no data on these particular castings, other than they were angle plug configuration.

http://www.decodethis.com/Default.aspx? ... H6GX125849
check your vin numbers also


As posted These are GM production Heads, NOT aftermarket.

Last edited by a moderator:

Grumpy

The Grumpy Grease Monkey mechanical engineer.
Staff member
Small Block Chevy LS Cylinder Heads by Casting Number

10215339 – LS Small Block V8 1997 346, LS1, aluminum, 68cc chambers

12480005 – LS Small Block V8 2000 LS1, GTZ, aluminum, 38cc chambers, 2.125/1.625 valves, angle plugs

12556743 – LS Small Block V8 1999 325, 5.3L, aluminum, truck, van

12558806 – LS Small Block V8 1997-1998 346, LS1, aluminum, 68cc chambers

12559853 – LS Small Block V8 1999 346, LS1, aluminum, 68cc chambers

12559862 – LS Small Block V8 1999-2000 aluminum, LS, 4.8 or 5.3L

12559895 – LS Small Block V8 2000 325 (5.3L) aluminum

12561706 – LS Small Block V8 2001-2004 325 (5.3L) aluminum

12561873 – LS Small Block V8 1999-2001 364, 6.0L, LS, 71cc chambers, cast iron

12562317 – LS Small Block V8 2001-2004 364, 6.0L, LS, 71cc chambers, aluminum

12564241 – LS Small Block V8 2000 346, LS1, aluminum, 68cc chambers

12564243 – LS Small Block V8 2001 346 (5.7L LS6) or 364 (6.0L LS2), aluminum

12572035 – LS Small Block V8 2001-2004 364, 6.0L, LS, aluminum, 71cc chambers

12550592 – LS Small Block V8 1997-up 346, LS1

12559846 – LS Small Block V8 1998-up 346, LS1

12560621 – LS Small Block V8 1998-up 346, LS1

12562174 – LS Small Block V8 1998-up 346, LS1



10106178 – LT Small Block V8 1990 350, LT5, Corvette ZR1, DOHC 32-valve, aluminum, passenger side head

10106179 – LT Small Block V8 1990 350, LT5, Corvette ZR1, DOHC 32-valve, aluminum, drivers side head

10125320 – LT Small Block V8 1994-1996 350, LT1, cast iron, Caprice 9C1 Police, Impala SS, Cadillac Fleetwood, Buick Roadmaster, reverse flow cooling

10128374 – LT Small Block V8 1992 350, LT1, 53cc chambers, angle plugs, aluminum, reverse flow cooling, 175cc intake ports, 68cc exhaust ports

10174389 – LT Small Block V8 1991-1995 350, LT5, Corvette ZR1, DOHC 32-valve, driver side, aluminum

10174390 – LT Small Block V8 1991-1995 350, LT5, Corvette ZR1, DOHC 32-valve, passenger side, aluminum

10205245 – LT Small Block V8 1993 350, LT1, aluminum, reverse flow cooling, 175cc intake ports, 68cc exhaust ports

10207643 – LT Small Block V8 1994-1996 350, LT1, aluminum, reverse flow cooling, 175cc intake ports, 68cc exhaust ports

10208890 – LT Small Block V8 1994-1996 265, Baby LT1, L99, cast iron, reverse flow cooling

10225121 – LT Small Block V8 1994-1995 350, LT5, Corvette ZR1, DOHC 32-valve, drivers side, aluminum

10225122 – LT Small Block V8 1995 350, LT5, Corvette ZR1, DOHC 32-valve, passenger side, aluminum

10239902 – LT Small Block V8 1996 350, LT4, aluminum, reverse flow cooling, 195cc intake ports, 54cc chamber, angle plugs

12529742 – LT Small Block V8 1995-1996 265, Baby LT1, L99, cast iron

12551561 – LT Small Block V8 1996 350, LT1, aluminum, reverse flow cooling

12554290 – LT Small Block V8 1994-1996 350, LT1, Caprice 9C1 Police, Impala SS, Cadillac Fleetwood, Buick Roadmaster, reverse flow cooling

12554291 – LT Small Block V8 1995-1996 265, Baby LT1, L99, cast iron

12555690 – LT Small Block V8 1996 350, LT4, aluminum, reverse flow cooling

14088526 – LT Small Block V8 350, LT1, aluminum


Grumpy

The Grumpy Grease Monkey mechanical engineer.
Staff member
Small Block Chevy Gen I Cylinder Heads by Casting Number

10033867 – V8 aluminum, Pontiac 23 degree head, 62cc chambers, angle plugs, 196cc intake ports
before you spend a good deal of money porting and un-shrouding any iron cylinder heads, keep in mind aluminum heads are easily repaired in a skilled and experienced automotive machine shop thats equipped to do those repairs but damaged iron cylinder heads are either much harder to repair or good door stops
http://garage.grumpysperformance.com/index.php?threads/iron-vs-aluminum-heads.389/#post-7266

The famous double hump cylinder heads, the #3782461 and #3782461X used 1.94/1.50-inch valves. These were commonly called “Fuelie” heads because they were released with mechanical Rochester fuel injection on the stock engines.

10045434 – V8 aluminum, Pontiac 15 degree head, 55cc chambers, angle plugs, raised runners

10051101 – V8 Bowtie, aluminum, 55cc chambers, angle plugs, raised runners, 196cc intake ports

10065202 – 1987-1995 350, truck

10065203 – 1987-1995 350, truck

10065204 – 1987-1995 350

10065205 – 1987-1995 305

10065206 – 1987-1995 350

10065207 – 1987-1995 305

10088113 – SBC350, Aluminum, 58cc, angle plugs, raised runners, d-port exhaust, 1.94/1.5 valves

10093328 – V8 Pontiac 15 degree head, aluminum, 224cc intake ports, 61cc chambers

10110810 – 1991 350, 65cc chambers

10120928 – 1987-1995 350

10134352 – V8 Bowtie, 45cc chambers, angle plugs, low port, 223cc intake ports, aluminum, 18 degree race head

10134363 – V8 Aluminum, 18 degree or 15 degree, Bowtie race head.

10147898 – 1995-1998 350, crate engine

10159550 – 1987-1995 350

10159551 – 1987-1995 305

10159552 – 1987-1995 350

10159553 – 1987-1995 305

10185040 – V8 Bowtie, aluminum, 45cc chambers, symmetrical ports, 263cc intake ports, splayed valves

10185040 – V8 Bowtie, aluminum, 45cc chambers, symmetrical ports, 240cc intake ports, splayed valves

10239906 – 1996 350, Vortec 5700, L31, 64cc chambers, 170cc intake ports, 1.94/1.5 valves

12367712 – 1999 Fast Burn, aluminum, 210cc intake ports, port, 2.00/1.55 valves, 62cc chambers

12367713 – 1999 ZZ430 crate engine, aluminum, 210cc intake port, 2.00/1.55 valves, 62cc chambers

12480011 – 1997 Bowtie SB2.2, aluminum

12506450 – 1987-1995 350

12509859 – 1987-1994 305

12516852 – 1987-1995 350

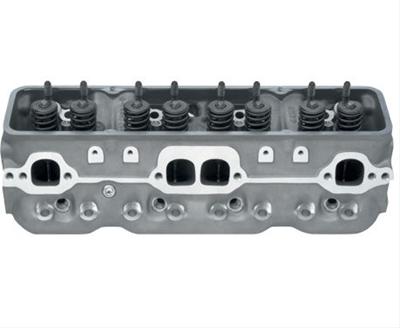

Casting number 25534421.

12552520 – 1997 305, Vortec, truck

12558059 – 1997 305, Vortec, truck, 1.84/1.5 valves

12558062 – 1998 350, L31 Vortec, truck, 64cc chambers, 1.94/1.5 valves, 170cc intake ports

14008856 – 1979-1981 267

14010201 – 1982-1985 305

14010516 – 1980-1986 350

14011034 – V8 Bowtie, cast iron, 64cc chambers, 184cc intake ports, angle plugs

14011049 – Bowtie, aluminum, 55cc chambers, angle plugs, 180cc intake ports

14011083 – 1955-1986 350, crate engine, 285hp or 300hp, 64cc chambers, 1.94/1.5 valves

14014415 – 1980-1985 267 or 305

14014416 – 1980-1986 305, 1.84/1.5 valves, 58cc chambers

14014440 – 1980 305, 1.84/1.5 valves

14019821 – 1980-1986 350

14019924 – 1979-1981 267

14019926 – 1980-1986 350

14020517 – 1980 350

14020555 – 1981 305

14020556 – 1981 350

14022056 – 1985 350

14022206 – 1980 350

14022301 – 1980-1986 305

14022601 – 1980-1986 267 or 305, 1.72/1.5 or 1.84/1.5 valves, 53cc chambers

14022801 – 1980-1986 305

14024816 – 350, 76cc chambers, 1.94/1.5 valves, crate engines

14034806 – 1978-1982 267

14034807 – 1978-1986 305

14034808 – 1980-1986 350

14034808 – 1996 350, 76cc chambers, 1.94/1.5 valves, Goodwrench crate engines

14034810 – 1980-1986 350, truck

14034811 – 1980-1986 350, truck

14039121 – 1981-1986 305, truck

14039122 – 1981-1986 305, truck

14071114 – 1980-1986 350

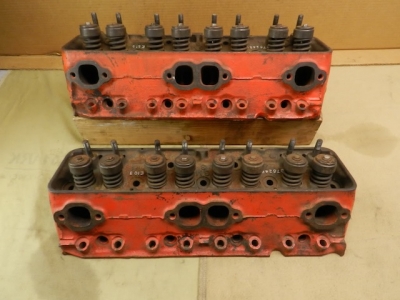

Casting number 19300955

14075381 – 1980-1986 350, truck

14079261 – 1986 350

14085844 – 1980-1986 350, truck

14085963 – 1986 350

14089119 – 1986-1988 350

14094093 – 1986-1988 350

14096217 – 1955-1986 350, crate engine, 285hp or 300hp, 64cc chambers, 72 degree or 90 degree center intake manifold bolt angles

14101081 – 1987-1995 305

14101083 – 1987 350, crate engines, 285hp or 300 hp, 64cc chambers, 72 degree center manifold bolt angles

14101128 – 1986-1987 350, aluminum, 58cc chambers, angle plugs

14102187 – 1987-1991 305, 1.84/1.5 valves

14102191 – 1987 350

14102193 – 1987 305 or 350, 1.94/1.5 valves

1816887 – 1963 283, GMC HD truck

22542525 – Dart or Olds or Chevy aluminum, 14 degree or 17 degree race head

24502559 – 1996-1997 Bowtie, SB2, 1st version, mirror ports, aluminum, 196cc port, CNC version, 280cc intake ports, 38cc chambers

25500141 – Buick or Chevy aluminum, 10 degree race head, 42cc chambers, symmetrical ports, 235cc intake ports, 2.1/1.625 valves

25534351C – 2004 Bowtie, cast iron, Vortec, 175cc intake ports, 65cc exhaust ports, 2.00/1.55 valves

25534371C – 2004 Bowtie, cast iron, Vortec, 206cc intake ports, 77cc exhaust ports, 2.00/1.55 valves

330545 – 1973 350, 76cc chambers, 2.02/1.60 valves

333881 – 1974-1975 350, 76cc chambers, 2.02/1.60 valves

333882 – 1974-1980 350 or 400, 76cc chambers

33417369 – 1990 350, Goodwrench crate engine, 76cc chambers

340292 – 1970 replacement, angle plugs, 64cc chambers

354434 – 1975-1979 262 or 267 or 305, 60cc chambers

358741 – 1976-1979 305

3636839 – 1955 265

3703523 – 1955 265

3713358 – 1955-1956 265


Casting number 3795896

3713569 – 1955-1956 265

3725306 – 1956 265

3731539 – 1957 283, 283hp, mechanical fuel injection

3731544 – 1957-1961 283

3731554 – 1957-1962 283

3731556 – 1957 283, truck

3731762 – 1956 265, Corvette

3737775 – 1962-1967 283 or 327

3740997 – 1957 283, carb or fuel injection, not 283hp

3743056 – 1958 283

3743096 – 1962-1967 327, GMC Truck

3747363 – 1957-1961 283

3747460 – 1959-1967 283 or 327, 70cc chambers

3748770 – 1958 283

3748772 – 1958-1961 283

3755537 – 1957-1962 283

3755539 – 1958-1962 283

3755549 – 1957-1962 283

3755550 – 1959 283

3755585 – 1962-1967 327, GMC Truck

376445 – 1977-1985 350, 76cc chambers, small valves

376450 – 1975-1981 262 or 267 or 305. 6 or 7 exhaust bolt holes, 60cc chambers

3767460 – 1959-1960 283

3767462 – 1962-1967 327

3767465 – 1959-1961 283

3767754 – 1959-1961 283, 60cc chambers

3767792 – 1960-1964 283

3774682 – 1960-1964 283 or 327, 70cc chambers

3774684 – 1962-1964 327, 75cc chambers

3774692 – 1958-1964 283, 60cc chambers

3782461 – 1964-1966 327, camel hump, no accessory holes, 160cc intake ports, 62cc exhaust ports, 62cc chambers


Casting number 3795896. Manufactured from 1963-1965 on 283 Cubic Inch engines. Called the “Power Pack” cylinder heads. 1.72˝ intake valves and 1.50˝ exhaust valves. 60cc Combustion Chambers.

3782461X – 1960-1963 283 or 327, camel hump,no accessory holes,larger 172cc intake ports, 64cc exhaust ports, 62cc chambers

3795896 – 1963-1965 283, 60cc chambers

3795896 – 1962-1964 327, 60cc chambers

3798996 – 1963-1967 327

3814480 – 1960-1967 283 or 327, 70cc chambers, 1.72/1.5 valves

3814482 – 1962-1967 283 or 327 or 350, 75cc chambers

3817680 – 1963-1967 283 or 327

3817681 – 1962-1967 327

3817682 – 1961-1962 283

3836839 – 1955 265

3836842 – 1957-1967 283 or 327

3837064 – 1956-1962 265 or 283

3837065 – 1955-1956 265, truck

3848720 – 1957-1958 283

3876775 – 1960-1967 283 or 327, 75cc chambers

3884520 – 1960-1967 283, 60cc chambers, some used by Studebaker

3884520 – 1962-1967 327, 60cc chambers, some used by Studebaker

3890462 – 1966-1967 302 or 327 or 350, camel hump, no accessory holes, 64cc chambers

3901068 – 1987-up 350, crate engine, 285hp, 64cc chambers

3911032 – 1968 307 or 327, 70cc chamber

3912264 – 1958-1962 283

3912265 – 1963-1964 283

3912311 – 1965-1967 327

3912313 – 1965-1967 327

3917290 – 1967-1968 307 or 327

3917291 – 1967-1968 302 or 327 or 350, camel hump, no accessory holes, 64cc chambers

3917292 – 1968 327 or 350, camel hump, 64cc chambers

3917293 – 1967-1968 307 or 327, 75cc chambers

3927185 – 1969-1976 307 or 327 or 350, 70cc chambers

3927186 – 1969-1970 302 or 350, camel hump, 64cc chambers, has accessory holes

3927187 – 1969-1970 350, camel hump, 64cc chambers, has accessory holes

3927188 – 1969 327, 74cc chambers

3927188 – 1970 307, 74cc chambers

3931633 – 1968-1973 307

3931635 – 1968-1976 350

3931638 – 1968 327, truck

3932441 – 1969-1970 350, 76cc chambers

3932441X – 1969-1970 350 or 400, 80cc chambers

3932454 – 1969-1973 307

3932454 – 1969-1979 350, truck

3946812 – 1969 350

3946813 – 1969-1979 350, truck


Casting number 12529093

3947040 – 1968 327, 64cc chambers, truck, no accessory holes

3947041 – 1969-1970 302 or 350, 64cc chambers

3947041X – 1969-1970 302 or 350, 64cc chambers, 165cc intake ports

3951598 – 1970 400, 76cc chambers

3964286 – SBC 350

3965742 – 1970 350, replacement, angle plugs

3970126 – 1967-1971 327 or 350

3973370 – 1969-1970 350, 64cc chambers, straight plugs or angle plugs

3973414 – 1970 350, LT1, 350hp or 370hp, camel hump, 64cc chambers

3973487 – 1971-1972 350, 1.94/1.5 or 2.02/1.6 valves, also 1971 350 or 330hp LT1, 75cc chambers

3973487X – 1971-1972 350, 1.94/1.5 or 2.02/1.6 valves, 75cc chambers

3973493 – 1971-1972 400, 76cc chambers

3986316 – 1971 350, 76cc chambers

3986336 – 1971 350, 76cc chambers

3986336X – 1971 350, 76cc chambers

3986339 – 1971 307 or 350, 74cc chambers

3986339X – 1971 307 or 350, 74cc chambers

3986388 – 1968-1976 307 or 350

3991492 – 1970 350, LT1, camel hump, accessory holes, 64cc chambers, straight plugs

3991492 – 1970 camel hump, 64cc, straight plugs or angle plugs

3998916 – 1972 350, 1972 350 LT1, screw in studs, 76cc chambers

3998920 – 1972-1973 350

3998991 – 1972-1973 307 or 350, 75cc chambers

3998993 – 1972-1973 307 or 350, 75cc chambers

3998993 – 350, Goodwrench crate engine, 75cc chambers

3998997 – 1972-1973 350 or 400, 76cc chambers

3998997 – 1978-1984 305 or 350, 76cc chambers

4079261 – 1975 350

458642 – 1975-1984 350, 350

462614 – 1977-1979 305, 60cc chambers

462624 – 1975-1986 350 or 400, 76cc chambers, 1.72/1.50, 1.94/1.50 or 2.02/1.60 valves

468642 – 1976 350 or 400

471513 – 1979 267 or 350

517513 – 1979 267 or 350

Last edited:

Grumpy

The Grumpy Grease Monkey mechanical engineer.
Staff member
mall Block Chevy LS Cylinder Heads by Casting Number

10215339 – LS Small Block V8 1997 346, LS1, aluminum, 68cc chambers

12480005 – LS Small Block V8 2000 LS1, GTZ, aluminum, 38cc chambers, 2.125/1.625 valves, angle plugs

12556743 – LS Small Block V8 1999 325, 5.3L, aluminum, truck, van

12558806 – LS Small Block V8 1997-1998 346, LS1, aluminum, 68cc chambers

12559853 – LS Small Block V8 1999 346, LS1, aluminum, 68cc chambers

12559862 – LS Small Block V8 1999-2000 aluminum, LS, 4.8 or 5.3L

12559895 – LS Small Block V8 2000 325 (5.3L) aluminum

12561706 – LS Small Block V8 2001-2004 325 (5.3L) aluminum

12561873 – LS Small Block V8 1999-2001 364, 6.0L, LS, 71cc chambers, cast iron

12562317 – LS Small Block V8 2001-2004 364, 6.0L, LS, 71cc chambers, aluminum

12564241 – LS Small Block V8 2000 346, LS1, aluminum, 68cc chambers

12564243 – LS Small Block V8 2001 346 (5.7L LS6) or 364 (6.0L LS2), aluminum

12572035 – LS Small Block V8 2001-2004 364, 6.0L, LS, aluminum, 71cc chambers

12550592 – LS Small Block V8 1997-up 346, LS1

12559846 – LS Small Block V8 1998-up 346, LS1

12560621 – LS Small Block V8 1998-up 346, LS1

12562174 – LS Small Block V8 1998-up 346, LS1


Grumpy

The Grumpy Grease Monkey mechanical engineer.
Staff member
10106178 – LT Small Block V8 1990 350, LT5, Corvette ZR1, DOHC 32-valve, aluminum, passenger side head

10106179 – LT Small Block V8 1990 350, LT5, Corvette ZR1, DOHC 32-valve, aluminum, drivers side head

10125320 – LT Small Block V8 1994-1996 350, LT1, cast iron, Caprice 9C1 Police, Impala SS, Cadillac Fleetwood, Buick Roadmaster, reverse flow cooling

10128374 – LT Small Block V8 1992 350, LT1, 53cc chambers, angle plugs, aluminum, reverse flow cooling, 175cc intake ports, 68cc exhaust ports

10174389 – LT Small Block V8 1991-1995 350, LT5, Corvette ZR1, DOHC 32-valve, driver side, aluminum

10174390 – LT Small Block V8 1991-1995 350, LT5, Corvette ZR1, DOHC 32-valve, passenger side, aluminum

10205245 – LT Small Block V8 1993 350, LT1, aluminum, reverse flow cooling, 175cc intake ports, 68cc exhaust ports

10207643 – LT Small Block V8 1994-1996 350, LT1, aluminum, reverse flow cooling, 175cc intake ports, 68cc exhaust ports

10208890 – LT Small Block V8 1994-1996 265, Baby LT1, L99, cast iron, reverse flow cooling

10225121 – LT Small Block V8 1994-1995 350, LT5, Corvette ZR1, DOHC 32-valve, drivers side, aluminum

10225122 – LT Small Block V8 1995 350, LT5, Corvette ZR1, DOHC 32-valve, passenger side, aluminum

10239902 – LT Small Block V8 1996 350, LT4, aluminum, reverse flow cooling, 195cc intake ports, 54cc chamber, angle plugs

12529742 – LT Small Block V8 1995-1996 265, Baby LT1, L99, cast iron

12551561 – LT Small Block V8 1996 350, LT1, aluminum, reverse flow cooling

12554290 – LT Small Block V8 1994-1996 350, LT1, Caprice 9C1 Police, Impala SS, Cadillac Fleetwood, Buick Roadmaster, reverse flow cooling

12554291 – LT Small Block V8 1995-1996 265, Baby LT1, L99, cast iron

12555690 – LT Small Block V8 1996 350, LT4, aluminum, reverse flow cooling

14088526 – LT Small Block V8 350, LT1, aluminum


Grumpy

The Grumpy Grease Monkey mechanical engineer.
Staff member
Small Block Chevy Crankshaft Casting Numbers

http://www.nastyz28.com/sbcmenu.php#

http://www.thecamaro.com/Decoding/Chevy_Casting_Numbers/

Years Casting CID Material Journal Rmain Seal Applications
1968-73 1130 307,327 cast large two all
1968-76 1181 350 cast large two all
2680 327 steel small two
2690 350 steel two
1968-69 3279 302 forged large two Z-28
1962-67 4577 327 forged small two -
1968-73 4672 307,327 cast large two -
1975-85 310514 350 - large two -
330550 350 steel two
1975-76 354431 262 cast large two Monza,Nova
1955-67 3727449 265,283 forged small two -
3729449 265 steel two
1962-67 3734627 327 forged small two -
1955-67 3735236 265,283 forged small two -
1957-63 3735263 283 forged small two -
1962-67 3782680 327 forged small two -
3814671 327 steel small two
1955-67 3815822 265,283 forged small two -
1957-65 3835236 283 forged small two -
1956-63 3836266 265,283 forged small two -
1963-67 3849847 283 cast small two -
1964-67 3876764 283 cast small two -
1964-67 3876768 283 cast small two -
3884577 327 steel small two
1967-76 3892690 350 cast large two -
1968-73 3911001 307,327 cast large two -
3911011 307,327 cast large two
3914672 327 steel large two
3923279 302 steel large two
1969-85 3932442 305,350 cast large two in 1979-82 267
1968-73 3941174 307,327 cast large two -
1968-69 3941178 302 forged large two Z-28
1969-85 3941182 350 forged large two Z28, Vette,truck, some nitrided
3941188 350 steel two
1964-67 3949847 283 - small two
3951130 327 steel large two
1970-80 3951529 400 cast XL mns two 3.76" stroke, ext. bal.
1986-on 14088526 305,350 cast large one
1986-on 14088532 350 forged - one truck
1986-on 14088535 305,350 cast large one all
86-88 14088552 350 forged one

Small Block Chevy Piston Part Numbers



GM P/N
ENGINE
CR/Chamber CC
Dome Type Pin Type Material Usage
12514101
350
8.5:1/76cc Dish P Cast 350/190HP
-
9.1:1/64cc - - - 350/285HP
-
- - - - Crate motor
12361371
350
9.1:1/64cc Dish P Cast 350/300HP Crate motor
10104455
350
9.8:1/58cc Flat top P Hyper ZZZ 1St design Crate motor
10181389
350
9.8:1/58cc Flat top P Hyper ZZZ 2nd design Crate motor
12520264
350
9.1:1/64cc Flat top P Cast 350/300HP
3946876
302
11.0:1/64cc Dome F Forged '68 to '69 Z-28
3942543
350
11.0:1/64cc Dome P Forged '69 L46
474192
350
9.0:1/76cc Dish P Cast 350 L82
3989051
350
11.0:1/64cc Dome P Forged '70 LT1
14011020
350
12.5:1/64cc Dome F Forged Heavy-Duty/NOTE 1
14011021
350
12.5:1/64cc Dome F Forged Heavy-Duty/NOTE 2
14011026
350
12.5:1/64cc Dome F Forged Heavy-Duty/NOTE 3
14011027
350
12.5:1/64cc Dome F Forged

[ size=5]cylinders 2, 3, 6, 7.
NOTE 2: use with 5.7" rod in cylinders 1, 4, 5, 8.
NOTE 3: use with 6.0" rod in cylinders 2, 3, 6, 7.
NOTE 4: use with 6.0" rod in cylinders 1, 4, 5, 8.[/size]

Last edited:

Grumpy

The Grumpy Grease Monkey mechanical engineer.
Staff member


Small Block Chevy Flywheel Part Numbers

Part # DIA. Teeth Comments
3991469 14" 168 two-piece seal, internally balanced
3986394 14" 168 400 External balance, two-piece seal
10105832 14" 168 86-later, one-piece rear seal, ext. balance
14085720 12.75" 153 Lightweight (15 lbs.), nodular iron, two-piece seal, int bal
14088646 12.75" 153 86-up, Lightweight (15 lbs.), nodular iron, one-piece rear seal, ext bal
14088648 14" 168 86-up, one-piece rear seal, ext. balance
14088650 12.75" 153 86-up, one-piece rear seal, ext balance
10174482 89-up with six-speed m/t, requires starter (10455709)
Common clutch sizes are: 10.4", 11.0", and 11.85". Some flywheels are drilled for two different clutch patterns.


Small Block Chevy Flexplate Part Numbers

Part # DIA. Teeth Comments
471529 12.75" 153 Two-piece seal blocks, int balance
471578 14" 168 400 ext. bal, two-piece rear seal
471598 14" 168 Two-piece seal blocks, internal balance
10128412 12.75" 153 86-up, one-piece rear seal ext. balance
10128413 14" 168 86-up, one-piece seal, extra thick, HD, ext bal
10128414 14" 168 86-96, one-piece rear seal, ext. balance
14088761 14" 168 89-up 350 HO, one-piece rear seal, ext. bal.
14088765 12.75" 153 86-up, one-piece rear seal, ext. bal.
14088767 14" 168 89-up 350 HO, one-piece rear seal, HD, ext. bal









Last edited:

Grumpy

The Grumpy Grease Monkey mechanical engineer.
Staff member
http://www.teufert.net/pontiac/intake.htm

http://www.2gta.com/72_455ho.html

http://ronspontiacpage.com/reference-pages/intakemanifoldpartnumbers.htm

http://www.frankspontiacparts.com/engineparts/pontiacengines.htm

http://www.frankspontiacparts.com/engineparts/transmissionparts.htm

http://www.frankspontiacparts.com/engineparts/suspensionparts.htm

http://www.wallaceracing.com/axledata2.htm

http://www.chevy-camaro.com/chevy-camaro-chevy-bb-engine-suffix-codes.asp?group=6

http://www.teufert.net/identify/identify.htm

http://www.pontiacpower.net/castnum01.html

http://www.wallaceracing.com/engine.htm

http://wallaceracing.com/head1.htm

http://www.antiquecarparts.net/tech04.htm

http://ronspontiacpage.com/reference-pages/stockheadspecs.htm

http://www.pontiacpower.net/numbers/head-codes/

http://www.classicpontiac.org/FAQ.asp?myPage=V8HeadInfo

http://www.pontiacracing.net/head.htm

http://www.hotrod.com/how-to/engine/0312pon-4x-6x-racing-heads/

http://www.antiquecarparts.net/tech03.htm

http://www.antiquecarparts.net/tech01.htm

http://www.antiquecarparts.net/tech02.htm
Pontiac Intake Manifold Part Numbers
Year Part Number Engine Displacement Description
1962
541690 389 348hp Auto
1964 9770274 389 GTO 4bbl
1964 9775088 389/421 GTO Tripower
1965 9778816 389 GTO 4bbl
1965 9778818 389/421 GTO Tripower
1966 9782808 421 Manual
1966 9782896 389 GTO 4bbl
1966 9782898 389/421 GTO 389 Auto and Manual, 412 Auto, Tripower
1966 9784440 421 Auto with A.I.R.
1967 9784438 400 GTO 2bbl, 225hp
1967 9786286 400 GTO 4bbl
1968 9790140 350/400 Firebird (350HO, 400, 400HO, 400 Ram Air I), GTO
1968 9790418 350/400 Firebird, Fullsize (2bbl 350), GTO (2bbl 400)
1968 9790418 350 Firebird 2bbl
1968 9794231 250 Firebird 1bbl
1968 9794232 250 Firebird 4bbl Sprint
1968 9794233 400 2bbl early and late (not Firebird)
1968 9794234 400 Firebird RA II, 4bbl late (including 350HO)
1968 9794234 400 RA IV Firebird RA IV, 2-piece Aluminum
1969 9794231 250 Firebird 1bbl
1969 9794232 250 Firebird Sprint 4bbl
1969 9794233 350/400 Firebird (2bbl 350), GTO (2bbl 400)
1969 9794234 350/400 Firebird All (4bbl 350HO, 4bbl 400, 4bbl 400HO, RA III), GTO 4bbl
1969 9796395 400 RA IV GTO RA IV w/ Exhaust Crossover
1969 9796614 400 RA IV Firebird (RA IV, 2-piece Aluminum), GTO (RA IV, 2-piece Aluminum)
1970 9796395 400 RA IV GTO RA IV w/ Exhaust Crossover
1970 9799067 350/400 Firebird 2bbl
1970 9799068 400 Firebird (4bbl, RA III), GTO (4bbl)
1970 9799084 400 RA IV Firebird (RA IV, 2-piece Aluminum), GTO (RA IV, 2-piece Aluminum)
1971 481732 350/400 Firebird 2bbl
1971 481733 400/455 Firebird 4bbl
1971 483674 455HO 2-piece Aluminum
1972 485640 455HO 2-piece Aluminum
1972 485911 350/400 Firebird 2bbl
1972 485912 350/400/455 Firebird 4bbl
1972 488945 455HO 2-piece Aluminum
1973 491244 400/455 Firebird 4bbl
1973 492292 350/400 Firebird 2bbl
1973 492744 400/455 Firebird 4bbl
1973 494282 400/455 Firebird 4bbl
1973 494405-19 455SD Firebird 4bbl (LS2 or LS2X cast into front of the manifold)
1974 495104 350/400 Firebird 2bbl
1974 495106 350/400 Firebird 4bbl
1974 495107 455SD Firebird 4bbl Super Duty
1975 496140 400/455 Firebird 4bbl
1975 496142 350 Firebird 2bbl
1976 525355 400/455 Firebird 4bbl
1976 5255353 350 Firebird 2bbl
1977 525355 350/400 Firebird 4bbl
1977 526213 301 Firebird 2bbl
1978 10003395 400 Firebird 4bbl
1979 10000516 301 Firebird 2bbl
1979 10000518 301 Firebird 4bbl
1979 10003395 400 Firebird 4bbl

https://www.npdlink.com/store/catalog/Intake_Manifold-10248-1.html

http://www.hotrod.com/how-to/engine/hppp-0904-factory-cast-aluminum-intake-manifold-comparison/
actory Cast-Aluminum
Intake Manifold Casting Numbers
Number
Application
9796614 '69 A-body R/A-IV
9799084 '69 F-body R/A-IV
9799084 '70 R/A-IV
483674 '71 455 H.O.
485640 '72 455 H.O. (early)
488945 '72 455 H.O. (midyear)
Pontiac Intake Manifolds
YEAR PART NUMBER SIZE DESCRIPTION
1958-60 536193 ??? TRIPOWER MANIFOLD
1958-60 536516 ??? 4 BARREL
1962 541690 389 348 HP WITH AUTOMATIC (425A TROPHY ENGINE)
1962 542991 421 SUPER DUTY 2 X 4
1963 9770319 421 SUPER DUTY 2 X 4
1964 9770274 389 GTO 4BBL
1964 9775088 389/421 TRIPOWER
1964 9775088 389 GTO TRIPOWER
1965 9778816 389 GTO 4BBL
1965 9778818 389/421 GTO TRIPOWER
1965 9778818 389 GTO TRIPOWER
1966 9782808 421 MANUAL
1966 9782896 389 GTO 4BBL
1966 9782898 389/421 389 AUTO & MANUAL AND 421 AUTO tripower
1966 9782898 389 GTO TRIPOWER
1966 9784440 421 AUTO WITH A.I.R.
1967 9784438 400 225 HP 2BBL GTO
1967 9786286 400/428 Quadrajet type intake, used on all 400 Lemans/GTO/Firebird & fullsize with 428
1967 9782896 326/400 Carter type intake, used on 326 (Tempest & Firebird) and 400 in fullsize and GP
1968 9790140 350/400 350 HO,400,400HO,400RAM AIR I FB & GTO
1968 9790140 400 FB 4 BARRELL (STD, HO, & RAM AIR I)
1968 9790418 350 2 BBL FIREBIRD & BIG CAR
1968 9790418 400 2BBL GTO EARLY & LATE
1968 9790418 350 FB 2 BARELL
1968 9794231 250 1 BBL FIREBIRD
1968 9794231 250 FB 1 BARRELL
1968 9794232 250 4 BBL SPRINT FIREBIRD
1968 9794232 250 FB SPRINT 4 BARRELL
1968 9794233 400 2BBL EARLY & LATE (NOT FB)
1968 9794234 400 FB RAM AIR II
1968 9794234 400 4BBL LATE (NOT FB OR GP)
1968 9794234 400 FB ALUMINUM 2PC RAM AIR IV
1969 9794231 250 1 BBL FB
1969 9794231 250 FB 1 BARRELL
1969 9794232 250 4BBL SPRINT FB
1969 9794232 250 FB SPRINT 4 BARRELL
1969 9794233 400 2BBL GTO
1969 9794233 350 2BBL FB
1969 9794233 350 FB 2 BARELL
1969 9794234 400 4BBL GTO
1969 9794234 350/400 350 4BBL HO,400 4BBL, 400 HO 4BBL,RAM AIR III (ALL FB)
1969 9794234 350/400 FB 4 BARRELL (STD, HO, & RAM AIR III)
1969 9796395 400 RAM AIR IV GTO EXHAUST CROSSOVER
1969 9796614 400 RAM AIR IV GTO ALUMINUM 2 PC
1969 9796614 400 RAM AIR IV ALUMINUM 2 PC MANIFOLD FB
1969 9796614 400 RA IV FB ALUMINUM 2PC RAM AIR IV
1970 9796395 400 RAM AIR IV EXHAUST CROSSOVER GTO
1970 9799067 350 2BBL FB
1970 9799067 400 2BBL FB
1970 9799068 400 STANDARD 4BBL GTO
1970 9799068 400 400 4BBL AND RAM AIR III 4BBL FB
1970 9799068 400 FB 4 BARRELL (STD & RAM AIR III)
1970 9799084 400 RAM AIR IV ALUMINUM INTAKE GTO
1970 9799084 400 RAM AIR IV ALUMINUM 2 PC MANIFOLD FB
1970 9799084 400 RA IV FB ALUMINUM 2PC RAM AIR IV
1971 481732 350/400 FB 2 BARELL
1971 481733 400/455 STANDARD 4BBL
1971 481733 400/455 FB 4 BARRELL
1971 483674 455 HO ALUMINUM INTAKE
1971 483674 455 HO ALUMINUM 2 PC MANIFOLD
1971 483674 455 HO ALUMINUM 2 PC
1972 485640 455 HO ALUMINUM 2 PC MANIFOLD
1972 485911 350/400 FB 2 BARELL
1972 485912 400/455 STANDARD 4BBL
1972 485912 350/400 FB 4 BARRELL
1972 488945 455 HO ALUMINUM 2 PC
1973 491244 400/455 FB 4 BARRELL
1973 492292 350/400 FB 2 BARELL
1973 492744 400/455 FB 4 BARRELL
1973 494282 400/455 FB 4 BARRELL
1973 494405-19 455 SD FB 4 BARRELL(HAS LS2 OR LS2X CAST IN FRONT OF MANIFOLD
1974 495104 350/400 FB 2 BARELL
1974 495106 350/400 FB 4 BARRELL
1974 495107 455 SD FB 4 BARRELL SUPERDUTY
1975 496140 400/455 FB 4 BARRELL
1975 496142 350 FB 2 BARELL
1976 525355 400/455 FB 4 BARRELL
1976 5255353 350 FB 2 BARELL
1977 525355 350/400 FB 4 BARRELL
1977 526213 301 FB 2 BARELL
1978 10003395 400 FB 4 BARRELL
1979 10000516 301 FB 2 BARRELL
1979 10000518 301 FB 4 BARRELL
1979 10003395 400 FB 4 BARRELL
1978 9799067 350/400 FB 2 BARELL
??? 9786285 ??? 4 BARREL

Last edited:

chromebumpers

solid fixture here in the forum
Staff member
What timing. I see the listing in black for the intake I'm currently interested in #488945 Pontiac 1972. Seller says its for a ram air IV for $750, that's a lot of money, I need to know if it is worth getting.
The list above calls it a two piece aluminum?


Grumpy

The Grumpy Grease Monkey mechanical engineer.
Staff member
Number Details
10051107 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 454, 4 bolt, Bowtie, MkIV, 9.8 deck, siamesed bores, 4.25-4.50 bore
10069282 Category: Engine Blocks
Type: Big Block V8
Date: 1990-1991
Notes: 366 tall deck, 4 bolt, Mark IV, Tall deck
10069284 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 427 tall deck, 4 bolt, Mark IV, Tall deck
10069286 Category: Engine Blocks
Type: Big Block V8
Date: 1990-1991
Notes: 454, 4 bolt, Mark IV, Short deck
10114182 Category: Engine Blocks
Type: Big Block V8
Date: 1991+
Notes: 454, 4 bolt, Generation V
10114183 Category: Engine Blocks
Type: Big Block V8
Date: 1991+
Notes: 366 tall deck, 4 bolt, Generation V
10114184 Category: Engine Blocks
Type: Big Block V8
Date: 1991+
Notes: 427 tall deck, 4 bolt, Generation V
10134366 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 454 tall deck, 4 bolt, Bowtie, Generation V, Tall deck
10185050 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 454, 4 bolt, Bowtie, Generation V, Short deck
10237297 Category: Engine Blocks
Type: Big Block V8
Date: 1996+
Notes: 454, 4 bolt, Vortec 7400, L-29 Generation VI
10237299 Category: Engine Blocks
Type: Big Block V8
Date: 1996+
Notes: 427 tall deck, 4 bolt, Generation VI, 7.0L, truck
10237300 Category: Engine Blocks
Type: Big Block V8
Date: 1996+
Notes: 502, 4 bolt, Generation VI, 4.466 bore
12550312 Category: Engine Blocks
Type: Big Block V8
Date: 1996+
Notes: 427 tall deck, 4 bolt, Generation VI, 4.250 bore, fuel pump boss, clutch linkage pivot boss
12550313 Category: Engine Blocks
Type: Big Block V8
Date: 1991+
Notes: 454, 4 bolt, Generation V crate motor, Generation VI 4.25 bare block, fuel pump boss
12556110 Category: Engine Blocks
Type: Big Block V8
Date: 2001+
Notes: 496, 4 bolt, Generation VII 8.1L, Vortec 8100, Truck
12561357 Category: Engine Blocks
Type: Big Block V8
Date: 1996+
Notes: 454, 4 bolt, Generation VI
12561358 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 502, 4 bolt, Generation VI
14015443 Category: Engine Blocks
Type: Big Block V8
Date: 1987-1990
Notes: 454, 2 or 4 bolt, Mark IV, Truck or Motorhome
14015445 Category: Engine Blocks
Type: Big Block V8
Date: 1978-1990
Notes: 454, 2 bolt or 4 bolt
14044807 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 454 tall deck, 4 bolt, Bowtie, MkIV, CNC prep, Tall deck, 4.25 bore or 4.495 bores
14096859 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 502, 4 bolt, Generation V, HO
24502504 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 454, 4 bolt, Bowtie, Generation V, Race prep, 9.8 short deck height
24502506 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 454 tall deck, 4 bolt, Bowtie, Generation V, Race prep, 10.2 tall deck height
24502572 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 4 bolt, 4.5 bore Olds DRCE 2, 9.5 deck height
25534402 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 4 bolt, 4.590 bore Olds DRCE 3, 9.25 deck height


Number Details
326711 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 4 bolt, aluminum, CanAm, 4.44 bores, steel cylinder liners
340220 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1985
Notes: 427 tall deck, 4 bolt
345014 Category: Engine Blocks
Type: Big Block V8
Date: 1970-1986
Notes: 454,
346236 Category: Engine Blocks
Type: Big Block V8
Date: 1975-1976
Notes: 454, 2 bolt
359070 Category: Engine Blocks
Type: Big Block V8
Date: 1970-1990
Notes: 454,
361959 Category: Engine Blocks
Type: Big Block V8
Date: 1973-1990
Notes: 454, 2 bolt or 4 bolt
364776 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1985
Notes: 427 tall deck, 4 bolt
364779 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1990
Notes: 366 tall deck, 4 bolt
3782870 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1976
Notes: 427 tall deck, 4 bolt
3824553 Category: Engine Blocks
Type: Big Block V8
Date: 1966-1967
Notes: 366 tall deck, 4 bolt
3855961 Category: Engine Blocks
Type: Big Block V8
Date: 1965-1966
Notes: 396, 2 bolt or 4 bolt
3855961 Category: Engine Blocks
Type: Big Block V8
Date: 1966
Notes: 427, 2 bolt
3855962 Category: Engine Blocks
Type: Big Block V8
Date: 1965-1966
Notes: 396, 4 bolt
3855977 Category: Engine Blocks
Type: Big Block V8
Date: 1966-1973
Notes: 366 tall deck, 4 bolt
3869942 Category: Engine Blocks
Type: Big Block V8
Date: 1966-1967
Notes: 427, 2 bolt or 4 bolt
3902406 Category: Engine Blocks
Type: Big Block V8
Date: 1967
Notes: 396, 2 bolt or 4 bolt
3904351 Category: Engine Blocks
Type: Big Block V8
Date: 1967
Notes: 427, 2 bolt or 4 bolt
3904354 Category: Engine Blocks
Type: Big Block V8
Date: 1966-1976
Notes: 366 tall deck, 4 bolt
3916319 Category: Engine Blocks
Type: Big Block V8
Date: 1968
Notes: 366 tall deck, 4 bolt
3916321 Category: Engine Blocks
Type: Big Block V8
Date: 1968
Notes: 427, 2 bolt or 4 bolt
3916323 Category: Engine Blocks
Type: Big Block V8
Date: 1968
Notes: 396, 2 bolt or 4 bolt
3925521 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1985
Notes: 427 tall deck, 4 bolt
3935439 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1969
Notes: 427, 2 bolt or 4 bolt
3935440 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1969
Notes: 396, 2 bolt or 4 bolt
3937724 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1985
Notes: 366 tall deck, 4 bolt

Number Details
3937726 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1984
Notes: 427 tall deck, 4 bolt
3946052 Category: Engine Blocks
Type: Big Block V8
Date: 1969
Notes: 427, 4 bolt, aluminum ZL-1, Mark IV
3946053 Category: Engine Blocks
Type: Big Block V8
Date: 1997+
Notes: 427, 4 bolt, aluminum ZL-1, 2nd version, Mark IV
3955270 Category: Engine Blocks
Type: Big Block V8
Date: 1969
Notes: 427, 2 bolt or 4 bolt
3955272 Category: Engine Blocks
Type: Big Block V8
Date: 1969
Notes: 396, 2 bolt or 4 bolt
3955274 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1985
Notes: 366 tall deck, 4 bolt
3955276 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1973
Notes: 427 tall deck, 4 bolt
3963512 Category: Engine Blocks
Type: Big Block V8
Date: 1969
Notes: 427, 2 bolt or 4 bolt
3963512 Category: Engine Blocks
Type: Big Block V8
Date: 1970-1976
Notes: 454, 2 bolt or 4 bolt
3969852 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1984
Notes: 366 tall deck, 4 bolt
3969854 Category: Engine Blocks
Type: Big Block V8
Date: 1969
Notes: 396, 2 bolt or 4 bolt
3969854 Category: Engine Blocks
Type: Big Block V8
Date: 1970-1972
Notes: 402, 2 bolt or 4 bolt
3969858 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1984
Notes: 427 tall deck, 4 bolt
399204 Category: Engine Blocks
Type: Big Block V8
Date: 1970-1971
Notes: 509, 4 bolt, aluminum, CanAm, 4.5 bores, steel Cylinder liners
399293 Category: Engine Blocks
Type: Big Block V8
Date: 1977-1978
Notes: 366 tall deck, 4 bolt
3999289 Category: Engine Blocks
Type: Big Block V8
Date: 1971-1979
Notes: 454, 2 bolt or 4 bolt, some CE replacement blocks had four bolt main caps
3999290 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1969
Notes: 396, 2 bolt or 4 bolt, Truck
3999290 Category: Engine Blocks
Type: Big Block V8
Date: 1970-1972
Notes: 402, 2 bolt or 4 bolt, Truck
3999290 Category: Engine Blocks
Type: Big Block V8
Date: 1972
Notes: 402, 2 bolt or 4 bolt, Passenger
3999293 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1990
Notes: 366 tall deck, 4 bolt
3999294 Category: Engine Blocks
Type: Big Block V8
Date: 1968-1984
Notes: 427 tall deck, 4 bolt
473478 Category: Engine Blocks
Type: Big Block V8
Date: 1977-1990
Notes: 427 tall deck, 4 bolt
495102 Category: Engine Blocks
Type: Big Block V8
Date:
Notes: 4 bolt, aluminum, CanAm, 4.5 bores


Grumpy

The Grumpy Grease Monkey mechanical engineer.
Staff member
Exhaust Manifold ID
http://outintheshop.com/faq/casting/exhaust_man.html
SEARCH cast numbers

Use these casting numbers to identify the exhaust manifolds you have.


Chevy Exhaust Manifolds Casting Numbers
Use these casting numbers to identify the exhaust manifolds you have.

Casting Number Years Engine Side Comments
336706 74-78 350 RH
336707 74-78 350 LH
336708 74-78 350 RH
336709 74-78 350 RH Camaro & Z-28 with A.I.R.
336710 74-78 307, 350 & 400 LH Chevelle,Camaro,Z-28,Nova and Passenger with A.I.R.
346222 74-80 307, 350 & 400 RH Chevelle,Camaro, Nova and Passenger with A.I.R.
346247 75-77 262, 350&400 LH Chevelle,Camaro Monte Carlo and Passenger 110,145,155,175HP 346248 75-77 262, 350&400 RH Chevelle,Camaro, Monte Carlo and Passenger 110,145,155,175 HP
354432 75-76 262 RH 110 HP
354433 75-76 262 LH 110 HP
364753 76-80 307, 350 & 400 LH Camaro, Monte Carlo, Malibu and Passenger
372243 74-83 307, 350 & 400 RH Corvette and Replacement manifold
462697 77-79 267 & 305 LH Monte Carlo and Malibu
462698 77-83 267 & 305 RH Monte Carlo and Malibu
474008 78-82 267, 305 & 350 RH
745994 80-86 267 & 305 LH
3704791 55-56 265 LH Corvette and Passenger 195 HP
3704792 55-56 265 RH Corvette and Passenger 195 HP
3725563 56 265 LH & RH Corvette and Passenger 210 HP 2-Bolt Flange
3731557 56 265 LH Corvette and Passenger 225 HP
3731558 56 265 RH Corvette and Passenger 225 HP
3732498 58 283 RH Corvette FI
3733975 57 283 LH Corvette and Passenger 220, 245, 250, 270 & 283 HP
3733976 57 283 RH Corvette and Passenger 220, 245, 250, 270 & 283 HP
3737902 62-65 327 RH 300, 340, 360, 365 & 375 HP 2.5" Outlet
3746563 65 327 LH 300 HP
3747038 58-65 283 & 327 RH Corvette and Passenger 220, 250 & 300 HP 1.9" Outlet
3747042 58-68 283, 307 & 327 RH Corvette and Passenger 195, 200, 220, 250, 270, 275, 290, 300 & 350 HP 1.9" Outlet
3747938 64 327 LH & RH 250 & 300 HP
3747942 65 327 LH & RH 250, 350 & 365 HP
3749965 58-63 283 & 327 LH Corvette and Passenger 230,245,250,270,275,290,300 & 315 HP
3750556 58-65 283 & 327 RH Corvette and Passenger 230,245 250,270,275,290,300 & 315 HP
3780728 64-67 327 LH Chevy II
3790729 64-67 283 & 327 LH 195, 220, 250, 270, 275, 300 & 350 HP 2.0" Outlet Chevy II
3790730 64-65 283 & 327 RH 220, 250 & 300 HP 1.9" Outlet Chevy II
3791162 65-66 283 & 327 RH Chevy II with AC
3791182 66-67 283 & 327 RH Passenger with AC
3797901 62-63 327 LH Corvette 300, 340 & 360 HP
3797902 62-65 327 RH Corvette 300, 340, 360, 365 & 375 HP 2.5" Outlet
3797942 63-65 327 LH & RH Corvette 300, 360, 365 & 375 HP 2.5" Outlet
3834947 64-68 283, 307 & 327 LH Chevelle 195, 200, 210, 220, 250, 275, 295, 300, 325, 350 & 365 HP 2.0" Outlet
3836968 55-56 265 RH Corvette and Passenger 195 HP
3837069 55 265 LH Corvette and Passenger 195 HP
3840715 64 283 & 327 LH Chevelle
3840912 64-68 283, 307, 327 & 350 RH Chevelle, Camaro and Nova 195, 200, 210, 220, 250, 275, 295, 300, 325, 350 & 365 HP 1.9" Outlet
3846559 64-71 327 & 350 LH Corvette 250, 270, 300 & 350 HP 2.0" Outlet
3846563 64-65 327 LH Corvette 300, 350 & 365 HP 2.5" Outlet
3846659 66 327 LH 350 HP
3849288 64-67 283 & 327 RH 195, 220, 275 & 350 HP 1.9" Outlet Chevy II
3849290 64-67 283 & 327 RH 195, 220, 275 & 350 HP 1.9" Outlet Chevy II with AC
3855163 65-68 283, 307 & 327 LH Passenger and Truck 195, 200,220,250 & 275 HP 2.0" Outlet
3872723 66-67 283 & 327 LH 195, 220, 275 & 350 HP 2.0" Outlet Chevy II A.I.R.
3872729 66 283 & 327 LH Chevelle 195,220, 275 & 350 HP 2.0" Outlet A.I.R.
3872730 66-68 283, 302, 307 & 327 RH Chevelle, Camaro & Z-28 200, 210, 220, 250, 275, 290, 325 & 350 HP 1.9" Outlet A.I.R.
3872738 66-67 283 & 327 RH 195, 220, 275 & 350 HP 1.9" Outlet Chevy II
3872741 66-68 283, 307 & 327 LH Passenger 195, 200, 220, 250 & 275 HP 2.0" Outlet A.I.R.
3872765 67-71 327 & 350 LH Corvette 300, 330, 350 & 370 HP 2.0" Outlet A.I.R.
3872778 66-68 283, 307 & 327 RH Corvette, Passenger and Truck 195, 200, 250, 275, 300 & 350 HP 1.9" Outlet A.I.R.
3887186 66 283 RH 220 HP 1.9" Outlet
3890424 64-67 283 & 327 RH Chevy II
3892679 66-68 283, 302, 307, 327 & 350 LH Chevelle, Camaro and Z-28 195, 200, 210, 220, 250, 275, 290, 295 & 325 HP 2.0" Outlet
3892683 66-68 283, 302, 307, 327 & 350 LH Chevelle, Camaro and Z-28 195, 200, 210, 220, 250, 275, 290, 295 & 325 HP 2.0" Outlet
3893604 66-68 283 & 327 RH Passenger A.I.R.
3893608 67-68 283, 302, 307, 327 & 350 RH Chevelle, Camaro and Z-28 195, 200, 210, 250, 275, 290, 295 & 325 HP 1.9" Outlet
3896956 67-68 283 & 327 RH Truck
3905364 69-72 307, 350 & 400 RH Truck
3932376 69-70 307, 327, 350 & 400 RH Chevelle and Camaro 200, 210, 250, 255, 265 & 300 HP 1.9" Outlet
3932461 69-74 327 & 350 LH & RH Corvette 190, 195, 200, 235, 255, 300, 330 & 350 HP 1.9" Outlet A.I.R.
3932465 69-70 327, 350 & 400 RH Passenger 235, 250, 255, 265, 300 & 350 HP 1.9" Outlet
3932469 69-70 327 & 350 LH Passenger 235, 250, 255 & 300 HP 2.0" Outlet
3932473 69-70 327, 350 & 400 LH Passenger 235, 250, 255, 265 & 300 HP 2.0" Outlet
3932481 69 350 RH Corvette
3940972 67 350 RH Camaro 295 HP
3942527 69-70 302, 307, 327 & 350 LH Chevelle, Camaro, Z-28 and Nova 200, 210, 250, 255, 290, 300 & 360 HP 2.0" Outlet A.I.R.
3942529 69-70 302, 307, 327, 350 & 400 LH Chevelle, Camaro and Nova 200, 210, 250, 255, 290 & 300 HP 2.0" Outlet
3946826 69-70 302, 307, 327 & 350 RH Chevelle, Camaro, Z-28 and Nova200, 210, 250, 255, 290, 300 & 360 HP 1.9" Outlet A.I.R.
3959562 72-74 307, 350 & 400 RH Chevelle, Camaro and Z-28 115, 130, 145, 150, 160, 165, 170, 175, 180, 185 & 245 HP 2.0" Outlet A.I.R.
3973432 70-74 307, 350 & 400 RH Chevelle, Camaro, Nova and Passenger 115, 130, 150, 165, 170, 175, 180, 200, 245, 250, 255, 270 & 300 HP 2.0" Outlet
3986330 69-73 302, 307, 327 & 350 RH Camaro and Z-28 200, 210, 245, 250, 255, 290, 300, 330 & 360 HP 1.9" Outlet A.I.R.
3989036 71-75 350 LH & RH Corvette and Passenger 165, 195, 200, 205 & 270 HP 2.0" Outlet with and without A.I.R.
3989041 69-74 302, 307, 327, 350 & 400 LH Camaro, Z-28 and Nova 115, 130, 145, 150, 160, 165, 170, 180, 185, 200, 210, 245, 250, 255, 290, 300, 330 & 360 HP 2.0" Outlet with and without A.I.R.
3989043 70-73 307, 350 & 400 LH Chevelle, Camaro, Nova and Passenger 105, 115, 130, 145, 150, 165, 175, 185, 200, 245, 250, 255, 270 & 300 HP 2.0" Outlet with and without A.I.R.
3989055 69-72 307, 350 & 400 LH
3997742 71-78 307 & 350 RH 2.0" Outlet
3998902 72-78 307 & 350 RH
10045315 88-94 305 & 350 LH
10045317 88-94 305 & 350 LH
10045317 88-94 305 & 350 LH
10046123 87-92 305 & 350 LH
10046139 84-85 350 LH
10046140 84-85 350 RH
10055734 87-91 350 RH
10092901 89-91 350 LH
10092903 89-94 350 LH
10092905 89-94 350 LH
10108437 87-93 305 & 350 RH
10128448 91-93 305 & 350 LH
10128483 91-93 305 & 350 LH
10166144 91-94 350 RH
10166145 87-90 305 & 350 LH
10166147 89-94 305 & 350 LH
10166158 89-94 305 & 350 RH
10168494 94 265 & 350 LH
10207656 93-94 350 LH
10207657 93 350 RH
10433037 82-86 305 LH
12550621 94 265 RH
12550622 91 350 RH
14007400 80-86 267 & 305 LH
14014437 80-84 305 LH
14014438 80-84 305 RH
14014459 81-86 305 & 350 LH
14014500 79-86 267, 305 & 350 RH
14022625 80-81 305 LH
14031361 82-86 305 RH
14031376 81-86 350 RH
14034069 81-86 350 RH
14034075 81-86 305 & 350 LH
14043373 82-86 305 LH
14050233 83-86 305 & 350 LH
14050282 83-87 305 & 350 RH
14050287 82-86 305 LH
14057029 84-85 350 LH
14057030 84-85 350 RH
14060630 81-86 350 RH
14060633 81-86 305 & 350 LH
14067365 77-86 267, 305, 350 & 400 LH
14068667 85-88 350 LH
14068670 85-88 350 RH
14071200 83-86 305 RH
14075611 83-86 305 LH
14079295 85-86 305 & 350 LH
14079296 85-86 305 & 350 RH
14087511 86-91 350 LH
14087512 86-91 350 RH
14093653 87-90 305 & 350 LH
14093654 87-90 305 & 350 RH
14093655 87-90 305 & 350 LH
14093658 88-94 305 & 350 RH
14093660 87-90 305 & 350 RH
14093682 87-90 305 & 350 RH
14094045 87-90 305 & 350 LH
14094063 87-92 305 & 350 LH
14094064 87-92 305 & 350 RH
14094065 85-88 350 RH
14101054 87-88 305 & 350 RH
14102016 88-94 305 & 350 RH
14102018 89-94 305 & 350 RH
14103206 87-91 305 & 350 RH
14103207 87-91 305 & 350 LH
329225 73-76 454 LH Chevelle and Passenger with and without A.I.R.
353028 73-76 454 LH Chevelle and Passenger with and without A.I.R.
353030 73-76 454 LH Police
3732793 58-61 348 LH Passenger
3732794 58-61 348 RH Passenger
3767583 59-61 348 & 409 LH Passenger
3767584 59-61 348 & 409 RH Passenger
3814682 62-64 409 RH Passenger
3814683 62-64 409 LH Passenger
3822925 62-64 409 LH Passenger & Z-11
3822926 62-64 409 RH Passenger & Z-11
3855161 65 409 LH Passenger 340 & 400 HP
3855162 65 409 RH Passenger 340 & 400 HP
3856297 65 396 LH 325 HP
3856301 65 396 LH 425 HP Corvette
3856302 65 396 RH 425 HP Corvette
3856306 65 396 RH Passenger 325 HP
3857297 65 396 LH Passenger 325 HP
3868874 65-66 396 RH Chevelle 325, 360 & 375 HP Z-16
3869925 65 396 LH Chevelle 375 HP Z-16
3872770 66 396 RH
3880827 66-69 427 & 454 LH Corvette
3880828 66-72 427 & 454 RH Corvette 270,365,390 &425 HP with and without A.I.R. LS-5 & LS-6
3880869 70-72 454 LH Corvette 365 & 425 HP with and without A.I.R. LS-5 & LS-6
3883827 66 427 LH Passenger
3883828 66 427 RH Passenger
3883999 66 396 LH Chevelle 325, 360 & 375 HP
3884504 66-67 396 & 427 RH Passenger 325, 385 & 390 HP
3892307 66-67 396 & 427 LH Passenger 325 & 390 HP
3902401 67 396 LH Chevelle
3904399 66 396 LH
3909879 67-70 396, 427 & 454 LH Chevelle, Camaro and Nova 325, 350, 375, 425, 430 & 450 HP LS-6 COPO
3909880 67 396 RH Chevelle and Camaro 325, 350 & 375 HP
3914613 68-70 396 & 427 LH Passenger 265, 325, 335, 345, 390 & 425 HP
3916178 68-70 396, 427 & 454 RH Chevelle, Camaro, Nova and Passenger 325, 350, 375, 425, 430 & 450 HP COPO LS-5 & LS-6
3969869 70-74 454 LH Corvette 270, 365 & 390 HP with and without A.I.R. LS-5
3989310 71-72 402 & 454 RH Chevelle, Camaro, Monte Carlo and Passenger
3989343 71-72 402 & 454 LH Chevelle, Camaro, Monte Carlo and Passenger
3994045 73-75 454 LH Police

Last edited:
Top
