removing rusted / broken bolts

Discussion in 'Tools and Procedures' started by grumpyvette, Nov 26, 2008.

  1. grumpyvette

    grumpyvette Administrator Staff Member

    READ THIS THREAD
    a few facts!
    ALL of us eventually find were forced to deal with a broken stud or bolt,or sensor that breaks off in the block or heads,it helps a great deal to lower your chances of busting off or stripping a bolt by soaking it in penetrating oil and heating and rapidly cooling it in repeated cycles at the first indication a bolt or studs stuck rather than trying to force it, what your trying to free up, and remove and replace it, hopefully without needing to repair the threads, and its location will determine to a great extent the method youll use to deal with that problem.matter, as to the method to be used in freeing up the bolt threads, and the tools, lubricants or process youll find useful, yeah! we ALL screw up! but with experience you learn some restraint and you learn to take your time!
    IN MOST CASES SOAKING WITH A GOOD PENETRATING & LUBRICATING SPRAY< AND SOME REPEATED HEATING AND FREEZING CYCLES, WITH A TORCH AND FREEZE SPRAY, and REPEATED SPRAY OF THAT PENETRATING OIL WILL FREE UP THE THREADS ON THE BROKEN PART, ENOUGH FOR AN EXTRACTOR BIT TO SPIN IT OUT IF PROPERLY USED

    https://www.youtube.com/watch?v=KFdFsfSAuyc

    EXAMPLE

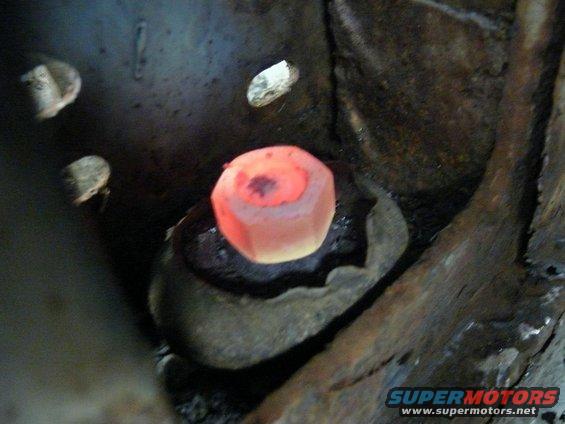

    small bolts like brake bleeder valves on brake calipers, heating the area with a propane torch and rapidly cooling metal with a freeze spray rapidly , cycling the temps tends to have the metal expand and contract, loosening the bond in the rusted or corroded threads, because they expand and contract unevenly, this can be very useful in allowing you to soak in and use various penetrating lubricants to free up jammed threads

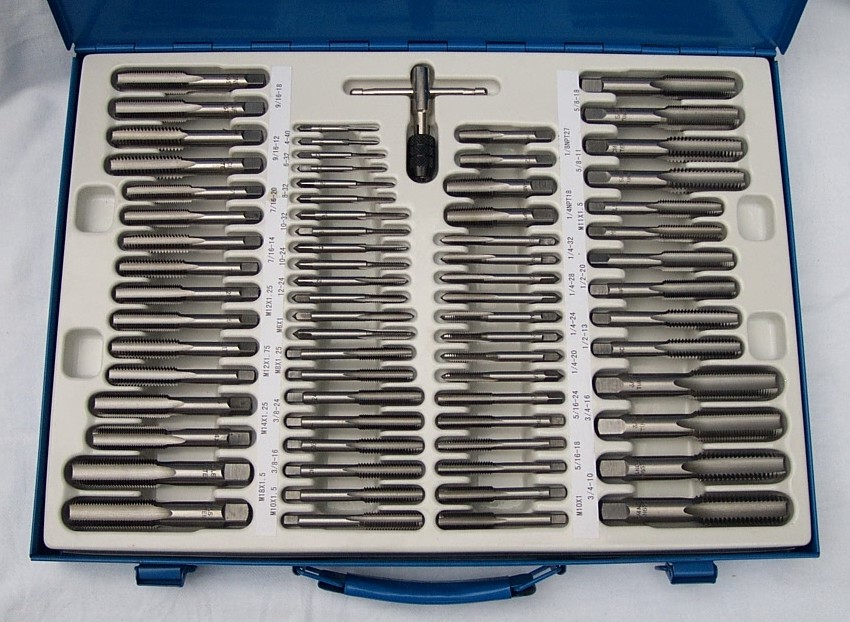

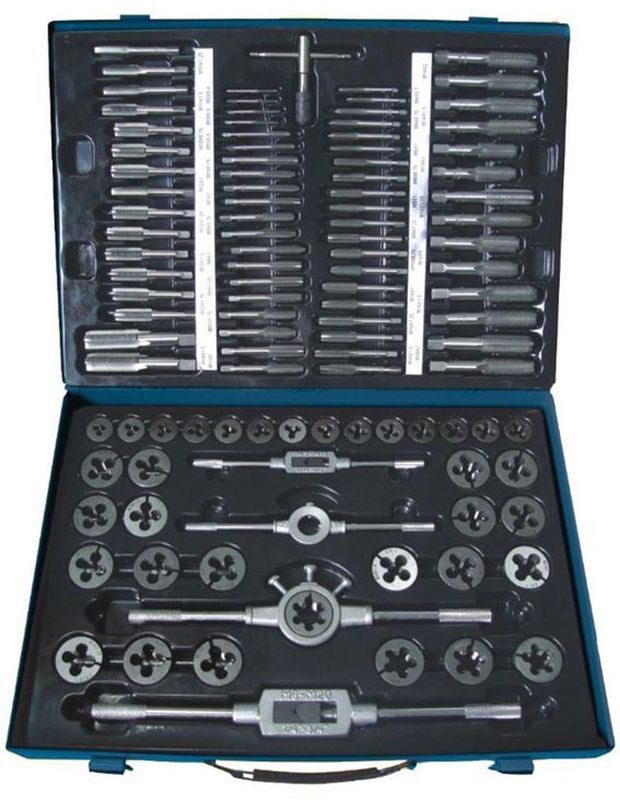

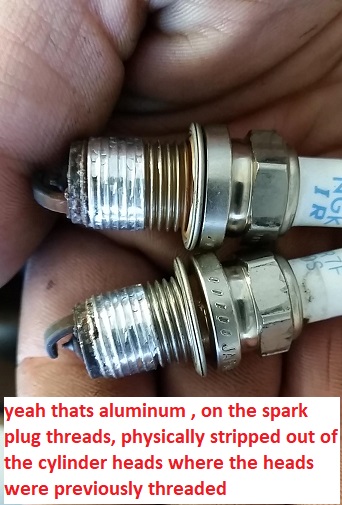

    BUSTED OR STRIPPED THREADS CAN BE REPAIRED THRU USE OF A HELICOIL OR WELDING AND DRILLING & RE-TAPPING

    http://www.mcmaster.com/#thread-repair-kits/=wjqvpt

    viewtopic.php?f=27&t=1262&p=2712&hilit=taps+dies#p2712

    viewtopic.php?f=27&t=4714&p=18266#p18266

    http://garage.grumpysperformance.com/index.php?threads/wheel-studs-and-replacement.4414/#post-55060

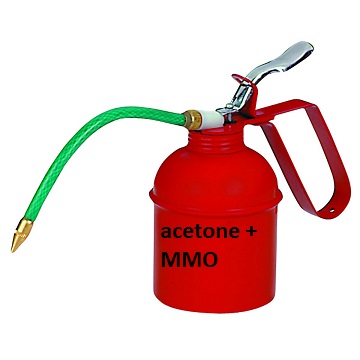

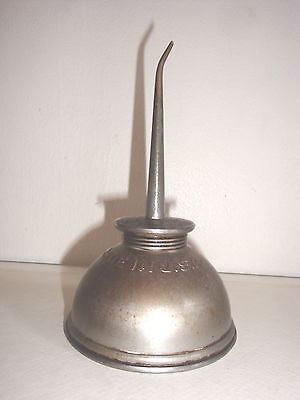

    Ive used marvel mystery oil and acetone mixed 50%/50% for decades as a penetrating oil and it works better than most of the commercial mixtures In spray cans Ive tried IF you soak the nut/bolt repeatedly then let it set over night especially if you heat the bolt with a torch and cool it with that mix a few times so it expands and contracts with heat, and the mix gets to penetrate a bit and seep into micro cracks
    yeah, IF I was your local machine shop Id welcome these type of repair jobs, I'd be thrilled to make a quick $30-$40 for what might take them 15 minutes to do and cost them less than $4 TOO!
    having access to the correct tools and the skill and knowledge to use them correctly makes a job the average guy finds rather challenging a whole lot less difficult
    WATCH VIDEOS, YOULL LEARN A GOOD DEAL










    https://www.youtube.com/watch?v=52-37pPAJ0c

    https://www.youtube.com/watch?v=K34RS6M11uw

    http://www.harborfreight.com/45-Pc-Tita ... 61411.html


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    stop think it thru ,yes its going to be a whole lot cheaper to buy and use the correct spray, penetrating oil or freeze spray to freeze and contract the bolts diam. or heat the surrounding metal and rapidly cool it with penetrating oil than it will be to use tools than it will be sometimes used incorrectly to bugger up, and strip the bolt hole, or bolt threads and need to re-weld and re-drill and tap the intake, brakes or what ever your working on, after you screw it up, buy the two sprays, both the freeze and lubricant sprays use the torch to heat the bolt, use the penetrate oil to cool and lube the bolt, use the freeze to loosen it easily

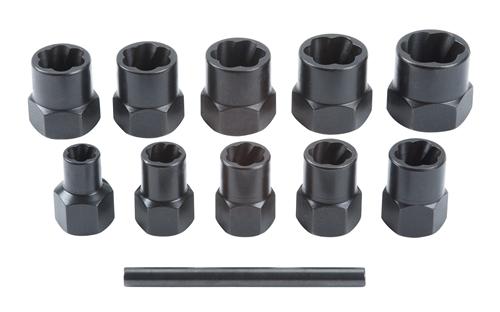

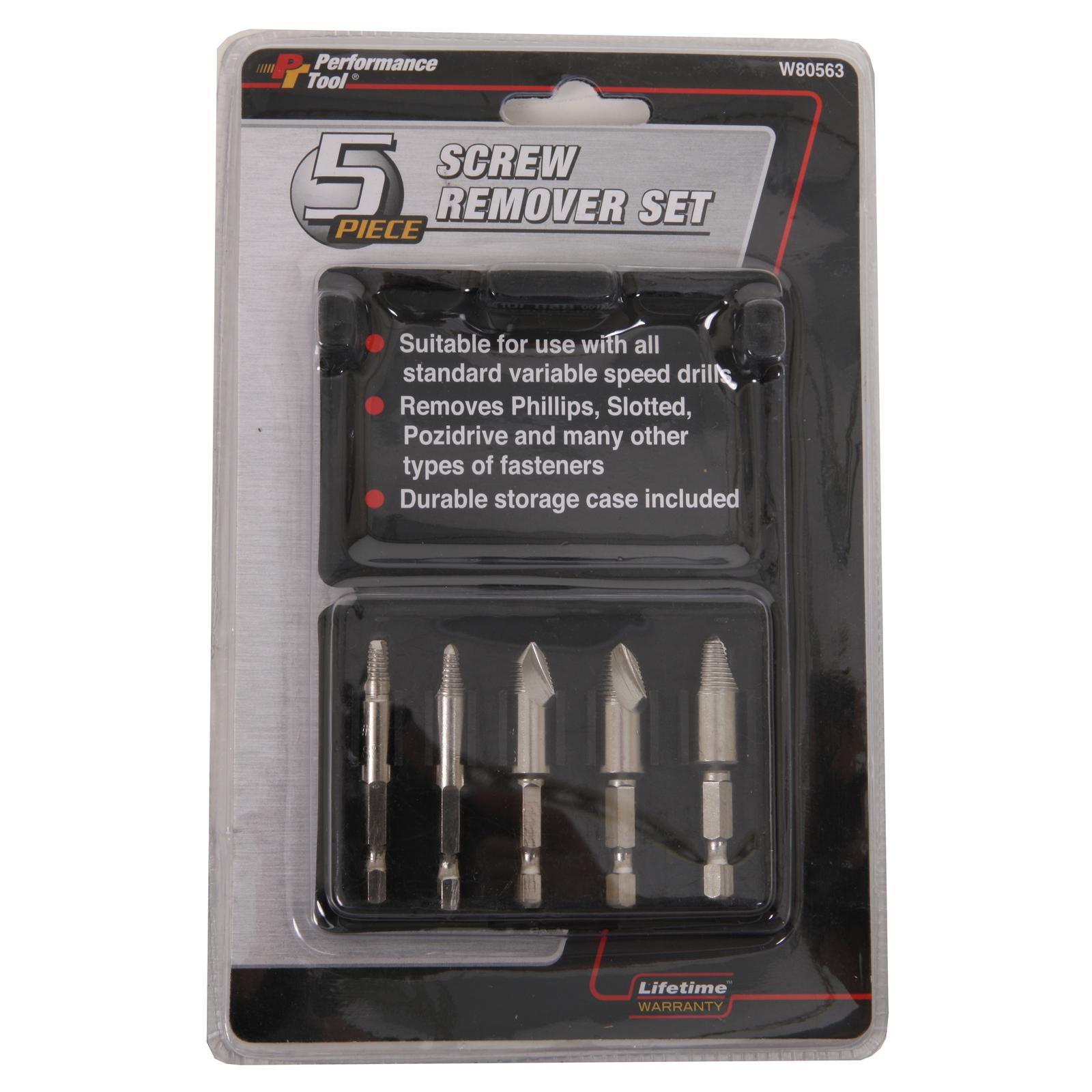

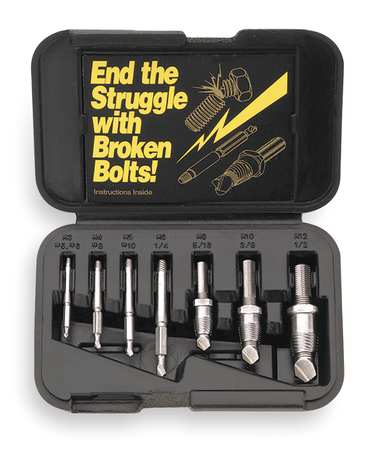

    reverse twist drill bits can be useful
    http://www.northerntool.com/shop/tools/ ... 7AodjQIAhw
    (1)heating the brake fluid bleed fitting cherry red destroys the metals temper and hardness and makes it very easy to round off or sheer off the fitting (neither being ideal)

    (2)the object is to loosen or replace the fitting without damage to the brakes, yes heating with a torch and rapid cooling with penetrating oil can and does frequently result in loosening the fitting but heating more than about 300F reduces the metals strength and frequently results in compounding the problem when the bleed valve fitting rounds off or breaks

    heres the cure on those bleed valves
    heat the area slightly spray oil to cool and penetrate then lay a shop rag on the brake calipers to cover all but the bleed fitting and spray with the freeze spray, the result is the fitting contracts faster than the surrounding metal freeing the threads in most cases on the first or second application of this COMBINED PROCESS of heat,penetrating oil, and rapid freezing of the valve rapidly followed by use of a long 6 point box wrench applying torque to the fitting, (BTW( a couple whacks with a plastic mallet can help in some cases

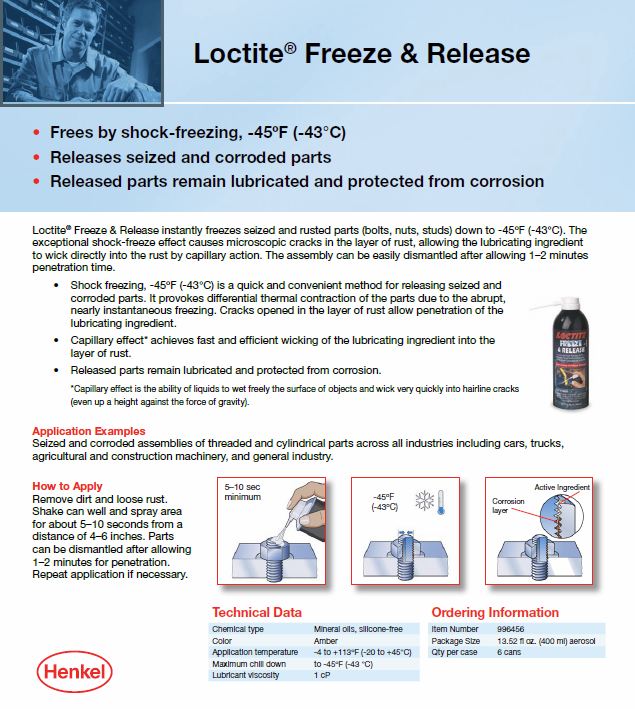

    http://loctitefreezeandrelease.com/

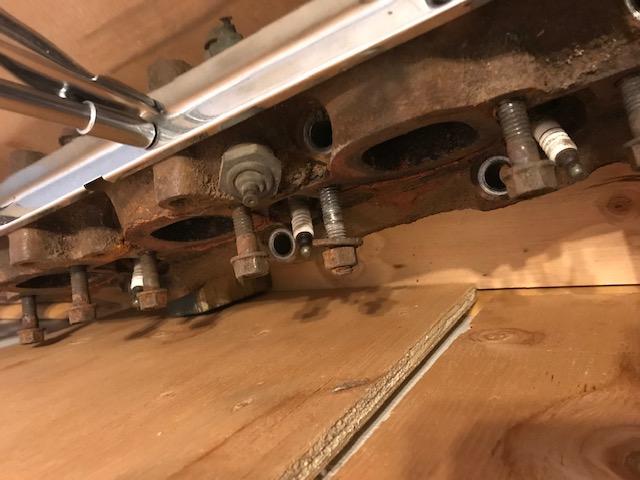

    lets assume youve busted an exhaust manifold bolt
    these have been repeatedly heated and cooled so heating and spraying with a good penetrating oil is a good first try, use of the freeze spray can be very helpful IF you can grasp the bolt above the surface its screwed into,but if it sheared off flush you have little choice but to heat, use penetrating oil, and then use a center punch to dimple the broken bolt body, and drill it out the center of the bolt with drills that are slightly smaller diam (hopefully all the way thru, spray penetrating oil so it reaches both ends of the threads and use an EASY-OUT reverse rotation bit to extract the remaining section of busted bolt thread.
    READ THE LINKED INFO
    viewtopic.php?f=50&t=729&p=1026&hilit=easyout#p1026

    http://www.madelectrical.com/workshop/b ... olts.shtml

    WELDING A NUT ON A BOLT THATS SHEARED OFF WORKS AT TIMES
    https://www.youtube.com/watch?v=aRrz-cphBY4

    http://www.weldingtipsandtricks.com/rem ... -bolt.html

    http://www.bing.com/videos/search?q=wel ... 9C64EDFC2D

    https://www.youtube.com/watch?v=g6w2grAV-oc

    https://www.youtube.com/watch?v=4BFUfGKU_ts

    viewtopic.php?f=27&t=3283&p=8681&hilit=label#p8681

    [​IMG]

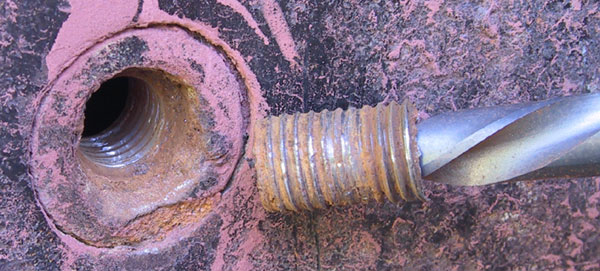

    spray busted stud or bolt threads with penetrating oil




    AT TIME I KNOW YOU GUYS HAD TO IGNORE READING THE LINKS
    [​IMG]

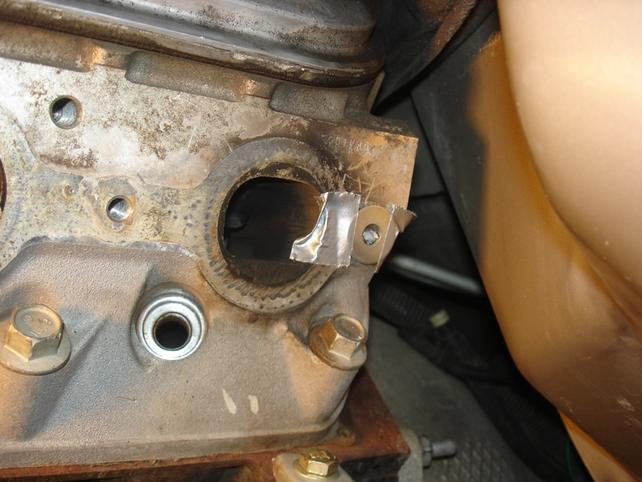

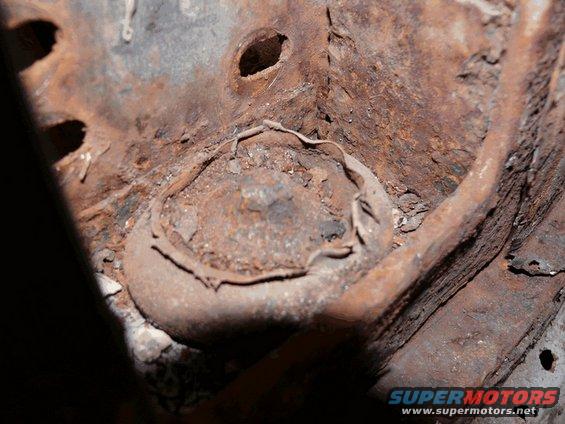

    [b]youll frequently have issues with locations that make it difficult to hold the washer or nut centered over the busted stud while getting ready to weld due to either clearance or lack of having 3 hands available, most of the non-WELDERS MIGHT SUGGEST MAGNETS ,but as most welders soon learn direct heat or an electrical arc kills magnets rapidly, DUCT tape tends to hold long enough to allow the MIG OR TIG welder to form a BEAD but it will of course burn in seconds. many times you can use a spare TIG welding rod bent into a long hook to some higher support point and wrapped around the nut plus duct tape or a long wood dowel wedged in place to get that temporary placement issue handled

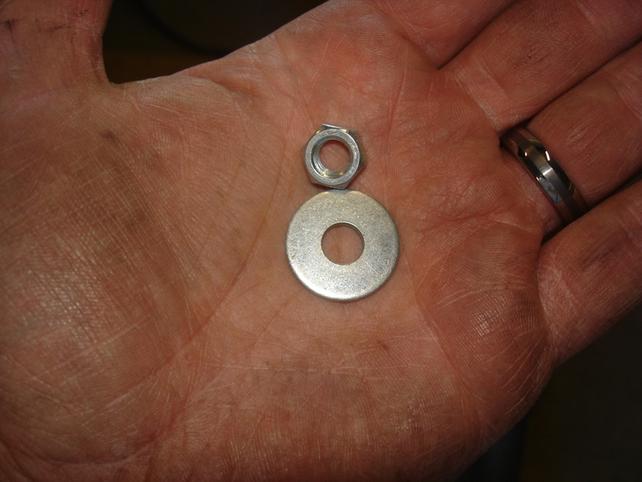

    find a matching washer and nut , placing a fender washer as a shield washer under the nut your welding to the busted bolt or stud helps prevent weld from attaching to anything but the threaded shaft, and the heat drives the penetrating oil into the threads, duct tape and or long needle nose plies come in handy holding it in place and a MIG or TIG welder is preferred

    [​IMG]

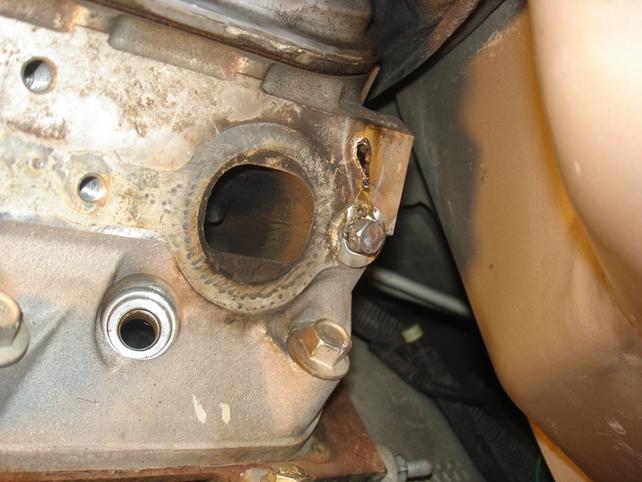

    fill the nut with weld and get the weld pool of molten metal to attach to the busted stud so concentrate on the center heat area
    [​IMG]

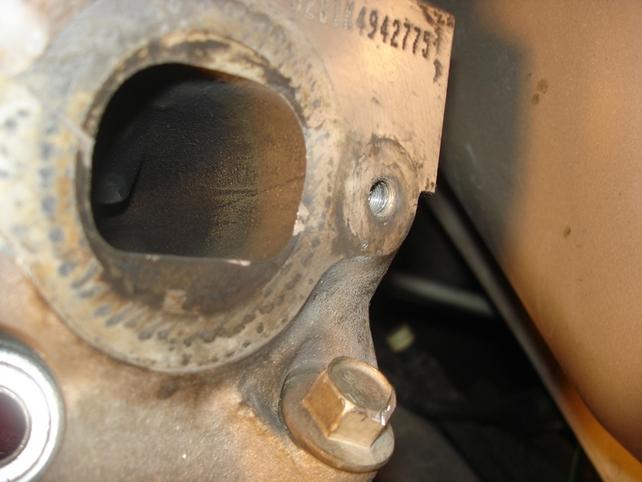

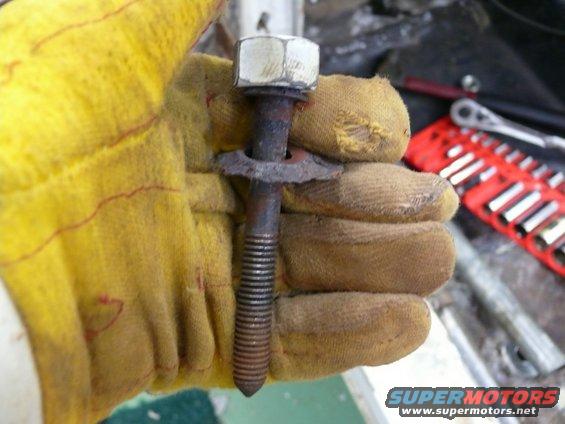

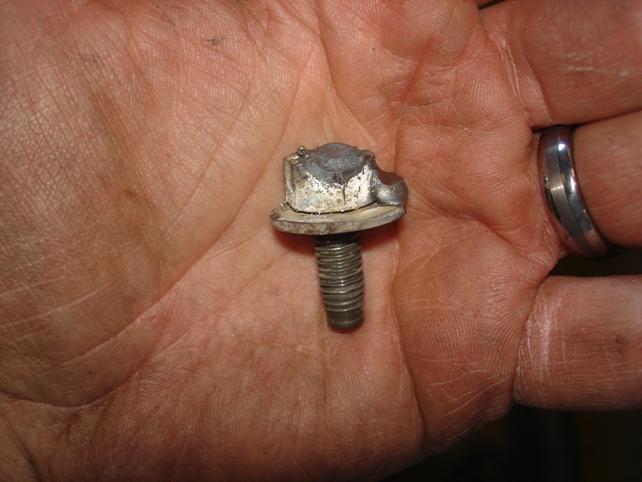

    removed busted stud or bolt with nut welded on
    [​IMG]



    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

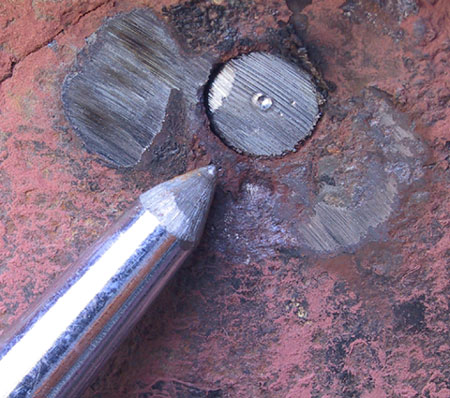

    in an ideal world youll have a decent center punch

    Q: What causes an exhaust manifold stud/bolt to break?

    A: The exhaust manifolds are formed from the factory using fine grain cast iron, and like most metals, it expands and contracts during duty cycles of heating and cooling. This expansion happens naturally, and at first, the manifold and mounting studs are in a state of “elastic deformation.” Elastic deformation is basically expansion and contraction over a period of time retaining the original size and shape. Each duty cycle will provide tension stress on the studs or bolts that hold the manifold in place. The mounting hardware exhibits flexibility over time. However, as the manifold continues to expand and contract more dimensionally, each consecutive time creates larger and larger tension forces that move beyond the elastic state of deformation and become what is referred to as “plastic deformation.” Basically the manifold stretches beyond return and fractures the mounting stud, leaving the manifold permanently deformed and dimensionally changed. This expansion and stretching of the manifold bolts over numerous duty cycles eventually causes too much tension on the bolt(s), stretching them beyond capacity and causing them to fail.

    Information provided by: ProMaxx Tools
    http://www.google.com/imgres?imgurl=htt ... 4&ct=image
    so the drill won,t wander, off center in the first bit of drilling the hole for the bolt extractor, soak with penetrating oil, insert extractor bit , inside the drilled hole and spin the bolt out as it grabs the bolt internally and allows you to rotate it counter clock wise

    http://www.youtube.com/watch?v=A7ftJTUbp4o

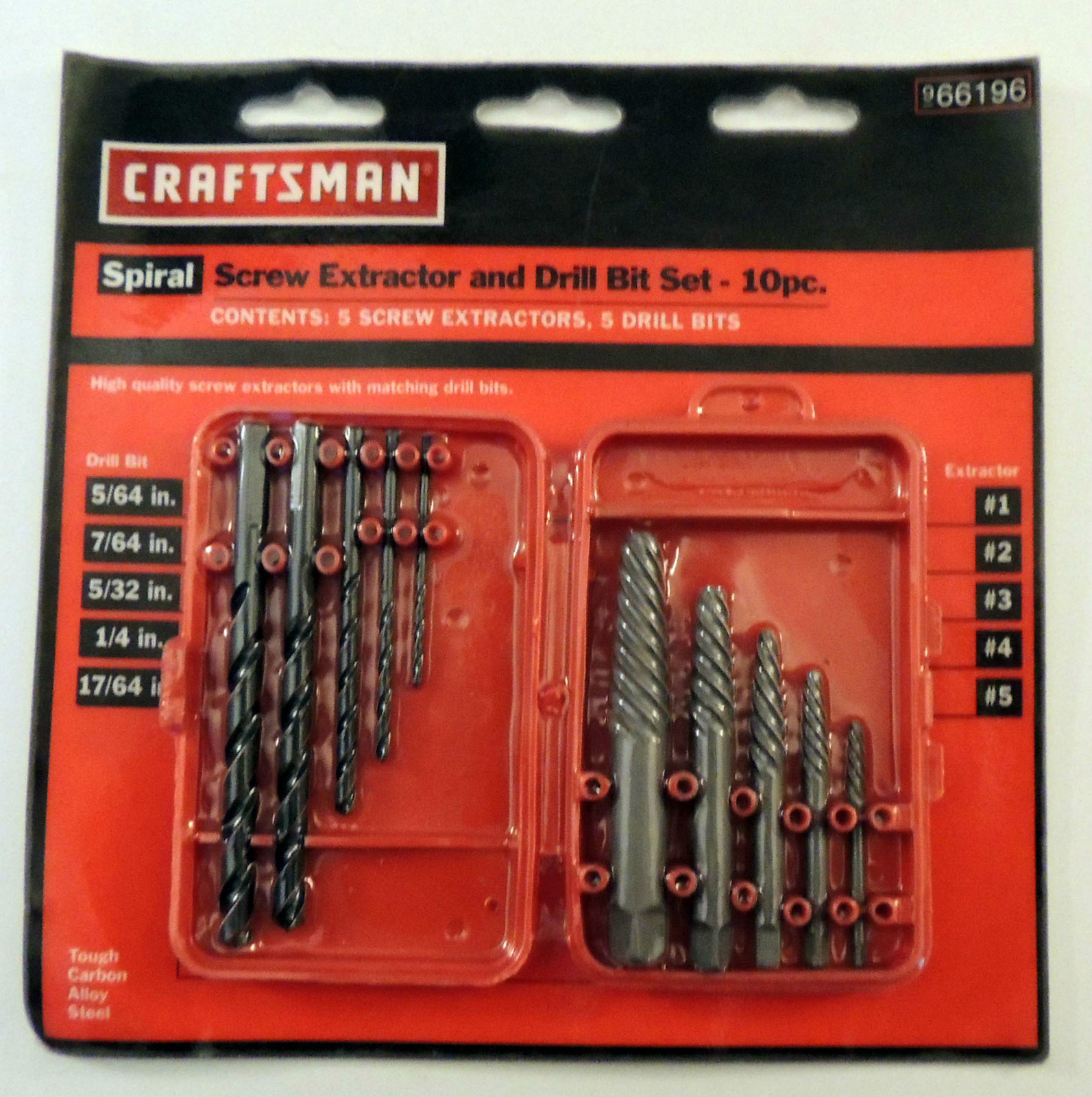

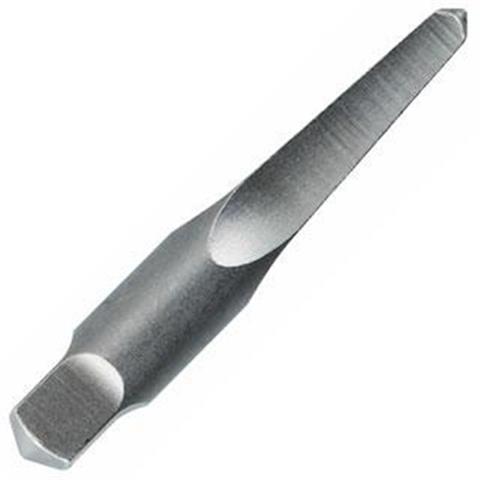

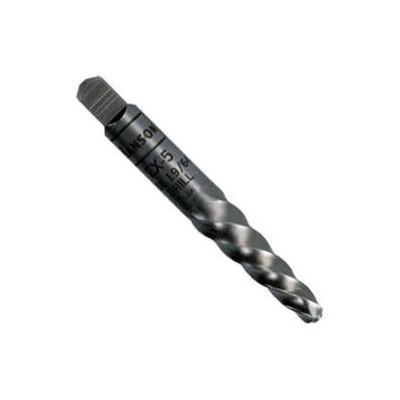

    http://www.brokentap.com/easy-outs.html

    http://www.ehow.com/how_5127433_use-easy-outs.html
    [​IMG]

    RELATED THREADS
    viewtopic.php?f=59&t=1264&p=6141&hilit=block+taps+threads#p6141

    viewtopic.php?f=50&t=729&p=1026&hilit=+rust+bolt+extractor#p1026

    those freeze sprays seem to work best when you previously cycle or rapidly repeat an expansion contraction cycle several times, pre-heat the problem threads several times with a propane torch to about 250 degrees F and cool them off with a 50%/50% mix of marvel mystery oil and acetone then let the freeze spray free it up on about the third or forth heat-lube-cool freeze in rapid succession, that maximizes the expansion & contraction and tends to allow the penetrating lube to suck into the threads
    one more place a IR temp gun comes in handy

    http://www.professionalequipment.com/xq/ASP/ProductID.3461/id.22/subID.177/qx/default.htm
    [​IMG]
    when selecting an IR gun for automotive use, you really want to be able to read from 0 F deg-about 1400F deg. to cover most conditions you'll test for
    [​IMG]

    keep some penertating oil/acetone, mix a torch, and freeze spray plus the IR temp gun, in the shop
    [​IMG]

    viewtopic.php?f=50&t=729&p=1026&hilit=easyout#p1026

    http://www.freealloil.com/

    http://www.crustyquinns.com/tech/easyout.html

    http://www.asashop.org/autoinc/may2003/techtotech.cfm

    if you can drill thru the center of the broken bolt with a bit approximately 2/3 the diam. of the broken bolt, until the bit goes ALL the way thru then soak the $%^ out of it with FREEALL penetrating oil,(this stuffs amazing) this will allow the oil to soak in from both ends of the broken threaded section, let it soak at least 30 minute while you re-apply more spray oil every few minutes, then insert the easy out or reverse twist drill bit,and gently twist the broken bolt remains out of the threaded hole, BTW heating and cooling the bolt, helps. heat with a propane torch the cooling it with the spray oil helps to loosen its grip on the threads if its really stuck

    http://www.jackstoolshed.com/index/page ... ll+Bit+Set

    your local hard ware store probably has COBALT DRILL BITS, or DIAMOND DRILL BITS, but read the label you need, a bit rated for hard steel, take your time, drill a lower RPM speeds and keep the bit wet with spray oil AT ALL TIMES or it will burn and dull the edge, youll most likely need a 1/8" and a matching EASY OUT

    http://www.diyfaq.org.uk/powertools/drillfaq.htm

    http://www.askthebuilder.com/How_To_Dri ... ideo.shtml


    http://www.toolprice.com/category/screw ... drillbits/

    http://www.toolprice.com/product/1218A/ ... moval.html

    http://www.toolprice.com/product/8304D/ ... o_USA.html

    [​IMG]


    Some of you might appreciate this. Machinist's Workshop magazine
    tested penetrants for break out torque on rusted nuts.
    They are below, as forwarded by an ex-student and professional
    machinist, Bud Baker.
    They arranged a subjective test of all the popular penetrants
    with the control being the torque required to remove the nut from
    a "scientifically rusted" environment.
    *Penetrating oil ..... Average load*
    None ...................... 516 pounds
    WD-40 ..................... 238 pounds
    PB Blaster ................ 214 pounds
    Liquid Wrench ............. 127 pounds
    Kano Kroil ................ 106 pounds
    ATF-Acetone mix..............53 pounds


    The ATF-Acetone mix was a "home brew" mix of 50 - 50 automatic
    transmission fluid and acetone,
    ( IN MY EXPERIENCE MARVEL MYSTERY OIL AND ACETONE MIXED 50%/50% works slightly better and faster).
    Note the "home brew" was better
    than any commercial product in this one particular test.AND ID POINT OUT THAT MMO/ACETONE MIX PENETRATES QUICKLY AND SEEMS TO WORK WHERE MANY OTHER PENETRATING OIL FAILS





    IF youve ever rounded off a flare nut, on a master cylinder, brake caliper,transmission or radiator and you want to prevent it from happening again, theres a simple procedure for getting them loose that works about 90% of the time
    IN THE FUTURE WHEN DEALING WITH FLARE NUTS, IF THEY ARE NOT EASILY TURNED, STOP AND FOLLOW THIS PROCEDURE

    (1) spray with a good penetrating oil,
    (2) heat briefly with propane torch, or acetylene torch
    [​IMG]

    (3) spray with OR A GOOD PENETRATING OIL like pb blaster / liquid wrench, freealloil etc. and tap frequently and lightly with a hammer on the broken stud or bolt to allow vibration to let the penetrating oil seep into the threads if it can,
    http://www.freealloil.com/

    (2) heat briefly with propane torch
    [​IMG]


    (3) spray with

    [​IMG]
    http://www.freealloil.com/ OR A GOOD PENETRATING OIL like pb blaster / liquid wrench,\l etc.

    (4) wait 5 minutes MINIMUM and RE-SPRAY with
    http://www.freealloil.com/ OR A GOOD PENETRATING OIL like pb blaster / liquid wrench, etc.


    HEAT works in some cases but heat expands both the bolt and the area around it, repeated cycling of heat and rapid cooling with penetrating lubricant spray oil can help, but theres a different option, you can freeze the bolt, this contracts the metal and loosens it, and spray directly on the bolt shrinks it noticeably faster than the much larger mass surounding it, so try both options
    (5)spray for a minimum of 15-16 seconds with
    http://www.loctitefreezeandrelease.com/
    [​IMG]
    [​IMG]
    http://www.amazon.com/Loctite-Freeze-Re ... B001VXU474

    and immediately

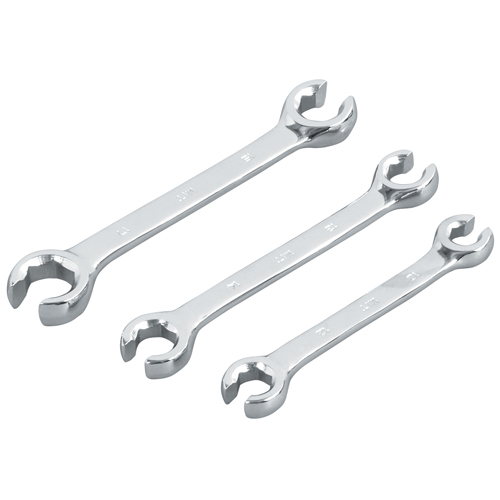

    (6) USE THE CORRECT WRENCH


    http://www.csnstores.com/asp/show_detai ... ku=IHI1184


    [​IMG]

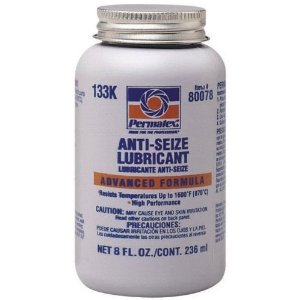

    before RE-INSTALLING COAT THE THREADS WITH ANTI-SEIZE PASTE, as it tends to prevent future problems
    [​IMG]


    yes you can most likely get the bolt out by tapping it and the use of lubricant spray or heating and cooling or just the freeze spray but your taking a significant chance of the stud not being nearly as easy to remove, its your choice naturally but in the long run doing things correctly using all the steps in order will save you a good deal of time and money.
    the lube, heat,lube,freeze in rapid succession, then the gentle but consistent twist torque of the easy out in the drilled centered hole in the broken bolt or vise grip applied to a bolt or stud thats sticking above the surface enough to grip will remove most studs or bolts, installing the studs or bolts with ANTI-SEIZE on the threads prevents this from occurring

    READ THE LINK
    viewtopic.php?f=50&t=729&p=1026&hilit=easyout#p1026
    obviously I'm not there, to help out, but repeated heat, lubricate, freeze and lube application cycles WILL allow the threads to be broken loose from the corrosion, in the threads holding the stud or bolt, its simply a mater of repeated expansion and contraction of the two metals and the difference in heat transfer between the two parts, most new guys get into a hurry, thinking they can do it once or force it, , and don,t use enough heat or lube spray or freeze spray and try to force it rather than allow the repeated cycling to allow the lubricant to seep into the threads.
    yes it usually helps to drill a small centered hole thru the bolt so lubricant spray can act or seep in from both ends of the threads, but forcing it usually results in the broken extractor bit you experienced, your surely not the first or the last guy to do that its part of the learning curve.
    if the bolt can,t be grasp with vise grips youll need to center punch then carefully drill the busted section of bolt or stud., DON.T by cheap imported screw extractors the cheap extractors tend to be hardened excessively and BRITTLE, take your time, is it won,t back out keep repeating the heat.lube and freeze cycles, it will come out, there are reverse twist drill bits that can also tend to make the process far easier in many cases, and remember use of quality drill bits and a drill press usually gets far more consistent results than a hand held drill thats rarely going to be strait or centered.
    cheap drill bits drill bit extractors or rushing the process invites failure
    high drill speed or cutting without lubricant or excessive pressure only causes the drill bit to burn, dull or wander take your time and do whats required slowly and carefully with quality drills and taps or extractors ,if you can,t slow down,and do whats required or don,t have the correct, tools take it to a good local machine shop.


    viewtopic.php?f=27&t=4714&p=12809&hilit=drill+bits#p12809

    viewtopic.php?f=27&t=970&p=1691&hilit=drill+bits#p1691

    viewtopic.php?f=50&t=7132&p=23959#p23959

    http://www.crustyquinns.com/tech/easyout.html

    HERES A DIFFERENT OPTION

    http://www.theinductor.com/


    http://www.jegs.com/i/JEGS/555/W88030/1 ... 7AodeF8Ajg
    [​IMG]

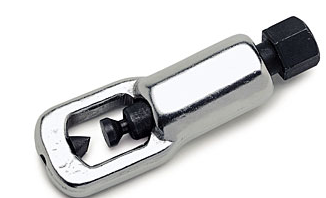

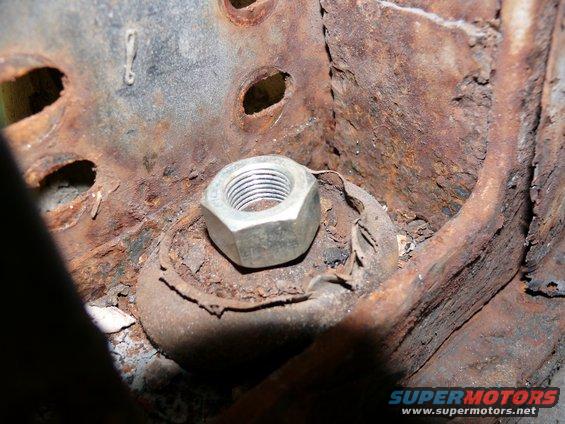

    on rare occasions you'll have a nut rusted too a stud that needs to be split off and the stud re-threaded or replaced

    Last edited by a moderator: Jun 27, 2018
  2. Big_John

    Big_John Member

    Re: removing rusted bolts

    I've used left handed drills many times with good success. Every situation calls for different solutions. Heat from an oxyactelene torch works a bit better then a propane or map gas torch.

    I've even blown the center out of larger bolts with a cutting torch... If you do it right, the bolt is gone and the threads are still good. Its not for the faint of heart though.

    read this link
    http://garage.grumpysperformance.com/index.php?threads/unseizing-a-piston.11600/#post-53928


    [​IMG]
    http://www.freealloil.com/
    [​IMG]
    you might want to try this I found it works even better than most common penetrating oil sprays
    One neighbor of mine ,he found two rather extensive sets,SAE/METRIC TAP & DIE SETS MADE IN EUROPE NOT CHINA, at a yard sale,that were for sale, where a widow was moving after selling her home,
    the garage was being cleared out, and it was rather obvious she had no clue what the stuff was,
    that the tools had a bit of surface rust on only a few pieces and one or two missing pieces but he only paid a negotiated $130 for both sets.
    I hope I can slip him a few bucks extra profit and get the stuff as he has as much use for it as a pelican has for snow shoes as he can,t and won,t,
    even attempt to do an oil change, he simply bought the stuff because hes seen similar stuff around my shop and realizes its not cheap, and he got it at a bargain price.
    [​IMG]
    [​IMG]
    I've had pretty good luck using PB Blaster penetrating oil too.

    viewtopic.php?f=50&t=2204

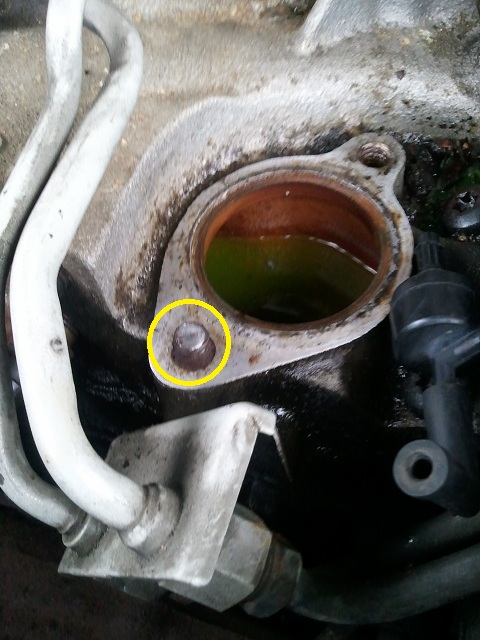

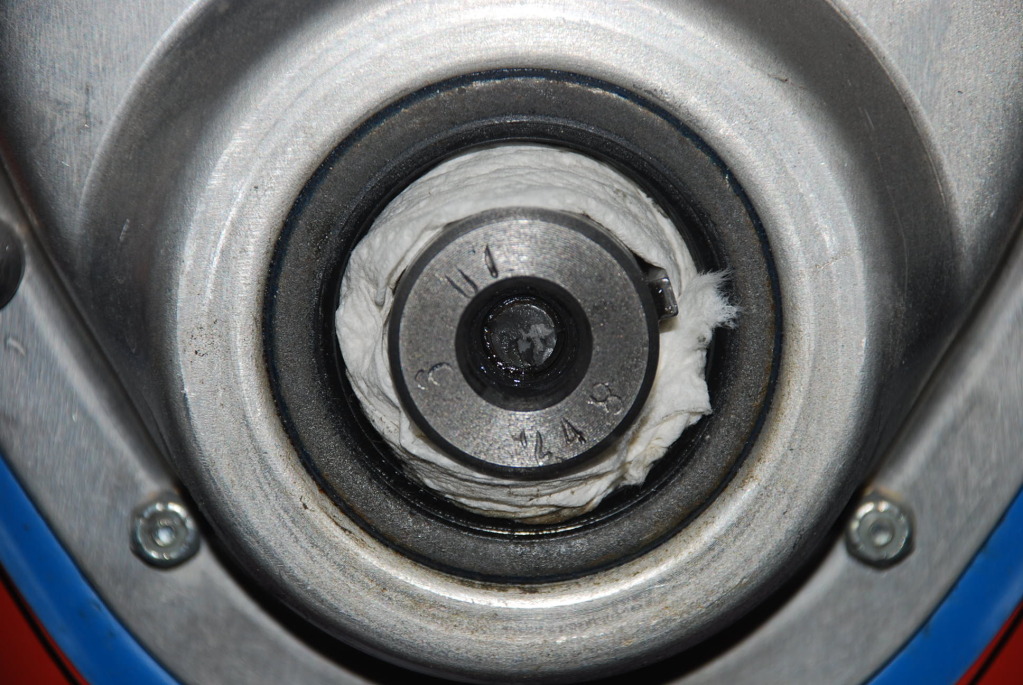

    a good example, of a snapped off bolt in need of removal
    [​IMG]





    Last edited by a moderator: Feb 8, 2020
  3. grumpyvette

    grumpyvette Administrator Staff Member

    Re: removing rusted bolts

    OK lets say you've screwed up and busted off a EASY-OUT hardened steel bit during the bolt removal process, now what?
    obviously you'll quickly find out that standard drill bits won,t touch a l EASY-OUT hardened steel bit style bit as its far harder than most standard drill bits

    you should know that hardened steel requires a slow drill speed (UNDER 300rpm in most cases) AND REQUIREs a constant flow of cooling oil, or a hardened drill bit will very quickly loose its edge, in seconds in some cases, YES IM WELL AWARE,that the tendency is to lean on the drill bit and spin it as fast as you can, which is exactly the wrong approach here, you need to apply steady pressure and low drill speeds and frequent lubrication, Ive used marvel mystery oil mixed with about 30% acetone as a lubricant for years with good results, but its very important to lube frequently,and drill slowly WD40 works as does CRC spray lube.

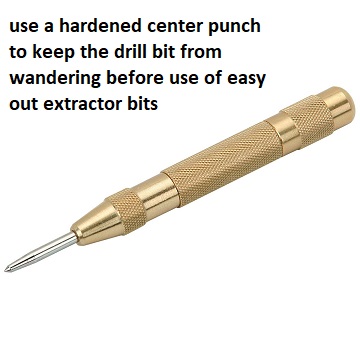

    a hardened center punch helps center the bit and keep it from wandering off center.

    http://www.ehow.com/video_4950955_drill ... steel.html

    http://www.youtube.com/watch?v=D4q8UhbpaG0

    When to Use a Carbide Drill Bit
    By: Gene Rodriguez, III

    Drill bits undergo a lot of stress when drilling a hole. The high-speed rotation of drill bits generates friction that, in turn, generates heat. The friction between drill bit and material leaves drill bits slightly duller after each use. The heating and cooling of the drill bit material can weaken the internal structure of the bit over time.

    The Common Drill Bit
    Common home repair drill bits are made of steel or High Speed Steel (HSS). Although inexpensive, common steel drill bits tend to wear out or break very quickly. HSS drill bits last longer than steel, but are more expensive. These types of drill bits are most effective when used on wood, drywall or plastics.

    A Bit Stronger
    Coated drill bits use another, harder material to coat steel or HSS drill bits. Titanium carbide or titanium nitride coatings can increase the lifespan of a drill bit by two to three times. These types of drill bits are useful when drilling hardwoods or thin metals.

    When The Going Gets Tough
    Carbide drill bits are among the strongest drill bits available for home use. Carbide drill bits are more expensive than steel or titanium coated drill bits, but will last longer and stay sharper.

    Carbide drill bits are absolutely necessary when drilling stainless steel or other high-density materials. No other drill bit can handle the job.

    Regardless of the material that you usually drill, a carbide drill bit will last up to 25 times longer than a common steel bit. This can make carbide drill bits an economical choice for woodworking, furniture building or other large-scale projects.

    When cutting dense material, use a cutting lubricant to avoid generating excessive heat. Overheating a carbide drill bit will shorten its lifespan. Always let the drill bit do the work. Applying too much pressure will quickly dull your drill bit.

    http://www.ncprogramming.com/drill_size_chart.html

    http://www.thetoolhut.com/tap-drill-sizes.html

    http://www.drillbitwarehouse.com/home?p ... egory_id=9


    titanium drill bits, better than high speed steel but may not be hard enough

    Carbide drill bits,very good but fairly expensive

    diamond drill bits
    --best, very expensive

  4. grumpyvette

    grumpyvette Administrator Staff Member

    Re: removing rusted bolts

    BOBB was kind enough to post this tip
    "Paul, I noticed in your post on removing broken bolts and such that you dont seem to use a welding machine much. i almost always use one. stick or mig depending on situation. there is a rod called an extractor rod or something like that for stick welders. most of the time i get a thick flatwasher with the plating removed. hold it down over the offending broken part, and hit it with a good hot tack, dead center. then keep hitting it with tacks till i can get the washer involved. then its a good hot burn dead center. then get a nut. hold it on there standing sideways, and weld that on. let cool and then wiggle it loose. i have done this dozens of times over the last 30+ years and its the way i do it almost all of the time, even on machine screws. you can even do it with the bolt broken 2-3 threads down in the hole if you have that anti burn welding putty. i don't share this method much but do with it as you wish. I like it on real old rusty stuff thats been broken off for years. the concentrated heat breaks the rust real well. try it Im sure you will like it."


    BOBB,Ive done it, in the past,and your correct it works, great, but probably 8 out of 10 guys either don,t own a welder or don,t have the skill to use it correctly, this info is certainly useful and valid for the few that can use it

  5. mathd

    mathd solid fixture here in the forum

    Re: removing rusted bolts

    Ok, and now if you have an oil pan bolt, that was too long(because it was made for a aluminium oil pan wich is thicker) AND who also got overtorqued and broke( Yeah when i go stupid..).. I tryed drilling it out with reversed drill bit didnt work, i tryed easy out wich broke in it(it also grabbed the block since the easy out was oversize to the bolt hole"thats what happened after bending the 2 smaller one of the kit..."). Apparently i was never able to drill the easy-out with a carbon drill bit, i should have tryed slow speed and oil/cooling. But i feel like this one will never come out since it got stuck tappered too far in the block where there is no thread tapped.

    I have no oil leak so far so ive kept it that way, but if an oil leak happen i will try the welder method otherwise i will have to change the block completly or find a competent shop(hard to find a shop that can do this job wher i live) to weld and drill/tap a new bolt hole.

  6. northrnyankee

    northrnyankee Well-Known Member

    Re: removing rusted bolts

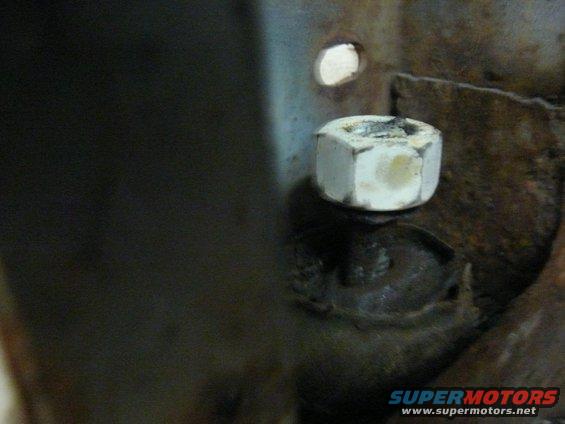

    for this one I'd weld a nut to the stud..

    [​IMG]









    Last edited by a moderator: Dec 7, 2016
  7. bobinda808

    bobinda808 Member

    Re: removing rusted bolts

    i realize that not everyone has the means or ability to weld a nut on it. so its back to the drill. the drill that seems to always wander off the centerpunch. (its the magnetical force of the rotation of the planet that does this) no biggy, just steer the bit back to center by tilting it as much as needed. it like a gun, aim it where you want it to go. when it gets back to center aim it straight into and through the bolt. if you broke a tap off in the hole you will need a tap extractor or a welder cause drilling a tap or other such very hard metals like a carbide die grinder bit is near impossible.

  8. grumpyvette

    grumpyvette Administrator Staff Member

    Re: removing rusted bolts

    a drill press , used with a vise holding the part securely and use of quality drill bits used while taking it slow and easy with lots of cutting oil
    will make this an easy process about 20%-40% of the time the other 60%-80% of the time is a TOTAL P.I.T.A. because you can,t for a dozen reasons get the defective part up on a drill press vise, but the quality of the drill bits and cutting oil and slow drill rpms still apply if you want to be successful..many, probably most guys find out that hand held drills and simply applying more pressure to the drill and rpms invariably results in burnt, dull ruined ,broken or bent drill bits that won,t remain centered in the broken stud or bolt

    read linked info
    viewtopic.php?f=27&t=4714&p=12809&hilit=drill+bits#p12809


    and if you screw up and bust the drill or TAP?
    http://www.waltontools.com/

    http://www.waltontools.com/prod.htm

  9. Dustytrix

    Dustytrix Active Member

    Re: removing rusted bolts

    I have heated bolts up or the area around the bolt, and then used wax to penetrate the threads, it works as good as oil. Just something different, for certain situations.

  10. grumpyvette

    grumpyvette Administrator Staff Member

    Re: removing rusted bolts

    Ive tried that also, and your correct in some cases it works just fine, but the best penetrating/lube oil Ive yet found hands down is

    [​IMG]
    http://www.freealloil.com/
    [​IMG]
    you might want to try this I found it works even better than most common penetrating oil sprays
    and a 50%/50% mix of marvel mystery oil and ACETONE is also really effective
    Id try several repeated cycles of using a propane torch to heat the stud and rapid cooling with
    http://loctitefreezeandrelease.com/
    Ive always found that heating a stuck or busted bolt with an acetylene torch then dribbling a 50%/50% mix of marvel mystery oil on the bolt to cool it several times in repetition tends to allow the penetrating oil mix to penetrate, and now that theres
    http://www.loctitefreezeandrelease.com/
    following up with freeze spray works even better
    OR
    [​IMG]
    [​IMG]

    viewtopic.php?f=50&t=837&p=1264&hilit=taps#p1264



    well worth watching


    if it was not loose in a few minutes
    Id try soaking it in a 50% / 50% mix of MARVEL MYSTERY OIL AND ACETONE AS A SOLVENT/PENETRATING OIL for a few hours then giving it a few whacks with a plastic hammer a few times while letting it soak over night then use the freeze spray, yes you might need to drill and easy out a real stubborn stud but you might be surprised at what time , persistence and repeated rapid extreme swings in heat cycles, expanding and rapid cooling with oil with penetrating oil will do, especially with the torch, lube and freeze spray

    Last edited by a moderator: Dec 19, 2018
  11. grumpyvette

    grumpyvette Administrator Staff Member

    Re: removing rusted bolts


  12. 87vette81big

    87vette81big Guest

    Re: removing rusted bolts

    I will Try Your Acetone & Marvel Mystery Oil Trick Next time Grumpy.
    Its working for You.
    Marvel Mystery Oil is good stuff.
    Been using it lately in all my vehicles.

  13. hcbph

    hcbph New Member

    Re: removing rusted bolts

    I have not seen MMO and acetone used before, but I have seen ATF and acetone used with superior results. I've seen some woodworking machinery that was left outside for decades and rusted up solid that a ATF/Acetone 50-50 mix was used on and fasteners were removed. Like anything else, it was not immediate but it worked.
    Another one if it's steel and not alloy or pot metal parts, sometimes electrolysis can be used to get parts loose in addition to removing rust. It also does a good job of removing old paint. Again this has been used for years on old woodworking equipment being restored.

  14. grumpyvette

    grumpyvette Administrator Staff Member

    Re: removing rusted bolts

    yes thats a good point that most newer guys don,t seem to fully appreciate !
    several repeated cycles of rapid heating
    ,followed by rapid cooling breaks the corrosion surface bonds in rusted threads, by soaking it down with that 50%/50% acetone/ M.M.O.mix and allowing time to let the penetrating properties of that mixture, soak into the cracks and threads over several minutes after each cycle or expansion and contraction, this can usually be done in 3 too 5 cycles if a good deal of the penetrating lubricant is used, but in rare cases it could take hours or even days are at times ,are required for the threads to be fully penetrated and loosed on stubborn ,heavily rusted bolts and most guys want to rush and force it,taking your time will allow the bolt or stud to be removed in most cases with little damage to the main component, rushing the process can and frequently does cause expensive repair work so going back and soaking it repeatedly and in some cases placing a sopping/dripping wet piece of scrap rag soaked in the mix on top of the frozen bolt or nut tends to aid penetration, rushing it seldom produces the desired results, but having a bit of patience frequently pays off in far easier to repair parts, where trying to force it results in increased repair and replacement costs.
    that fact can be critical on nearly impossible to find older parts, that will be hard to replace or repair if extensively damaged

    ID also point out that coating the threads with a good quality ANTI-SEIZE paste before they were assembled will do a long way toward preventing it from re-occuring [​IMG]

    RUST REMOVAL RELATED
    viewtopic.php?f=71&t=9753&p=36702&hilit=electrolysis#p36702

    viewtopic.php?f=51&t=2300&p=30653&hilit=electrolysis#p30653

    viewtopic.php?f=57&t=74&p=93&hilit=electrolysis#p93

    viewtopic.php?f=50&t=3224&p=19693&hilit=+rust+preventive+spray#p19693

    viewtopic.php?f=61&t=5003&p=25222&hilit=rust+acid#p25222

    Last edited by a moderator: May 19, 2020
  15. 87vette81big

    87vette81big Guest

    Re: removing rusted bolts

    One of the Worst a Modern Day Mechanic faces today is Broken Exhaust manifold studs on a Ford Triton 2-valve Engine on a 4.6, 5.4, 6.8LV10 in a F-150, F250 2wd or 4wd pickup or Ford Excursuon with 200,00-400,00 miles on the Odometer.
    Working against the Flatrate Clock.
    Job only pays 8-10 hours all together.
    In this Economy you must do or starve & your family starves too.

    Welding nuts only works
    1/2 the time. Steel is fatigued & keeps snapping off.
    Many snap off 1/4-1/2" below the surface.
    Not uncommon to have 10-22 Broken off 8mm studs.
    You don't want to remove both heads because its Chain driven SOHC.
    Its a Real Mother F of a job to do.
    Done at least 50 Broken exhaust manifold to cylinder head jobs in last 5 years.

    Making your own Short Stubby 2-3" Drill bits is a must do.
    Use a Snap On Right Angle Low profile Reversible Air Drill.
    Only way to get in & drill.
    Cut drill bits off with a cutoff wheel.
    Use Straight shank part.
    Resharpen on a bench grinder or Drill Doctor.
    A few Solid Carbide Drill bits Twist flute style good to have also.

  16. grumpyvette

    grumpyvette Administrator Staff Member

    I don,t know why this is ignored by so many people,
    before RE-INSTALLING
    , YOUR NEW SPARK PLUGS
    COAT THE SPARK PLUG THREADS,
    WITH ANTI-SEIZE PASTE,
    as it tends to prevent future problems

    [​IMG][​IMG]
    http://garage.grumpysperformance.com/index.php?threads/why-use-anti-seize-paste.9424/#post-39167

    be very sure you use anti-seize paste on exhaust manifold stud/bolt threads also or you'll regret not doing so later
    [​IMG]

    I recently had a guy bring a 1989 corvette into the shop, 7 of the 8 spark plugs were,locked solidly in the aluminum heads,
    and after he tried to remove and change them,
    he found they were locked solidly in the heads ,to the point they were just spinning only with a long breaker bar, and the threads on the plugs were filled with stripped aluminum that used too be threads in the aluminum head castings,
    or put a bit differently,there were no longer the spark plug threads,in the heads, as that aluminum was wrapped around the spark plugs that were removed taking the previously machined aluminum threads out of the heads in the process.
    the heads were totally stripped, out and the plugs were not going to be removable. this REQUIRES taking the heads off,
    and too a machine shop to be re-welded and re-machined in most cases.
    this could very easily cost well in excess of $300 and its so easy to prevent.
    yes there are over sized steel spark plug thread, replacement thread inserts that can be used in some cases
    but even those are best installed correctly with the damaged heads off the engine and work done at a trusted machine shop.
    yes there are thread chaser tools
    [​IMG]
    [​IMG]
    [​IMG]
    but in many cases the heads are damaged to the point the only really good option is weld up the damage and re-cut new threads
    https://www.drilldoctor.com/compare-drill-bit-sharpeners

    https://www.thesawguy.com/best-drill-bits-steel/


    well worth watching
    your almost sure to need a 90 degree drill to gain access to drill and use an easy out tool

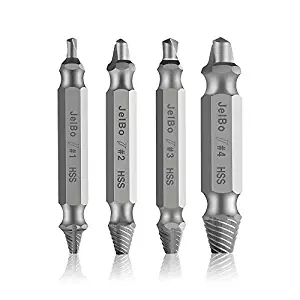

    be sure to accurately center punch the broken bolt before drilling it to use an easy out screw extractor
    [​IMG]

    https://www.harborfreight.com/spring-loaded-center-punch-621.html

    [​IMG]
    https://www.amazon.com/DEWALT-DCD74...636101&sr=8-1&keywords=dewalt+90+degree+drill


    [​IMG]
    https://www.amazon.com/Extractor-Ha...+bolt+extractor+set&psc=1&smid=A2O3U707GC6UX7


    http://garage.grumpysperformance.co...studs-bolts-rusted-in-place.11410/#post-52306

    http://garage.grumpysperformance.co...-of-busted-bolt-repair-info.11095/#post-49451

    http://garage.grumpysperformance.com/index.php?threads/removing-rusted-broken-bolts.807/#post-43181

    don,t over complicate it,its just not all that difficult.
    YEAH SOME PLASTICS AND ACETONE WON,T PLAY WELL TOGETHER, SO DON,T USE PLASTIC

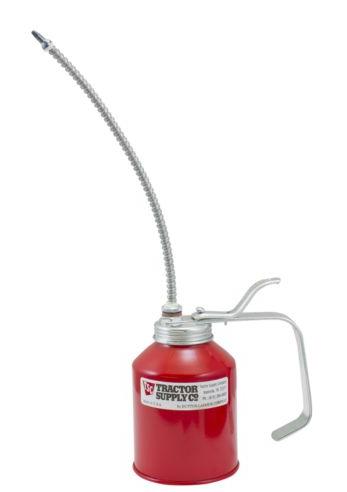

    youve got DOZENS OF OPTIONS, and MOST oil cans will not be effected with the mix and those that are ,USUALLY can be repaired with a new o-ring designed to not be effected by common solvents
    OBVIOUSLY YOULL WANT TOO,LABEL THE CAN SO YOU DON,T MIX IT UP WITH REGULAR LUBRICANT OIL

    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]


    Last edited by a moderator: Oct 16, 2020
  17. John White

    John White New Member

    Don't use easy outs. They will snap off.
    Then must remove Ford Heads & have Electron drilled out.
    Been there done that.
    Keep drilling.
    Tap clean with 8mmX 1.25 Tap.

    Good Luck.
    Need it.
    Real skill & patience required.

    https://www.drillbitlab.com/

  18. Grumpy

    Grumpy The Grumpy Grease Monkey mechanical engineer. Staff Member

Share This Page
