theres a great deal of info in the links youll want to read

http://50mustangsuperfords.automotive.c ... index.html




http://www.carcraft.com/howto/116_0609_ ... ratio.html

http://www.answers.com/topic/borg-warne ... ansmission

http://www.exoticperformanceplus.com/pe ... ?item=1117

http://en.wikipedia.org/wiki/Borg-Warne ... ansmission

http://www.drivetrain.com/parts_catalog ... l_kit.html

http://www.mustang50magazine.com/techar ... index.html

http://www.chevyhiperformance.com/techa ... index.html


http://www.popularhotrodding.com/tech/0 ... index.html

http://chevyhighperformance.automotive. ... index.html

http://www.chevyhiperformance.com/techa ... index.html

http://www.gmhightechperformance.com/te ... index.html




http://www.vetteweb.com/tech/vemp_0811_ ... index.html

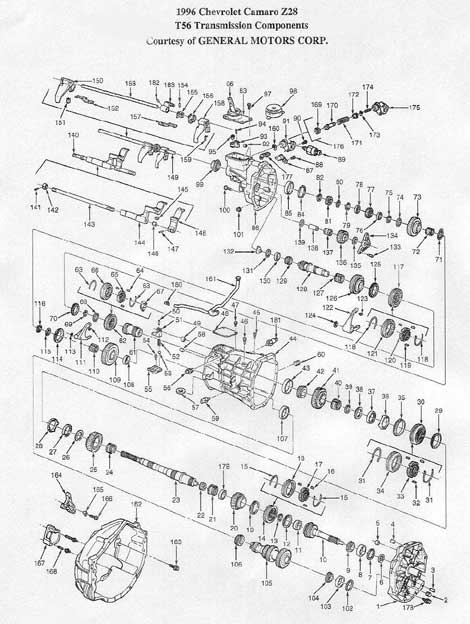

L60E to T56 conversion instructions for 1994-1997 LT-1


Writen by: Alex Afrashteh

Converting from an auto to a manual is not actually that difficult. The factory parts do fit in place, and all the wiring is basically there. These instructions should be the most concise there is on the internet. I'll break it all up to make it easier for all to use. I have a lot of pictures that can be viewed to help you with the swap - go here for pictures!

This is actually 50% of the battle. I highly recommend you buy a complete conversion kit. Places to try are http://www.speedautomotive.com, http://www.billygrahamsfirebird.com, and http://www.lambertsalvage.com. Most kits go for $1,500. Here is a list of necessary parts :

* T56 transmission, bellhousing, slave cylinder extension piece, clutch fork, fork t-stud, inspection cover, shifter, flywheel, pressure plate w/throwout bearing, clutch disk, clutch alignment tool.
* master cylinder with U-bolt, slave cylinder, reservoir
* new roller pilot bearing
* T56 tranny crossmember, tranny mount (can use A4 tranny mount - recommend LS1/1LE tranny mount)
* exhaust mount, torque arm bracket, torque arm bushing (can use A4 TA bushing)
* pedal assembly with all the switches and clip for clutch pedal
* shifter console insert (replaces automatic shifter insert)
* lower shift boot
* bolts - bellhousing to tranny, flywheel, pressure plate to flywheel, slave cylinder nuts, master cylinder U-bolt nuts, inspection cover screws, lower shift boot screws. CAGs pigtail (not necessary), VSS pigtail ("Whiteboy" tells me the new part # is 88987978, the original is 12101899), reverse lockout pigtail (12101857), reverse light pigtail (12085485). The pigtails are expensive, but necessary. Connectors for the pedals are not necessary.
* 4 quarts of Dexron III
* brake fluid if necessary

I highly recommend you get a new clutch and pressure plate. Deciding on a clutch and pressure plate combo really depends on your power levels. Clutches available are - GM stock, Centerforce, STAR, McLeod, SLP, and others. The most popular clutches right now are the Street Twin and STAR clutch Stage II and III. From what I have heard, Centerforce is junk, the Street Twin is difficult to setup, the STAR clutch can be grabby/chatter, and the SLP clutch can only handle so much power - so you can't always win. Do not forget, the flywheel most be resurfaced and balanced the same as your flexplate (or neutral balanced if you have an internally balanced/built motor).


First things first, the car must be jacked up. Get the car as high as you can, front and back. Remember, if you don't have the car high enough, you will not be able to get the automatic out from under the car! Be sure everything is very secure, you need to feel confident as you will be under the car a lot.

Inside :

* Remove both seats.
* Remove the shift knob - there is a staple in the front that must be pulled to remove it.
* Remove all the bolts, and pull the entire console assembly. The parking brake should be pulled up hard and fast to make it point straight up.
* Remove the shifter assembly (disconnect park/neutral switch connector), disconnect the shift cable to the tranny.
* Remove knee bolster and plastic piece (disconnect rear defogger connector)
* Remove steering knuckle and steering column. A bunch of wires need to be disconnected. There are three bolts in the frame and two big bolts that hold the column. There will be a plastic line with a metal wire in it that connects the shifter assembly to the steering column - this is the mechanism that prevents the key from being turned unless the car is in park - remove it.
* Remove the pedal assembly. There should be a couple electrical connections. The throttle cable is easy to get off. The brake pedal has a clip that holds the brake rod on, remove it and hold on to it.

Outside :

* Disconnect your y-pipe and O2's.
* Unbolt and remove the torque arm. If you are finding it difficult to get it out of the TA bushing, put a bolt in the differential and one in the TA. Use them to pry it out of the bushing - works like a charm.
* Unbolt the drive shaft from the pinion yoke. If you have a tranny plug, plug the auto. If you do not, leave the drive shaft in the back of the tranny.
* Remove the dust shield and unbolt all the torque converter bolts. The flexplate has to be turned to do this, use the frame/starter/whatever to turn the wheel (and hold it in place) with a large screw driver or pry bar. Push the TC into the tranny as far as it will go.
* Get a hydraulic jack underneath the pan - be sure it is placed in such as way that the weight is evenly spread and the tranny will not fall when completely disconnected. The jack should be positioned from front to back. Jack it until it relieves pressure from the tranny mount. Don't lift the car.
* Unbolt the tranny mount and remove the tranny crossmember.
* Lower the tranny a couple inches and remove all the electrical connectors and wires. Also, pull the dipstick and the tranny cooler lines.
* Lower the tranny as much as you feel comfortable. Be sure you are not damaging anything - be aware of wiring, header interference, whatever. The point here is to have access to the top four tranny bolts.
* With very long extensions and swivel joints, remove all but the easiest tranny bolts (bottom two). They can be very difficult to break, I recommend you use a long metal tube to slide over the handle of your ratchet - it will provide excellent leverage.
* Once all the bolts (but the bottom ones) are out, raise the tranny so it is almost straight - remove the last two bolts. Do not worry about it just falling, there are guide pins that will hold it together. Gently pry the tranny off the engine while keeping everything balanced. You should also hold the TC. Drop the auto as far as you can on the jack and then remove the TC (be positioned correctly, it is heavy). At this point, you will need to take the auto off the jack and lay it on the floor. Of course, keeping it straight will help prevent loss of fluid. Having cardboard on the ground helps a lot to slide it from under the frame. Congrats, one of the hardest parts is done.
* Remove the flexplate bolts and pull the flexplate. The bolts are going to be on there good, so be prepared to hold the flexplate in place and use leverage to your advantage. If you are going to use an air tool, get a perfect fit 6 point socket and be sure to be on that bolt good when you hit it.
* Do not lose the crossmember bolts, tranny to engine bolts, or flywheel bolts, they are going to be reused. Of course, getting a nice set of ARP flywheel bolts wouldn't hurt.


Inside :

* Get the manual pedals in there, it is time to cut the holes for the master cylinder and the U-bolt. Bolt the pedals down so it sits like it will when you are done. There is a template in the plastic (NOT the frame) that will help you place the pedal framing. Mine was slightly bent, so it had to be coaxed a little so the pedal framing metal would match up with the template. Once it's lined up the way you like it, drill holes for the U-bolt. Remove the pedal assembly. Look at your master cylinder and draw where you want to drill your hole. I used a 1-5/8" hole saw to cut my hole - it worked perfectly. I don't recommend removing the rubber, cut straight through it. When the cutting is done, put the pedals back in. Bolt it up tight. From the motor bay, put the master cylinder near it's place. Position the resevior so it sits properly without pinching or twisting the line. I don't recommend letting the slave cylinder hang. OK, lining up the master cylinder is a PITA. The person inside should pull the master cylinder flush while the person on the otherside places the U-bolt. You may have some luck pushing the brake booster out some by loosening the four center bolts and pulling it. Once you've got the U-bolt in, screw the nuts in to hold it in place. Take a look at it and make sure the master cylinder sits flush with the frame. The master cylinder rod should line up to the clutch pedal. If the hole was drilled correctly, there should be little gap. If there is, fill it with whatever you feel is appropriate (RTV, whatever). Attach the clutch rod - use the clip to secure it on the clutch pedal. Attach the brake rod (again, there is a clip) to the brake pedal and the throttle cable on the gas pedal. BTW, do NOT push the clutch pedal to check it out, you can damage the slave cylinder. Congrats, another milestone completed.
* It is time to cut the hole for the T56 tranny. There is a plate on the framing that needs to be partially removed. There are a couple of tack welds that need to be drilled out in order to bend the plate out of the way. You can cut it off where the three holes are. Put the bellhousing in with a couple of bolts. Get under the car, and dummy install the T56. Of course, the shifter should be removed. I recommend you use saran wrap or a towel to cover the opening in the tranny. Bolt up the tranny with a couple of the easy bolts and mount it up with the tranny mount and crossmember. At this point, you should trace a line around the shifter assembly. It does not need to be exact as the hole will need to be a bigger anyway. Once you've got the trace done, take the T56 out. From the bottom of the car, drill a couple of holes to help you guide where to make the cut - go about a 1 - 1½ inches outside of the trace you made. The reason I say this is because you need to have room for the tranny to move and not hit the frame. Get inside the car and use a sawzall, cut off wheel, or dremel to cut the hole. Be careful not to let the carpet light on fire and wear protective eyewear and clothing. At this point, I would dummy up the T56 again to be sure the hole was cut right. Use a file to clean up the rough edges and excess metal.
* Install the steering column and steering knuckle. Attach all the electrical connectors. There are two connectors near the top of the steering column that are not easy to see when the column is in. This is the ignition box, don't forget to plug it in!

Outside :

* Install the flywheel, clutch, pressure plate and pilot bearing. With a rubber mallet and socket that fits right around the lip of the pilot bearing, install the bearing into the crank. Be sure the flat side goes into the crank and the beveled side is toward the tranny (a gentleman named Brian emailed me to let me know that he installed his backwards and it seized up). It should be flush with the crank when it is fully in. Try not to touch the inside, it has grease in it. My mechanic told me the amount that it comes with is not enough and more should be added. Line-up the flywheel and start all of the bolts by hand - get them in as far as you can with your fingers, then tighten them hand tight in star formation. While someone holds the flywheel with a pry bar, torque the bolts in a star formation to spec (74 lb/ft). Clean the flywheel and pressure plate surface with brake cleaner to remove residue and finger marks. The clutch disk has a flat side and a side that sticks out. The side that sticks out goes toward the engine. Hold the clutch disk in place, and put the pressure plate on. Line up the holes and put in all the pressure plate bolts finger tight. Use the clutch alignment tool to center the clutch. Tighten all the bolts hand tight in a star formation, then torque them to spec (22 lb/ft). The pressure plate fingers will look straight when you are done.
* Install the T56. Bolt the bellhousing up and tighten all the bellhousing bolts. Be sure to have the fork t-stud and fork on the tranny. Pull the fork away from the tranny so it will be out of the TO bearings way. Get the tranny on the jack and line things up. This part is a PITA. Get the tranny on the bellhousing. You will need about an inch of spacing to put the fork on. When it is close, push the fork in and be sure it is around the TO bearing. This is a good time to install the slave cylinder. Push the slave cylinder rod in with your hand until it retracts. Put the rod ball into the fork and put the slave cylinder in place. This needs to be done somewhat quickly as the slave cylinder will start to extend again. If done correctly, the fork will stay in place and the slave cylinder ball will be on the fork. Pull the tranny together and put a couple of easy bolts in. Bolt up the T56, mount, crossmember, and inspection shield. I would highly recommend you cut the inspection cover so you don't have to remove the starter to install it. If you need to use the tranny bolts to pull the tranny together, be sure to do this evenly. Note that the top bolts are difficult to get to and will require long extensions and swivel joints. Remove the fill plug and pour tranny fluid where the shifter would be. Make sure the rear of the tranny is plugged with either a plug or drive shaft otherwise it will leak out the back. It should take about 3.5 quarts to fill. When it's filled, install the fill plug and bolt the shifter up to protect the tranny. Congrats, that was the last major milestone.
* Time to test the assembly on the jacks. Install the drive shaft and bolt it up to the pinion yoke. Temporarily install your y-pipe so the car isn't so loud. Inside, temporarily connect the 12 gauge brown and yellow wires together (the park/neutral wire pack near the shifter console). With the clutch in and the tranny in neutral, turn the car on. You should be able to shift into any gear (reverse should be difficult) with the same ease as when the engine was off. If it is difficult to put in gear, the clutch is not fully disengaging. Turn the car off - the system more than likely needs to be bled. Also listen to see if the starter is working properly. If not, it may need to be shimmed. If everything is OK, try putting it in first gear and letting the tires spin. If all is well, shut her down. NOTE - I wrote this part, but I did not do it because I felt a little uncomfortable jacking the pumpkin up while the car was on jackstands. I ended up just putting the car down and testing it after everything was installed (leap of faith). Do whatever you feel comfortable doing.
* Install the torque arm and be sure the exhaust is hooked up and tightened. Don't forget the O2 sensor wires.
* The tranny cooler line plugs need to be plugged in the radiator. What we did was cut the tranny lines and use them to plug the holes. Whatever will work. You could probably even leave them alone if you wanted to.
